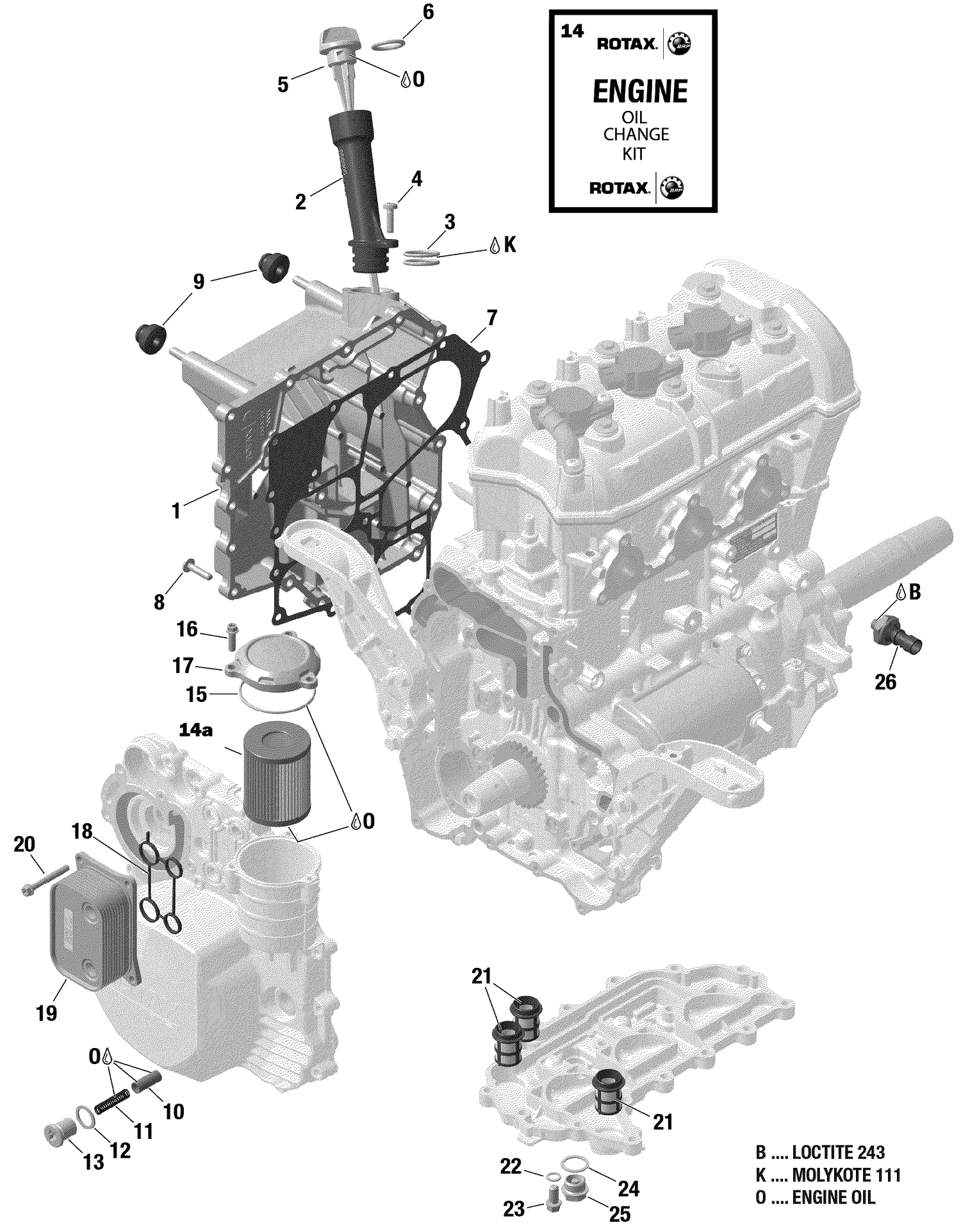

01- Rotax - Engine Lubrication - 900 ACE
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420656708 | Oil Sump Cover This part replaces 420656706. |
| 2 | 420656905 | Oil Filler Tube |
| 3 | 420430440 | O-Ring |
| 4 | 420441383 | Torx Flange Screw M6 X 20 |
| 5 | 420856664 | Oil Level Tube |
| 6 | 420631640 | O-Ring |
| 7 | 420431848 | Oil Sump Cover Gasket This part replaces 420431840. |
| 8 | 420841548 | Torx Flange Screw M6 X 25 |
| 9 | 420860150 | Rubber Grommet |
| 10 | 420256591 | Pressure Regulating Piston This part replaces 420256518. |
| 11 | 420239445 | Spring |
| 12 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 13 | 420441373 | Plug Screw |
| 14 | 9779299 | Ryker Oil Change Kit 5W40 900CC |
| 14a | 420956123 | Oil Filter |
| 15 | 420230923 | O-Ring This part replaces 420230920. |
| 16 | 420440207 | Torx Flange Screw M6 X 20 |
| 17 | 420612135 | Oil Filter cover |
| 18 | 420431871 | Gasket This part replaces 420431870. |
| 19 | 420656698 | Oil Water Heat Exchanger |
| 20 | 420440324 | Torx Flange Screw M6 X 45 |
| 21 | 420656680 | Oil Sieve |
| 22 | 420950141 | Sealing Ring |
| 23 | 420440852 | Torx Flange Screw M8 X 16 |
| 24 | 420552280 | Crush Washer |
| 25 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
