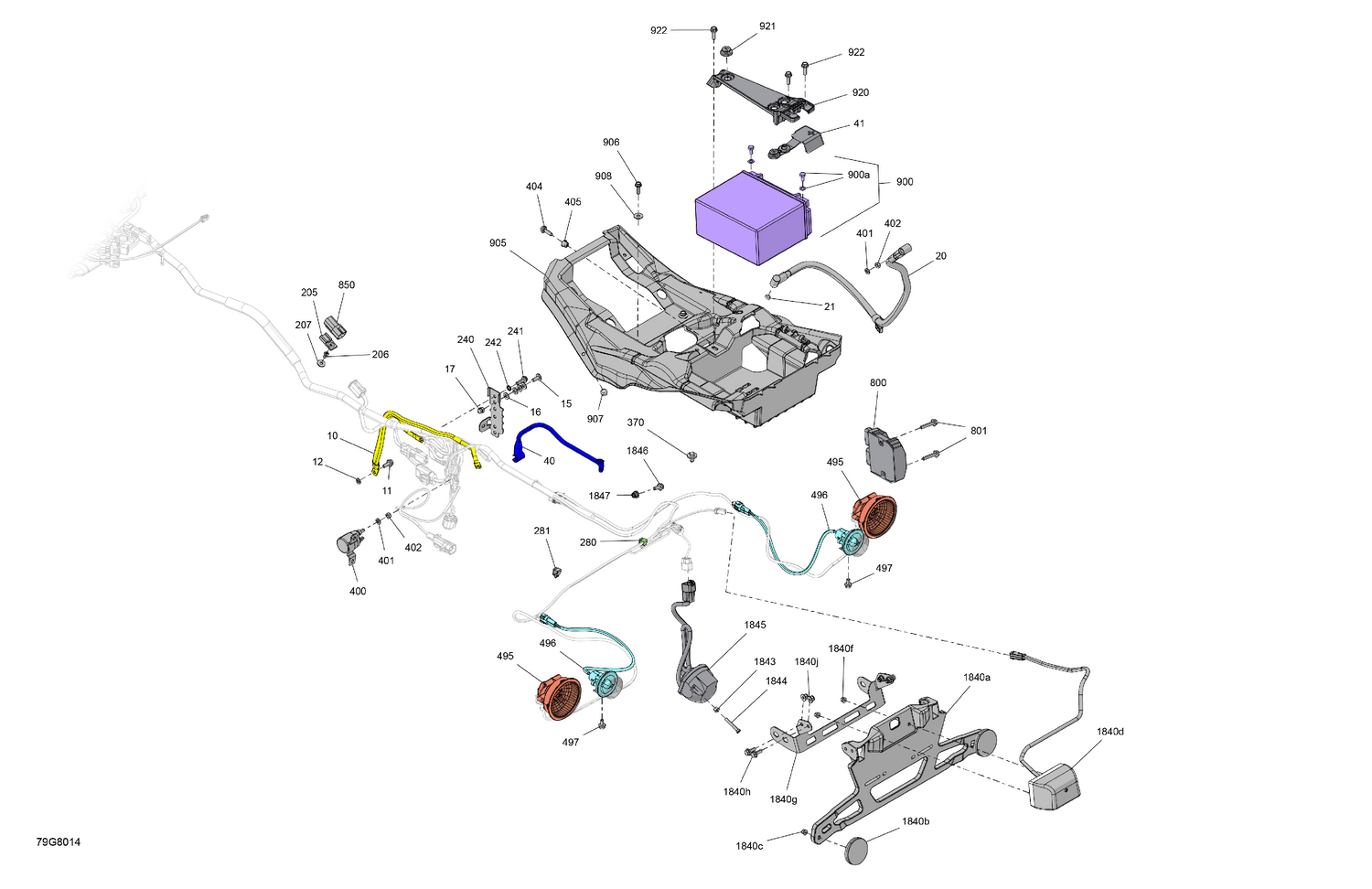

08- Electric - Rear Section
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 40 | 710004376 | Positive Cable |
| 41 | 710006729 | Battery Cable Cap |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 370 | 293730040 | Mount Dart |
| 400 | 710007777 | Starter Relay |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 495 | 710001645 | Tail Light Ass'y |
| 496 | 710002964 | Flasher |
| 497 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 800 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 801 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710006561. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1840a | 708300434 | Plate Support |
| 1840b | 705011221 | Red Reflector |
| 1840c | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1840d | 710005563 | License Plate Light |
| 1840f | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1840g | 710009520 | License Plate Support |
| 1840h | 207661644 | Hex. Flange Screw M6 X 16 |
| 1840j | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1843 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
| 1845 | 710005846 | Trailer Harness |
| 1846 | 207661644 | Hex. Flange Screw M6 X 16 |
