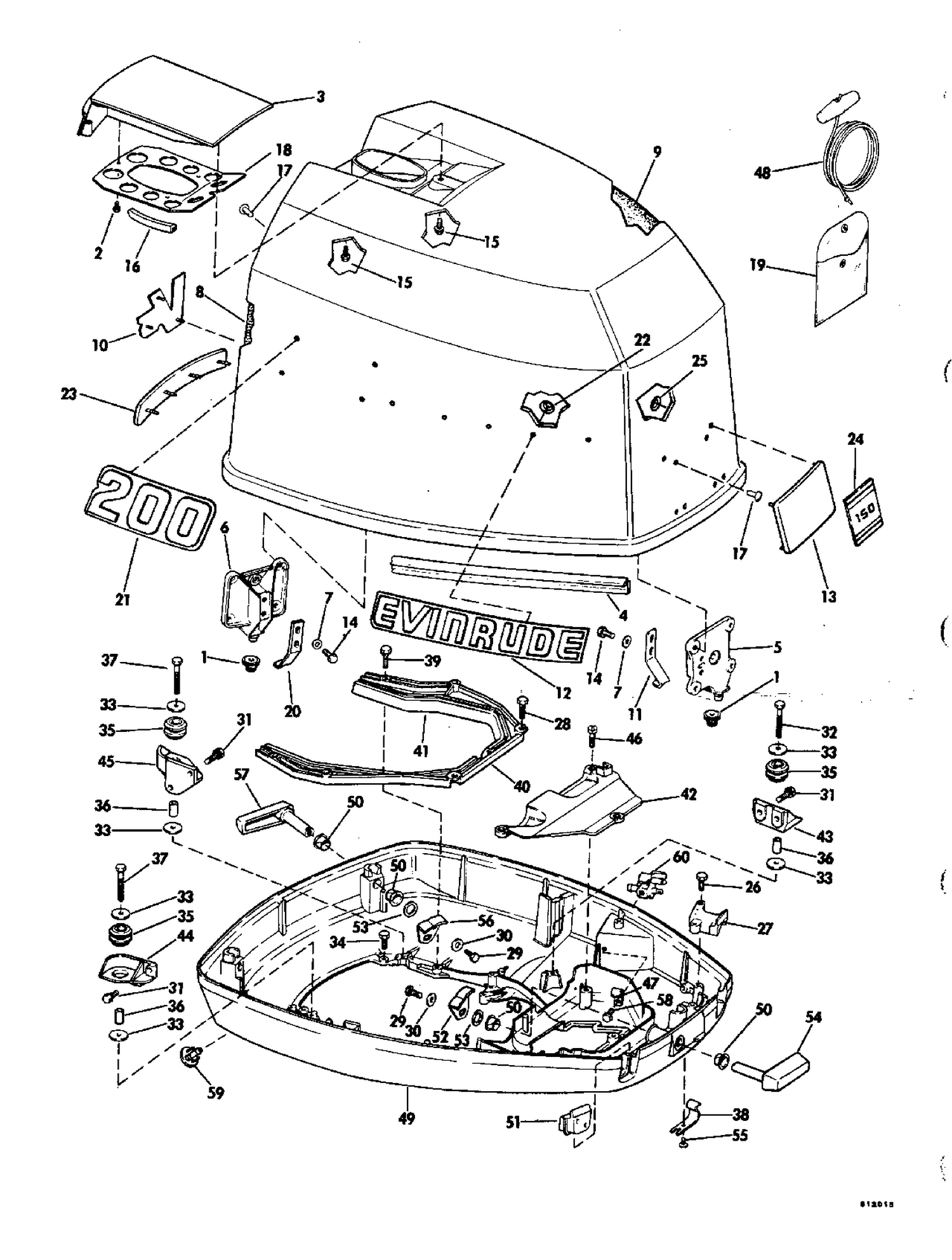

| Ref | Part Number | Description |
|---|
| 4 |
0328686 |
SEAL, Engine cover This part replaces 0208171. |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0389972. |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 8 |
0334853 |
SOUND BLANKET, Side This part replaces 0208954. |
| 9 |
0209445 |
SOUND BLANKET, Top |
| 10 |
0209215 |
APPLIQUE, Rear |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 12 |
0209216 |
APPLIQUE, Evinrude, stbd.& port. |
| 13 |
0209214 |
APPLIQUE, Front |
| 16 |
0208492 |
SEA:. TILT HANDLE |
| 18 |
0206520 |
AIR INLET BAFFLE |
| 19 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 21 |
0209218 |
APPLIQUE |
| 21 |
0209220 |
APPLIQUE |
| 21 |
0209222 |
APPLIQUE |
| 21 |
0209224 |
APPLIQUE |
| 23 |
0209217 |
APPLIQUE,Evinrude,rear |
| 24 |
0209219 |
PLATE,Applique,front |
| 26 |
0307151 |
SCREW |
| 27 |
0318849 |
CLAMP, Instrument cable |
| 28 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 29 |
0552062 |
SCREW, Clamp |
| 31 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 32 |
0303398 |
VIS, support This part replaces 0302030. |
| 34 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 35 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 36 |
0302406 |
SLEEVE |
| 37 |
0303398 |
VIS, support This part replaces 0302030. |
| 38 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 39 |
0302288 |
BOLT |
| 40 |
0392494 |
FRAME AND SEAL ASSY |
| 41 |
0318258 |
SEAL Cover |
| 42 |
0328358 |
COVER ASSY. Air entrance This part replaces 0326251. |
| 43 |
0315111 |
SUPPORT, Front |
| 44 |
0315113 |
SUPORT, Stbd, rear |
| 45 |
0315112 |
SUPPORT, Port rear |
| 46 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 48 |
0378347 |
CORDE DE LANCEUR |
| 49 |
0434288 |
ENGINE COVER, Lower This part replaces 0389591. |
| 51 |
0320834 |
GROMMET |
| 52 |
0323170 |
HOOK Front and stbd., rear |
| 54 |
0383641 |
LATCH HANDEL ASSY., Front |
| 55 |
0310539 |
SCREW, Clamp choke solenoid |
| 56 |
0323169 |
HOOK, Lower rear port |
| 57 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 58 |
0325857 |
SCREW, Fuel connector |
| 59 |
0321885 |
NIPPLE |
| 60 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 0281732 |
0281732 |
MOTOR COVER ASSY., 150 |
| 0281733 |
0281733 |
MOTOR COVER ASSY., 175 |
| 0281734 |
0281734 |
MOTOR COVER ASSY., 200 |
| 0281735 |
0281735 |
MOTOR COVER ASSY., 235 |
| 0281870 |
0281870 |
DECAL SET |
| 0281895 |
0281895 |
DECAL SET |
