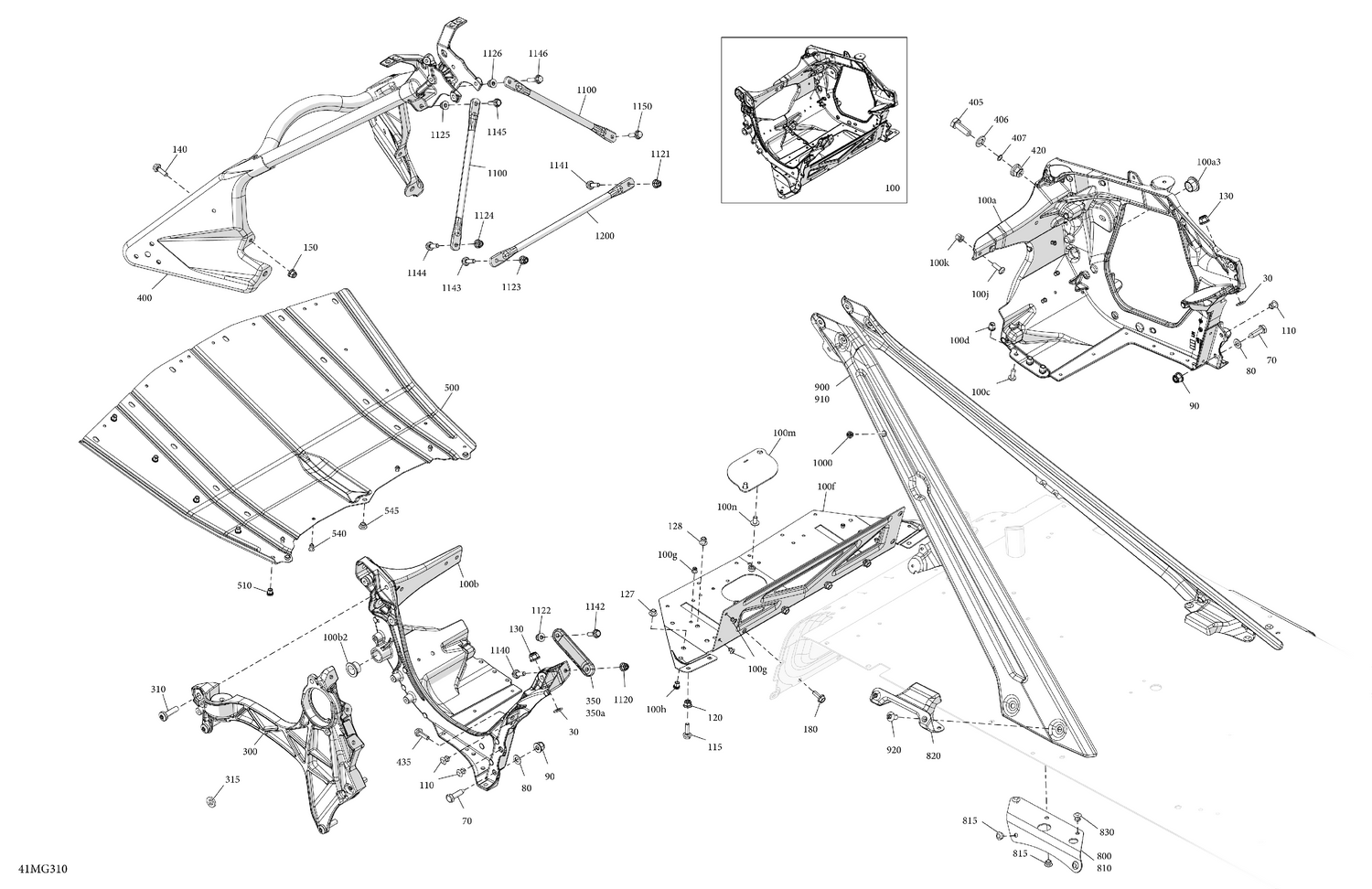

| Ref | Part Number | Description |
|---|
| 30 |
234081410 |
Flat Washer 8 mm |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100k |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100m |
518329454 |
Oil Plate |
| 100n |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 127 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 128 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 300 |
518337459 |
LH Brace Ass'y |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 315 |
250200157 |
Conical Spring Washer M8 |
| 350a |
518331741 |
LH Front Chassis Reinforcement |
| 400 |
518337716 |
Chassis Suspension Module |
| 405 |
250001148 |
Screw Hex M10 X 30 |
| 406 |
234001410 |
Flat Washer 10 mm |
| 407 |
505072448 |
O-Ring |
| 420 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 435 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 500 |
518331615 |
Front Bottom Plate |
| 510 |
293450268 |
Insert M5 X 0.8 |
| 540 |
293150314 |
Rivet Ornit 4,8 X 14,3 |
| 545 |
293150271 |
Rivet Ornit 6,5 X 10.5 |
| 800 |
518337533 |
LH Under Chassis Reinforcement |
| 810 |
518337534 |
RH Under Chassis Reinforcement |
| 815 |
293150325 |
Rivet Ornit 6,5 X 12.5 |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 900 |
518336213 |
Deep Black, LH Rear Diagonal Cross Member |
| 910 |
518336214 |
Deep Black, RH Rear Diagonal Cross Member |
| 920 |
250001376 |
Screw-Torx Truss M8 X 12 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1121 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1122 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1123 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1124 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1125 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1126 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1141 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1142 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1143 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1144 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1145 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1146 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562056 |
Hex. Flange Screw M6 X 20 |
