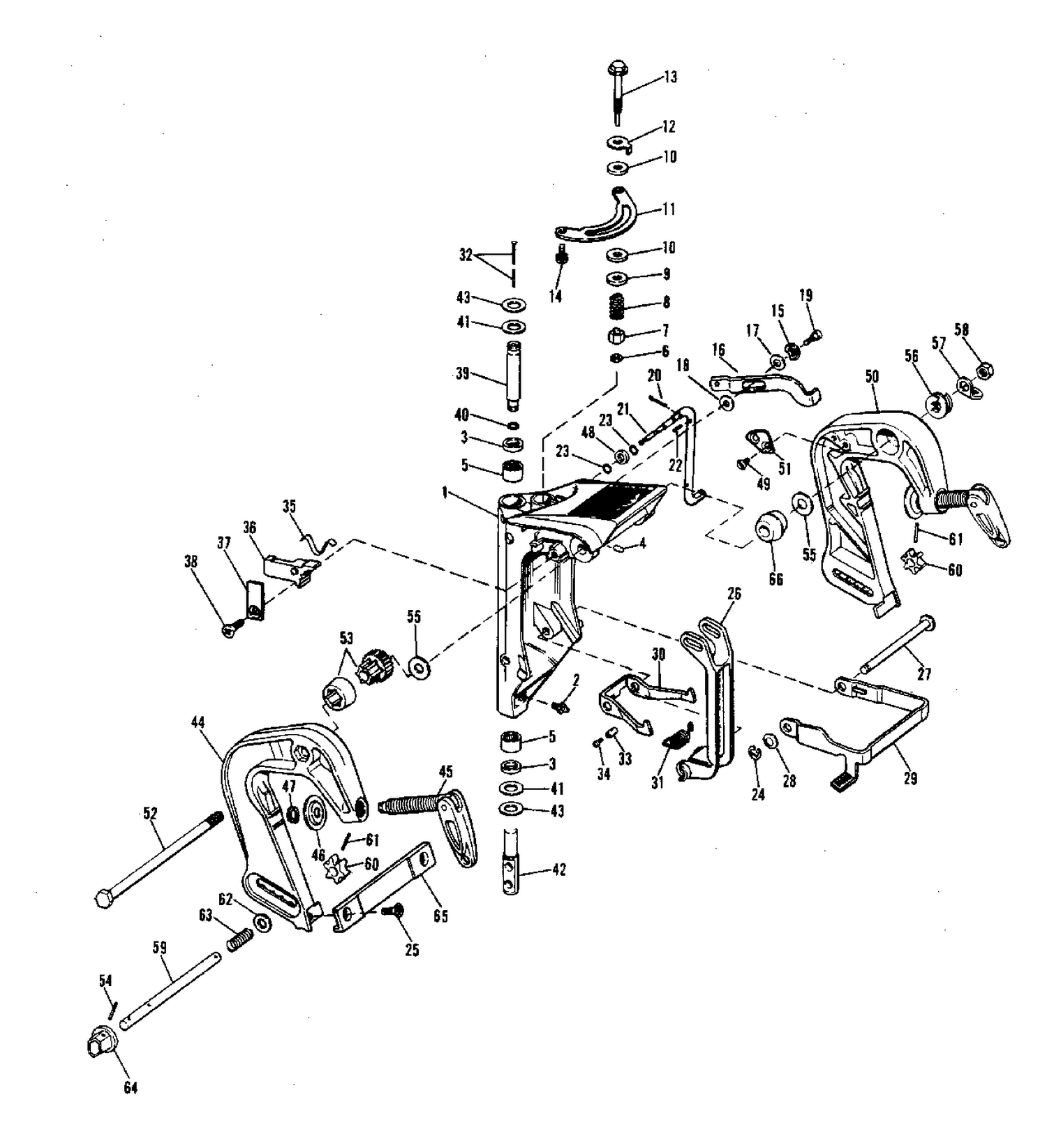

| Ref | Part Number | Description |
|---|
| 1 |
0380953 |
SWIVEL BRACKET ASSY |
| 3 |
0309713 |
SEAL, Swivel bracket |
| 5 |
0379167 |
BEARING, Swivel bracket |
| 6 |
0309777 |
SEAL, Steering friction |
| 7 |
0309831 |
NUT, Steering friciton screw |
| 8 |
0309825 |
SPRING, Steering friction |
| 9 |
0309721 |
WASHER, Lower |
| 10 |
0309723 |
PAD, Friction |
| 11 |
0309735 |
PLATE STEERING FRICTION |
| 12 |
0309718 |
WASHER, Top |
| 13 |
0309717 |
SCREW, STEERING FRICTION |
| 14 |
0310093 |
SCEW, Plate, steering friction |
| 15 |
0510412 |
BOW WASHER |
| 16 |
0312090 |
SELECTOR, Tilt lock |
| 17 |
0303887 |
WASHEER, Pin to swivel bracket |
| 18 |
0312087 |
WASHER, Bracket to selector |
| 19 |
0310072 |
SHOULDER SCREW, Selcetor |
| 21 |
0380952 |
ROD & PIN ASSY., Tilt lock |
| 22 |
0307901 |
ROLL PIN |
| 24 |
0310095 |
E-RING, Small |
| 25 |
0308684 |
SCREW, Cover to housing |
| 26 |
0309732 |
HANDLE, Carring |
| 27 |
0310068 |
PIVOT PIN, Locking lever |
| 28 |
0309750 |
RONDELLE, ressort - Tige soupape d'échappement |
| 29 |
0310098 |
LINK, Shallow water drive |
| 30 |
0309820 |
LEVER, Locking, reverse lock |
| 31 |
0309837 |
SPRING, REVERSE LOCK |
| 32 |
0310079 |
WIRE, Lever to reverse lock |
| 33 |
0385958 |
CLAMP & SC R.,Casing guide This part replaces 0303219. |
| 34 |
0301963 |
SCREW, Clamp, wire |
| 35 |
0310070 |
SPRING, Ratchet |
| 36 |
0310090 |
RATCHET, Swivel bracket |
| 37 |
0310182 |
PLATE, Ratchet retainer |
| 38 |
0308684 |
SCREW, Cover to housing |
| 39 |
0309734 |
SHAFT, Steering pivot, upper |
| 41 |
0309722 |
THRUST WASHER, Inner |
| 42 |
0310077 |
SHAFT, Steering pivot, lower |
| 43 |
0310071 |
THRUST WASHER, Inner |
| 44 |
0380215 |
STERN BRACKET ASSY., starboard |
| 45 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0377311. |
| 49 |
0310096 |
SCRE, Throttle link |
| 50 |
0380954 |
STERN BRACKET ASSY., Port (Incl, item 45) |
| 51 |
0310067 |
ANCHOR PLATE, Port |
| 52 |
0309719 |
BOLT, Tilting |
| 53 |
0380133 |
CONE & RATCHET WHEEL |
| 55 |
0309773 |
WASHER, Tilting bolt |
| 56 |
0302051 |
SPRING Tilting bolt |
| 57 |
0300364 |
LINK, Conical, tilt shaft |
| 59 |
0310069 |
ROD, Tilt adjustment |
| 60 |
0310064 |
PINION, Tilt adjustment |
| 62 |
0306433 |
WASHER |
| 63 |
0310076 |
SPRING, Knob, tilt adjustment |
| 64 |
0310089 |
KNOB, Tilt adjusting |
| 65 |
0309738 |
PLATE STERN BRACKET |
