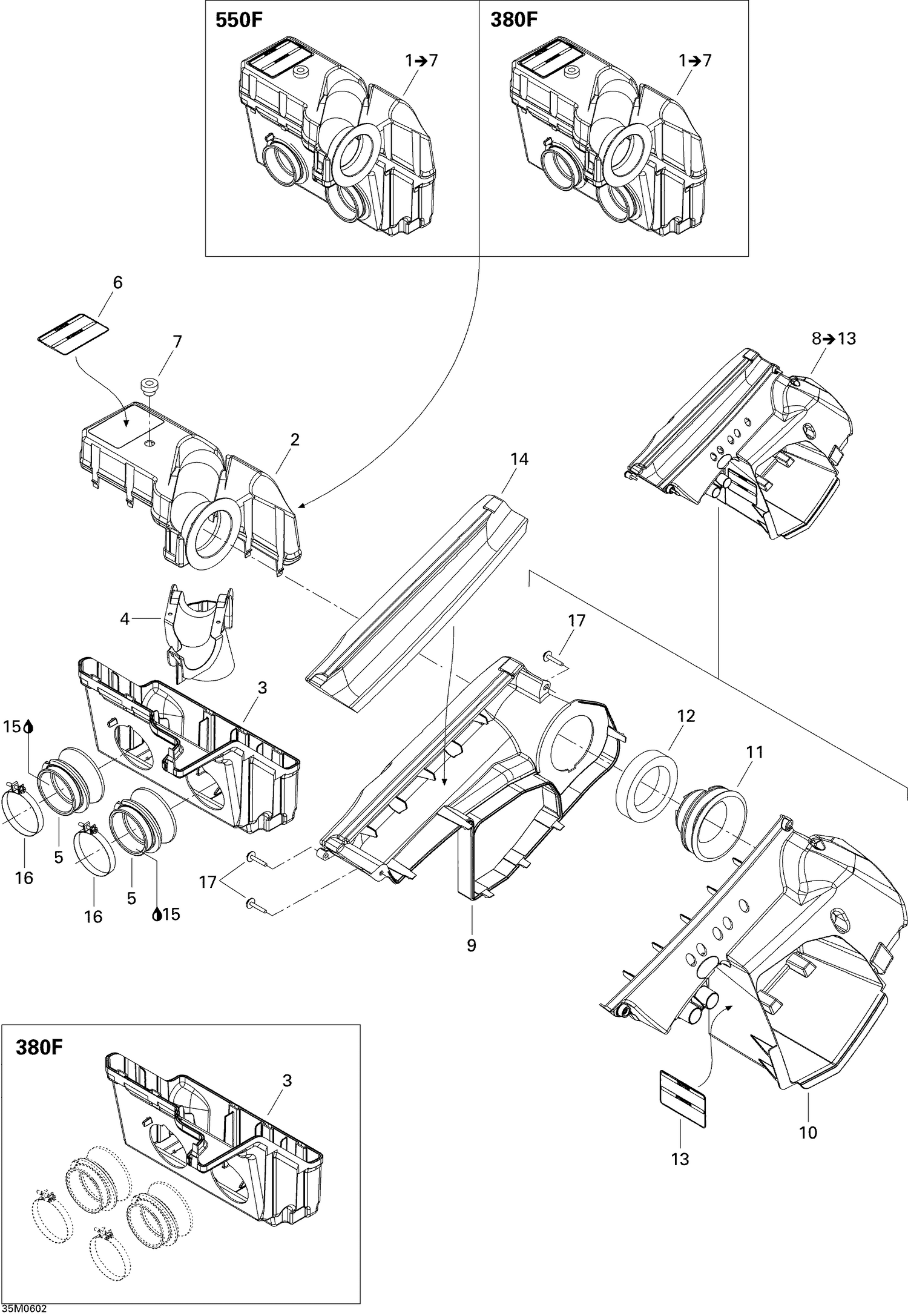

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Upper Shell |
| 4 |
Not |
Available As Spare Part - Baffle |
| 5 |
Not |
Available As Spare Part - Air Adaptor |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 7 |
513032908 |
Grommet |
| 9 |
Not |
Available As Spare Part - Air Intake Duct |
| 10 |
Not |
Available As Spare Part - Outer Shell |
| 11 |
508000240 |
GUIDE - Call your local BRP dealership |
| 12 |
508000199 |
OUTER FOAM - Call your local BRP dealership |
| 13 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 14 |
508000394 |
Air Filter |
| 15 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 15 |
779120 |
Huile minérale 2T Premium pour motoneige This part replaces 413803000. |
| 15 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 16 |
508000344 |
GEMI CLAMP - Call your local BRP dealership |
