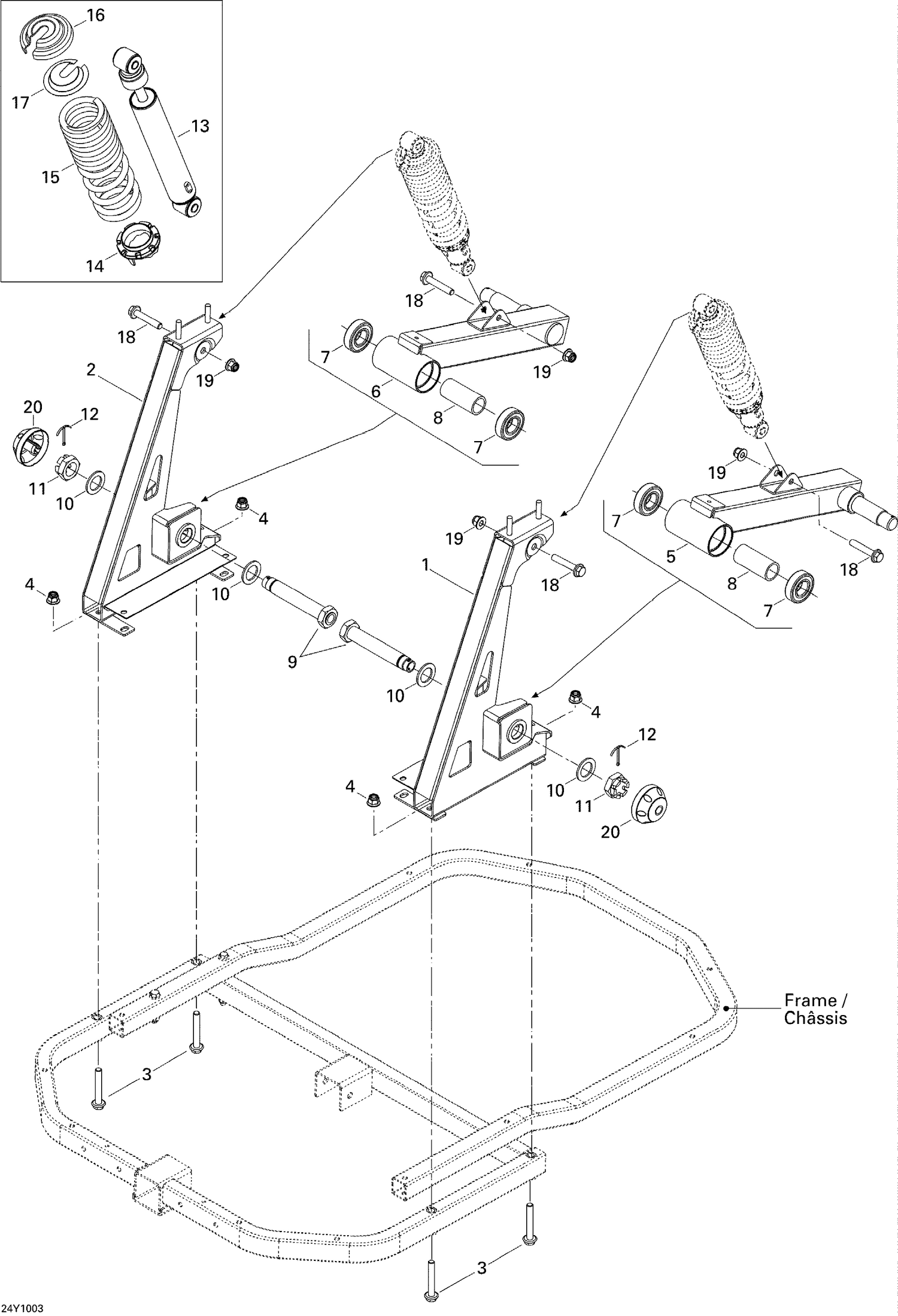

07- Suspension, Front
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706201070 | LH Pivot |
| 2 | 706201072 | RH Pivot |
| 3 | 207606536 | Hex. Flange Screw M10 X 65 This part replaces 207606546. |
| 4 | 233201434 | Hex. Flange Elastic Nut M10 |
| 5 | 706200979 | LH Swing Arm |
| 6 | 706200980 | RH SWING ARM - Call your local BRP dealership |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 705400909 | SPACER - Call your local BRP dealership |
| 9 | 706201074 | PIVOT SHAFT - Call your local BRP dealership |
| 10 | 250200093 | FLAT WASHER - Call your local BRP dealership |
| 11 | 250100006 | HEX. CASTELLATED NUT M24 - Call your local BRP dealership |
| 12 | 250400047 | Cotter Pin |
| 13 | 706201055 | Shock |
| 14 | 706002356 | Adjuster Ring This part replaces 706000294. |
| 15 | 706201056 | Full Moon Spring |
| 16 | 706200881 | Spring Stopper |
| 17 | 706200785 | Cap |
| 18 | 207605534 | Hex. Flange Screw |
| 19 | 233201414 | Hex. Flange Elastic Nut M10 |
