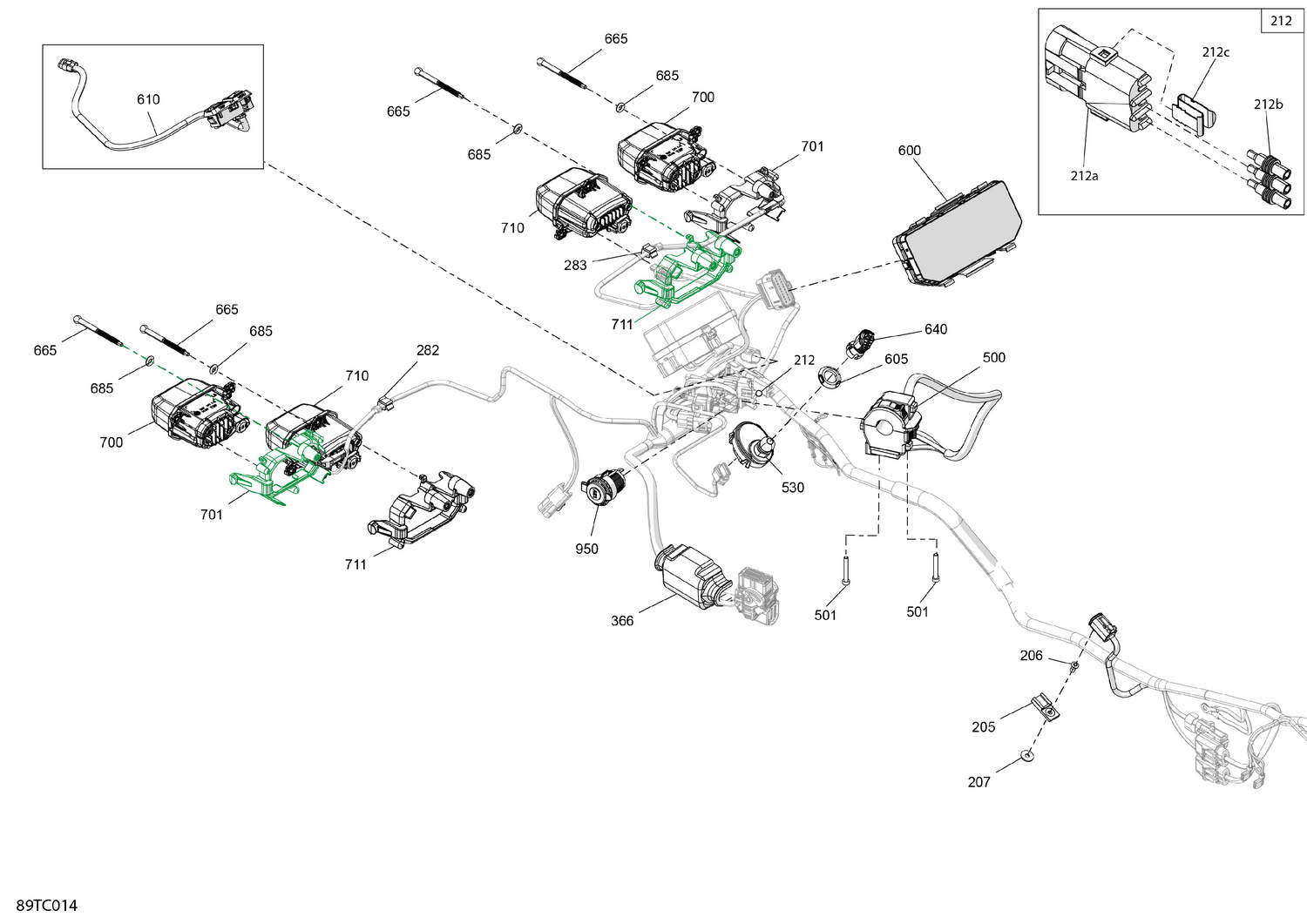

08- Electric - Front Section
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 366 | 710007255 | Soft Protection Sleeve |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 515179240 | Terminal Dess One-Wire |
| 600 | 710005253 | Multifunction Gauge |
| 605 | 278002963 | Safety Nut (DESS Switch) |
| 610 | 710008638 | Multifunction Switch |
| 640 | 710004964 | Grey Key RFID |
| 665 | 710005837 | Ajustment Screw |
| 685 | 293300192 | O-Ring |
| 700 | 710008088 | Low Beam Light |
| 701 | 710008396 | Exterior Headlight Support |
| 710 | 710006910 | HIgh Beam Light |
| 711 | 710008394 | Interior Headlight Support |
