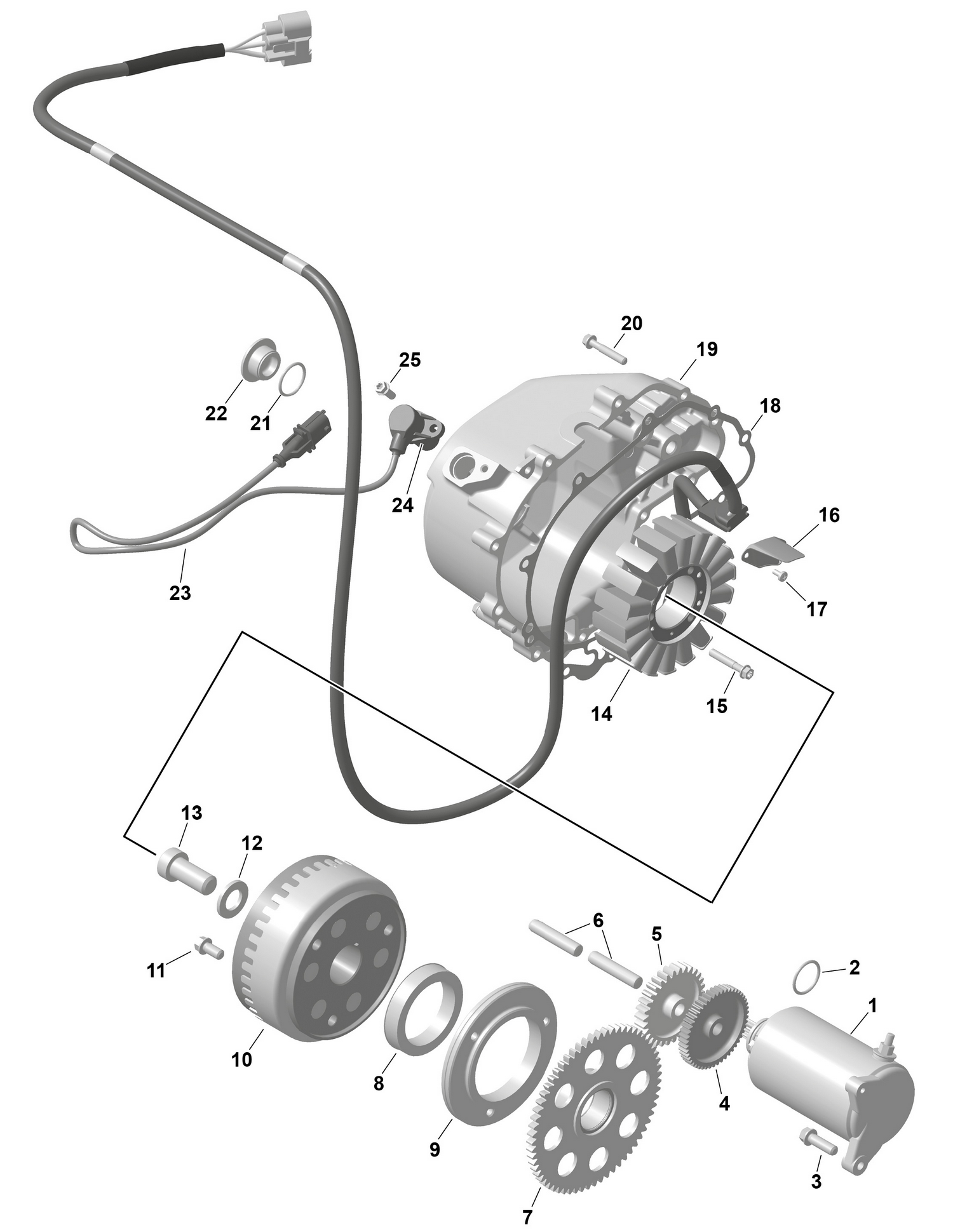

01- ROTAX - Magneto and Electric Starter
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420440372 | Torx Flange Screw M8 X 25 |
| 4 | 420634741 | Starter Double Gear 11/49 T |
| 5 | 420634605 | Starter Intermediate Gear, 30 Teeth |
| 6 | 420229302 | Location Pin 10 M6x50 |
| 7 | 420434235 | Free Wheel Gear, 64 Teeth |
| 8 | 420659113 | Sprag Clutch |
| 9 | 420659263 | Sparg Clutch Housing |
| 10 | 420685704 | Flywheel With Trigger Wheel 650W |
| 11 | 420440854 | Torx Flange Screw M8 X 16 |
| 12 | 420627270 | Shim |
| 13 | 420241549 | Socket Head Screw M16 X 35 |
| 14 | 420685923 | Stator Ass'y |
| 15 | 420440647 | Torx Flange Screw M6 X 30 |
| 16 | 420251889 | Interior Cable Support Ass'y |
| 17 | 420240196 | Phillips Screw M4 X 8 |
| 18 | 420651203 | Gasket This part replaces 420651201. |
| 19 | 420212225 | Ignition Cover |
| 20 | 420440274 | Torx Flange Screw M6 X 35 |
| 22 | 420241633 | Plug Screw M24X 1.5 |
| 24 | 420431580 | O-Ring |
