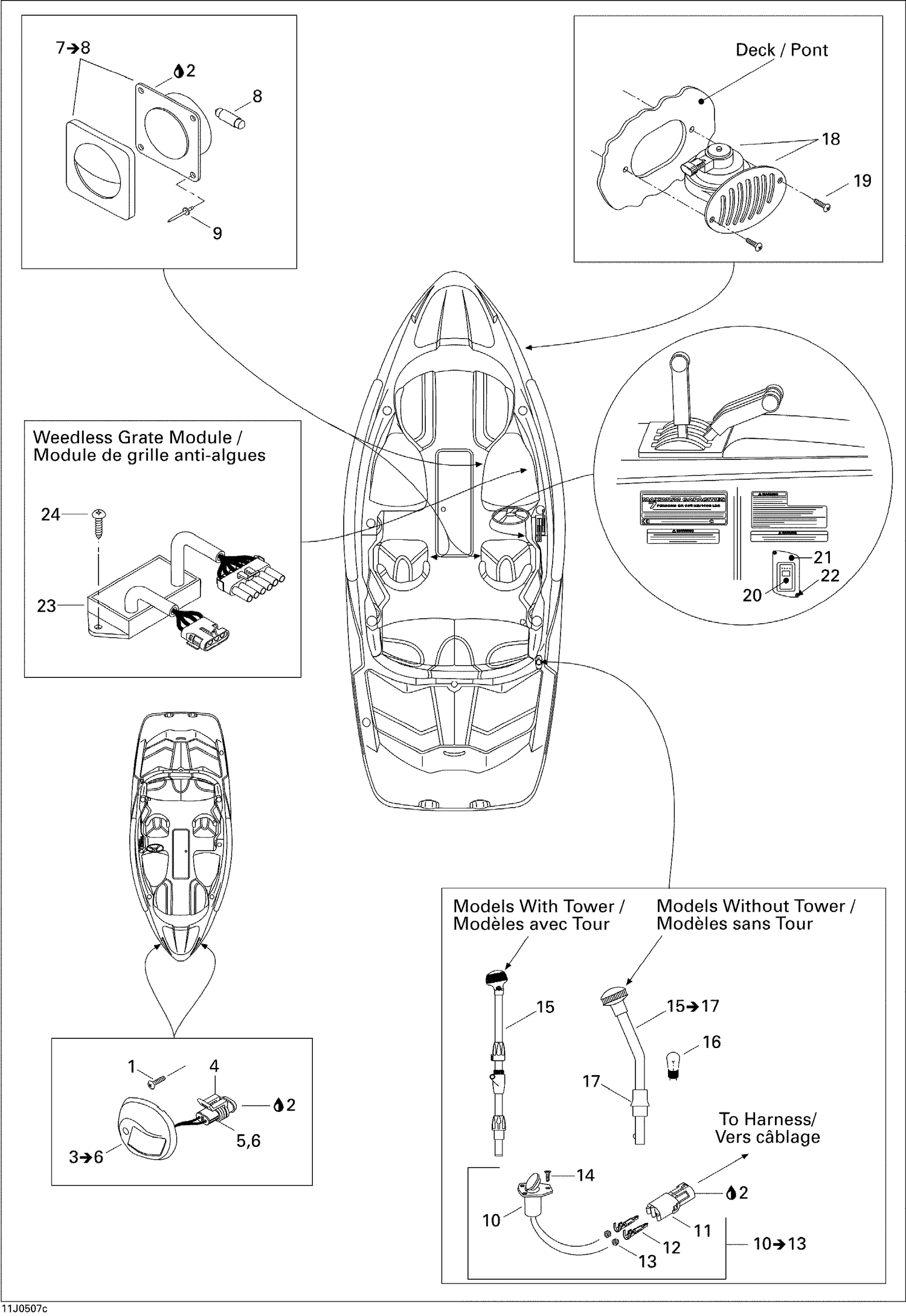

10- Electrical Accessories 3
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 2 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 4 | 409209500 | Female Housing, 2 Circuits |
| 5 | 278001014 | Female Terminal |
| 6 | 278001013 | Wire Seal |
| 8 | 204470081 | BULB - Call your local BRP dealership |
| 9 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 11 | 278000217 | Female Housing, 2 Circuits |
| 12 | 278000222 | Male Terminal |
| 13 | 278000218 | Wire Seal |
| 14 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 15 | 204470817 | Rear Lamp Pole 62" |
| 18 | 204470801 | HORN - Call your local BRP dealership |
| 19 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 20 | 204470858 | Weedless Switch |
| 21 | 204470998 | Switch Panel |
| 22 | 250000090 | TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 23 | 204470887 | Weedless Grade Module |
