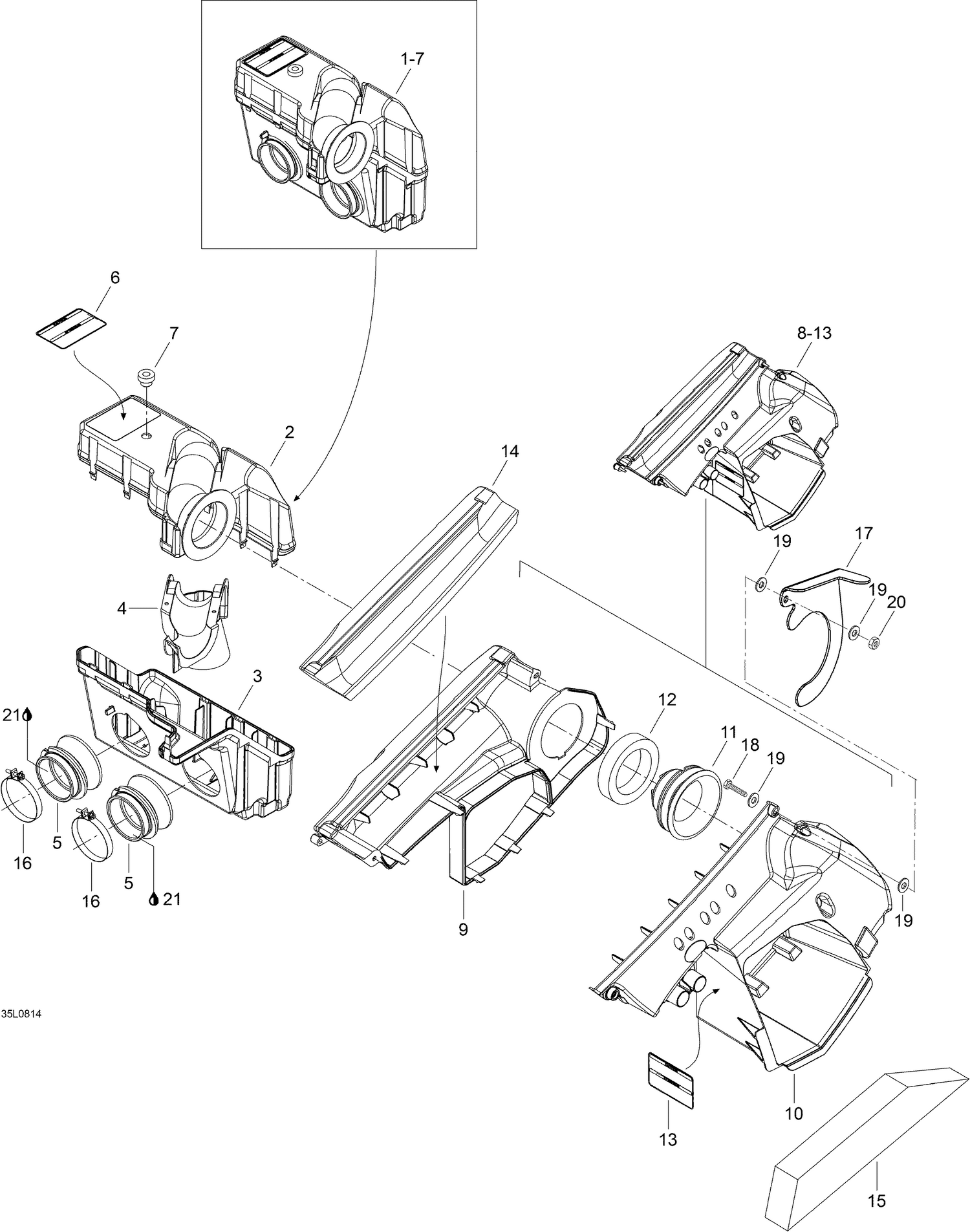

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Upper shell |
| 3 |
Not |
Available As Spare Part - Lower shell |
| 4 |
Not |
Available As Spare Part - Baffle |
| 5 |
Not |
Available As Spare Part - Air adaptor |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 7 |
513032908 |
Grommet |
| 9 |
Not |
Available As Spare Part - Air intake duct |
| 10 |
Not |
Available As Spare Part - Outer shell |
| 11 |
508000240 |
GUIDE - Call your local BRP dealership |
| 12 |
508000199 |
OUTER FOAM - Call your local BRP dealership |
| 13 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 14 |
605254301 |
Filter |
| 15 |
605354029 |
Filter |
| 16 |
508000344 |
GEMI CLAMP - Call your local BRP dealership |
| 17 |
605351817 |
Bracket |
| 18 |
40083 |
Screw M6 x 30 |
| 19 |
20003 |
Washer A6,4 |
| 20 |
33010 |
Lock Nut M6 (1=10Pcs) |
