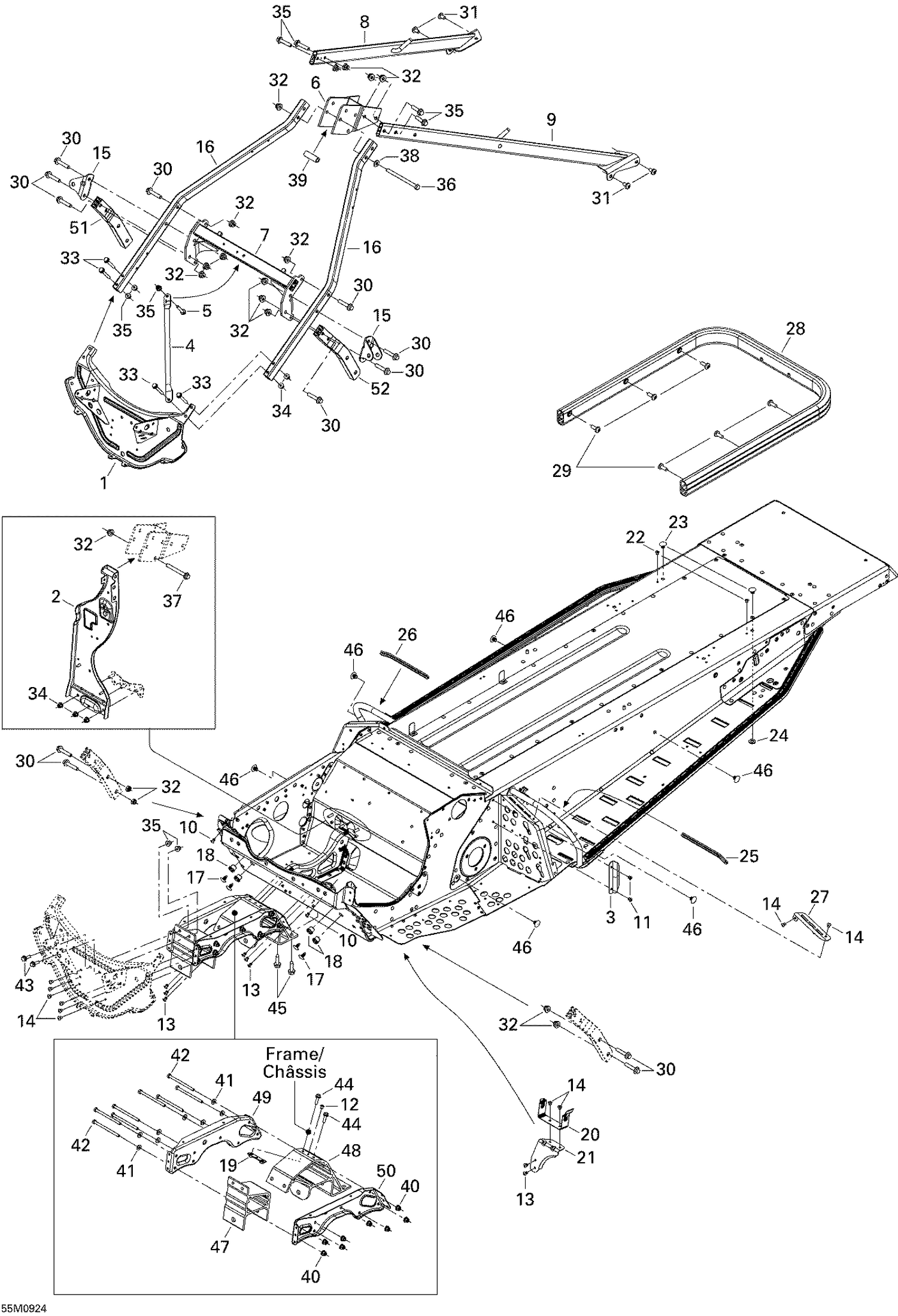

| Ref | Part Number | Description |
|---|
| 1 |
518324216 |
FRONT PLATE - Call your local BRP dealership |
| 2 |
518325212 |
UPPER COLUMN SUPPORT - Call your local BRP dealership |
| 3 |
518317504 |
CABLE PROTECTOR - Call your local BRP dealership |
| 4 |
518324988 |
BRACE - Call your local BRP dealership |
| 5 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 6 |
518324196 |
BRACKET BLOCK - Call your local BRP dealership |
| 7 |
518325150 |
Upper Cross Member |
| 8 |
518324480 |
RH MEMBER - Call your local BRP dealership |
| 9 |
518325193 |
LH Member |
| 10 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 11 |
390402200 |
Pop Rivet 3/16" |
| 12 |
390402300 |
Pop Rivet 3/16" |
| 13 |
390909100 |
Avex Rivet |
| 14 |
390909200 |
Avex Rivet |
| 15 |
518324202 |
SHOCK BRACKET - Call your local BRP dealership |
| 16 |
518325074 |
UPPER TUBE - Call your local BRP dealership |
| 17 |
414644300 |
Black, Dart |
| 18 |
293450166 |
Insert |
| 19 |
518324204 |
HOLDER PLATE - Call your local BRP dealership |
| 20 |
518322726 |
GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 21 |
518324439 |
BELT GUARD SUPPORT - Call your local BRP dealership |
| 22 |
390402400 |
Pop Rivet 3/16" |
| 23 |
390406500 |
Pop Rivet 3/16" |
| 24 |
517124300 |
Washer |
| 25 |
219704353 |
Was 271000110 Protection Trim |
| 26 |
219704353 |
Was 271000110 Protection Trim |
| 27 |
518323105 |
PLATE, BLACK - Call your local BRP dealership |
| 28 |
518325215 |
Rear Bumper |
| 29 |
236282084 |
Hex. Screw M8 X 20 |
| 30 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 31 |
250000887 |
Pan Head Torx Screw M8 X 12 This part replaces 250000154. |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 35 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 36 |
230081044 |
HEX. SCREW M8 X 110 - Call your local BRP dealership |
| 37 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 38 |
503189157 |
Washer |
| 39 |
506150500 |
Housing Bushing |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 41 |
250200039 |
Flat Washer |
| 42 |
207069044 |
Hex. Screw M6 X 90 |
| 43 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 44 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 45 |
250000257 |
Cone Screw, M8 X 30 |
| 46 |
518321954 |
Panel Fastener |
| 47 |
518324019 |
FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership |
| 48 |
518324020 |
REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership |
| 49 |
518324014 |
RH LATERAL REINFORCEMENT - Call your local BRP dealership |
| 50 |
518324017 |
LH LATERAL REINFORCEMENT - Call your local BRP dealership |
| 51 |
518324214 |
RH VERTICAL TUBE - Call your local BRP dealership |
