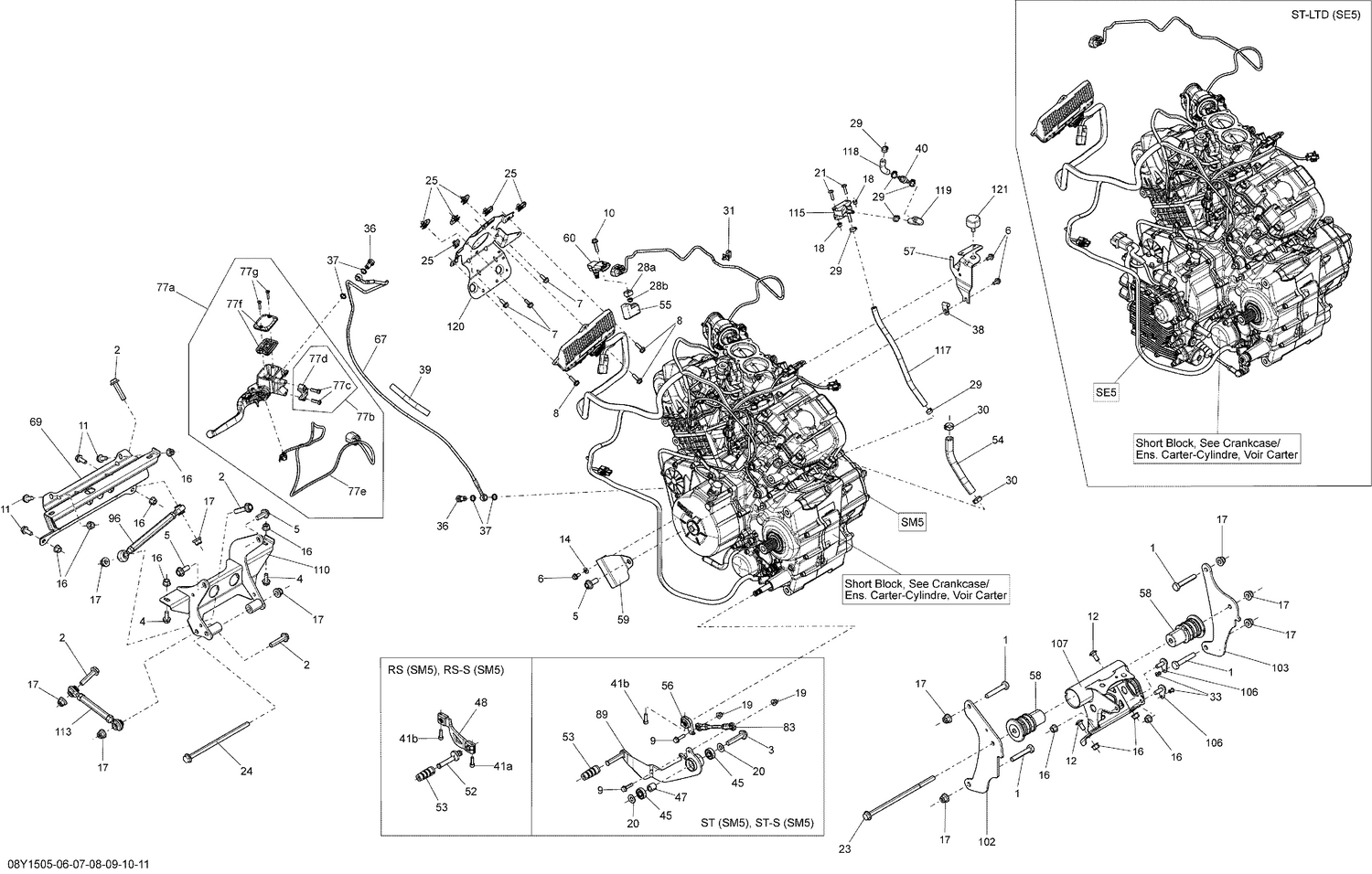

| Ref | Part Number | Description |
|---|
| 1 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 2 |
207504546 |
Hex. Flange Screw M10 X 45 Scotch Grip |
| 3 |
XXX |
Not Available As Spare Parts |
| 4 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 5 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 6 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 7 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 8 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 11 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 12 |
207782046 |
Carriage Bolt M8 X 20 |
| 14 |
224061121 |
Flat Washer |
| 16 |
233081416 |
Hex. Flange Nut M8 |
| 17 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 23 |
250000507 |
Hex. Flange Screw M10 X 220 |
| 24 |
250000583 |
Hex. Flange Screw M10 X 200 |
| 25 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 28a |
269500725 |
M6 Nut Housing Ass'y |
| 28b |
232561600 |
Hex. Elastic Stop Nut M6 |
| 29 |
XXX |
Not Available As Spare Parts |
| 30 |
293650186 |
Oetiker Clamp |
| 31 |
293750009 |
Tie-Rap 173 mm |
| 33 |
390402300 |
Pop Rivet 3/16" |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
415052400 |
Bracket |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
XXX |
Not Available As Spare Parts |
| 41a |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 41b |
XXX |
Not Available As Spare Parts |
| 45 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
707001458 |
LEVER - Call your local BRP dealership |
| 52 |
707000455 |
Adjustment Rod |
| 53 |
XXX |
Not Available As Spare Parts |
| 54 |
219704436 |
HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership |
| 55 |
707000586 |
Foam Filter |
| 56 |
XXX |
Not Available As Spare Parts |
| 57 |
707000756 |
Intake Support |
| 58 |
707000814 |
RUBBER MOUNT - Call your local BRP dealership |
| 59 |
707000845 |
DEFLECTOR - Call your local BRP dealership |
| 60 |
707000995 |
Pressure And Temperature Sensor |
| 67 |
XXX |
Not Available As Spare Parts |
| 69 |
707001056 |
Front Rubber Mount |
| 77a |
XXX |
Not Available As Spare Parts |
| 77b |
XXX |
Not Available As Spare Parts |
| 77c |
XXX |
Not Available As Spare Parts |
| 77d |
XXX |
Not Available As Spare Parts |
| 77e |
XXX |
Not Available As Spare Parts |
| 77f |
XXX |
Not Available As Spare Parts |
| 77g |
XXX |
Not Available As Spare Parts |
| 83 |
XXX |
Not Available As Spare Parts |
| 89 |
XXX |
Not Available As Spare Parts |
| 96 |
707001357 |
CONNECTING ROD - Call your local BRP dealership |
| 102 |
707001238 |
LH ENGINE SUPPORT - Call your local BRP dealership |
| 103 |
707001239 |
RH ENGINE SUPPORT - Call your local BRP dealership |
| 106 |
707001292 |
Attach |
| 107 |
707001331 |
Extention |
| 110 |
707001336 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 113 |
707001358 |
Connecting Rod |
| 115 |
XXX |
Not Available As Spare Parts |
| 117 |
XXX |
Not Available As Spare Parts |
| 118 |
XXX |
Not Available As Spare Parts |
| 119 |
XXX |
Not Available As Spare Parts |
| 120 |
707800469 |
BRACKET - Call your local BRP dealership |
