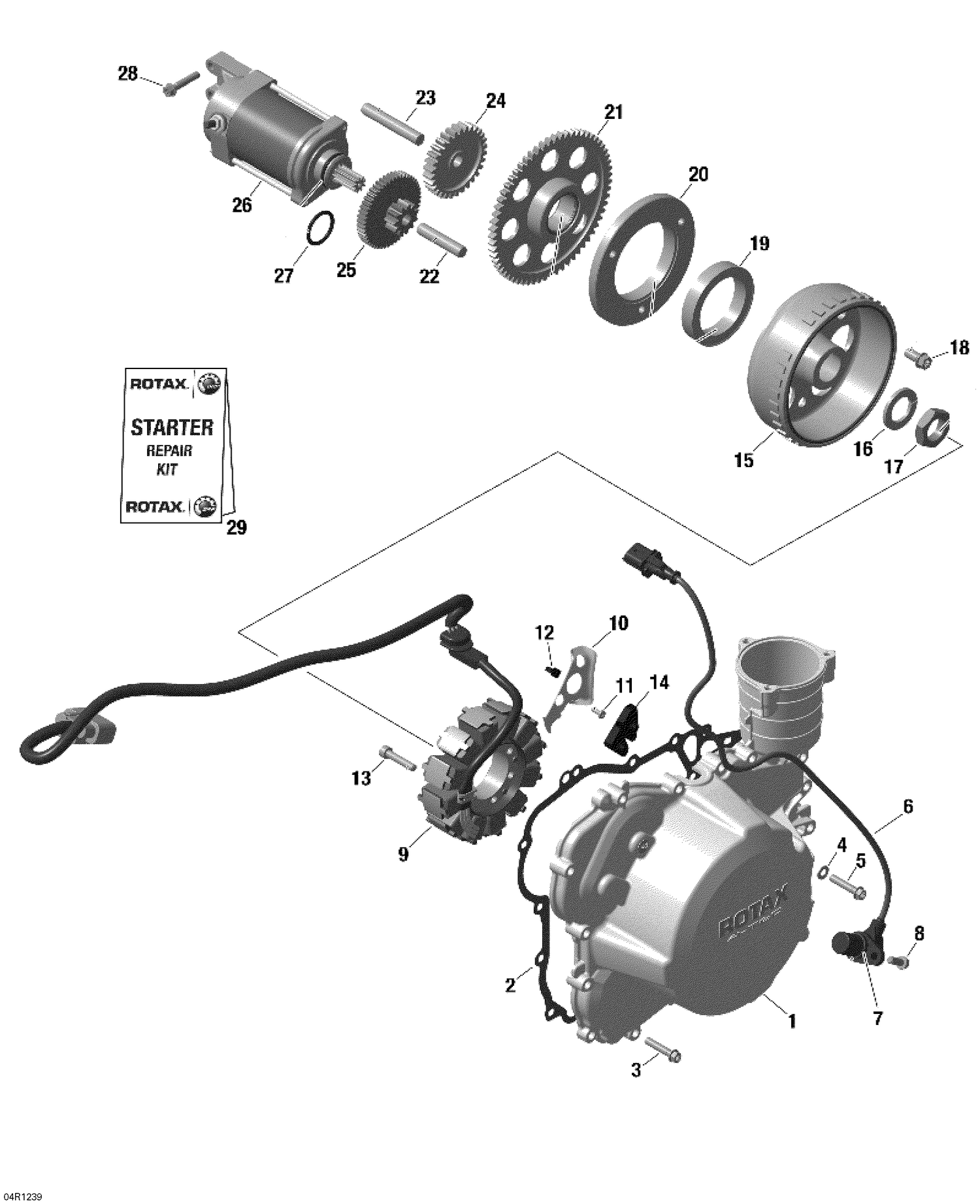

03- Magneto
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420611833 | Cover |
| 2 | 420430750 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 404146600 | Sealing Washer |
| 5 | 420440647 | Torx Flange Screw M6 X 30 |
| 6 | 420966570 | Crankshaft Position Sensor Ass'y |
| 7 | 420431580 | O-Ring |
| 8 | 420440162 | Torx Flange Screw M6 X 16 |
| 9 | 420892378 | Stator Ass'y This part replaces 420892373. |
| 10 | 420951192 | Cable Holder |
| 11 | 420640085 | TORX SCREW 3.5 X 8 - Call your local BRP dealership |
| 12 | 420866717 | CLAMP - Call your local BRP dealership |
| 13 | 205063044 | Socket Head Screw M6 X 30 |
| 14 | 420860052 | Spacer |
| 15 | 420892361 | Magneto Flywheel |
| 16 | 420945759 | Lock Washer, 22 mm |
| 17 | 420842239 | Hex. Nut, M22 X 1.5 |
| 18 | 420440852 | Torx Flange Screw M8 X 16 |
| 19 | 420659113 | Sprag Clutch |
| 20 | 420659266 | Housing Sprag Clutch |
| 21 | 420434235 | Free Wheel Gear, 64 Teeth |
| 22 | 420229302 | Location Pin 10 M6x50 This part replaces 420229301. |
| 23 | 420229475 | Needle Pin |
| 24 | 420634605 | Starter Intermediate Gear, 30 Teeth |
| 25 | 420634741 | Starter Double Gear 11/49 T |
| 26 | 420893531 | Starter Ass'y This part replaces 420892421. |
| 27 | 420250140 | O-Ring |
| 28 | 420440647 | Torx Flange Screw M6 X 30 |
