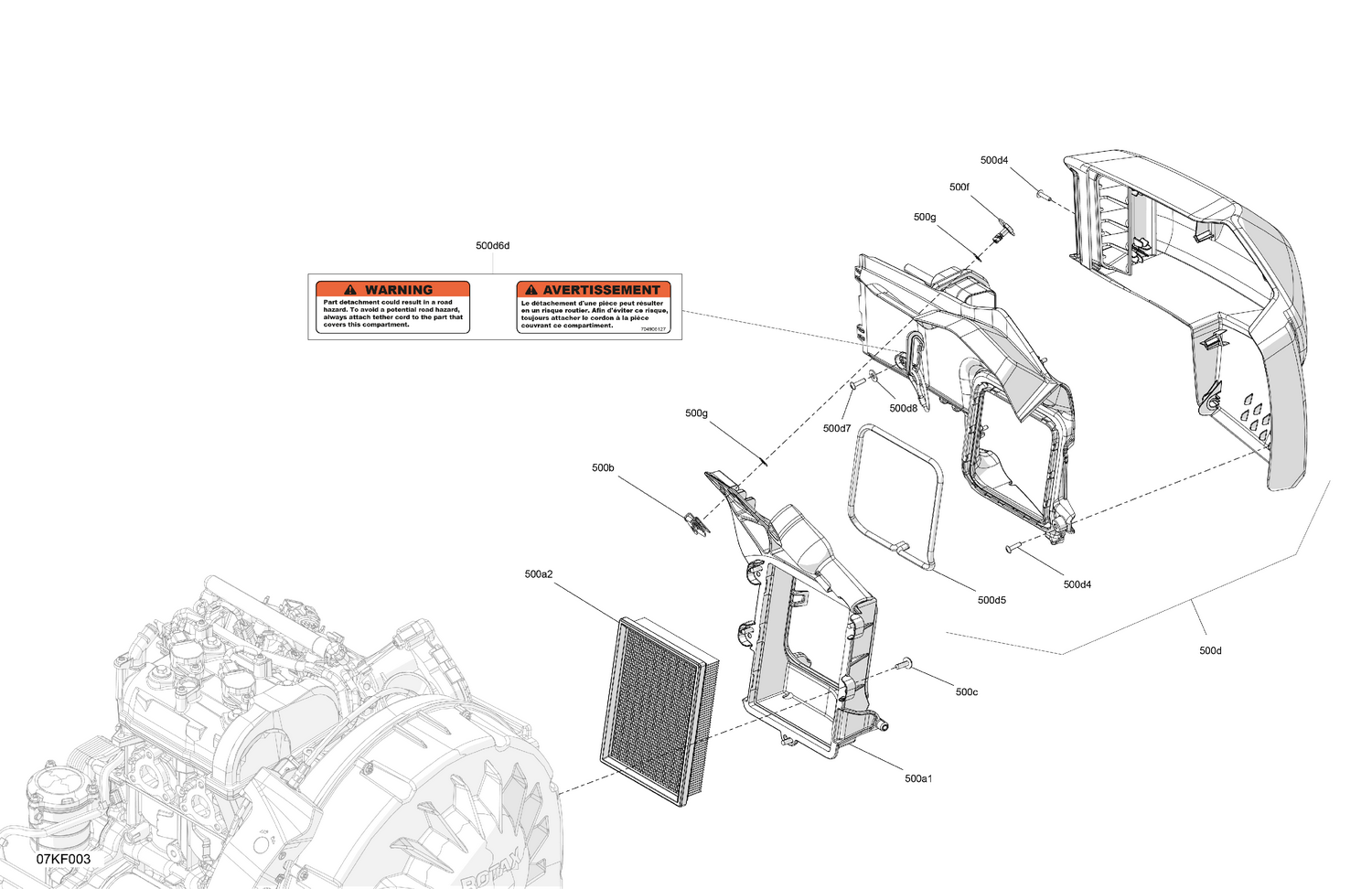

02- Engine - RH Air Intake
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 500a1 | 706600370 | Baseplate |
| 500a2 | 707800306 | Air Filter |
| 500b | 705002651 | Quarter Turn Nut |
| 500c | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 500d4 | 250000759 | Torx Truss Pt K40 X 16 |
| 500d5 | 707800817 | Neoprene Seal |
| 500d6d | 704905127 | Cord Decal |
| 500d7 | 250000759 | Torx Truss Pt K40 X 16 |
| 500d8 | 224061121 | Flat Washer |
| 500f | 705013609 | Quarter-Turn Screw |
