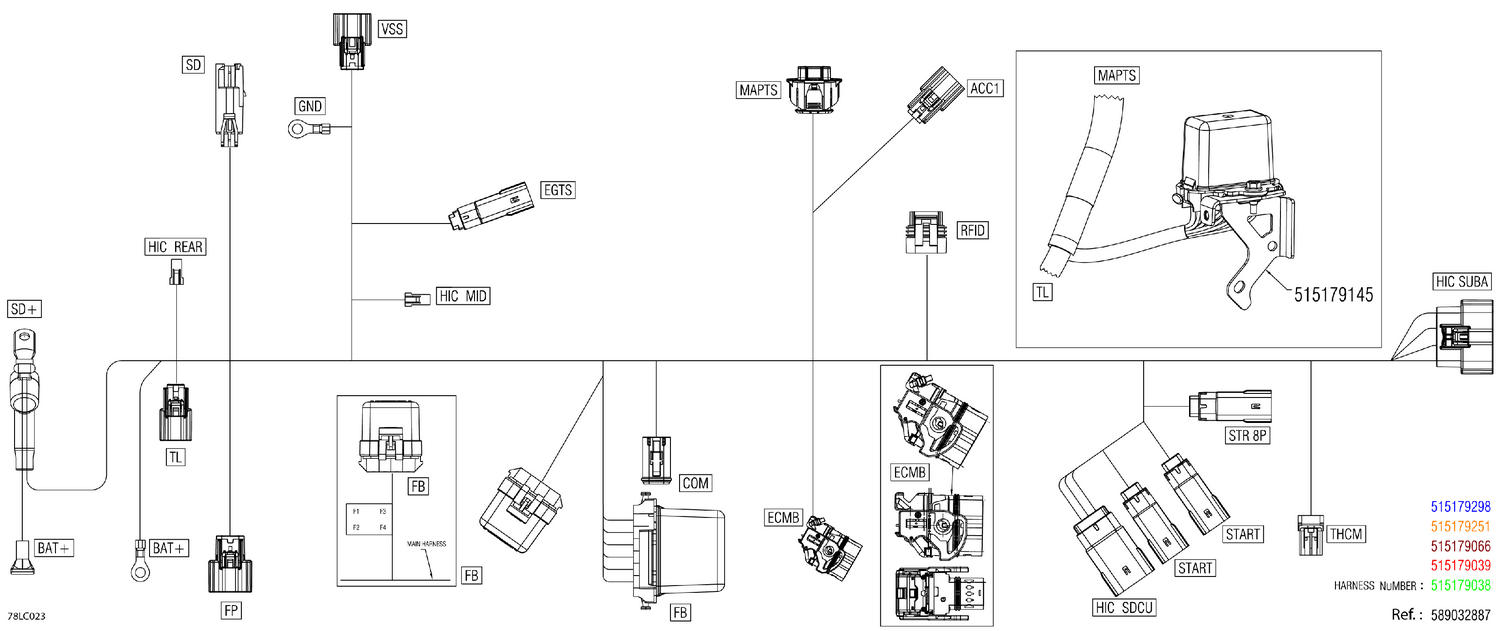

08- Electric - Main Harness - 515179298 - Model With 3 Amperes Battery
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 515178018 | Female Terminal |
| ACC1 | 515178954 | Housing |
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing, 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| ECMB | 710001589 | Female Terminal |
| ECMB | 710001590 | Female Terminal |
| ECMB | 710001591 | Cover, 48 positions |
| ECMB | 710001592 | Plug |
| ECMB | 710001727 | Female Terminal |
| EGTS | 515178013 | Male Terminal |
| EGTS | 515178223 | Clip Connector |
| F1 | 710000742 | Little Fuse, 5 Ampere |
| F2 | 278002389 | Little Fuse, 25 Ampere |
| F3 | 710000747 | Little Fuse, 30 Amperes |
| F4 | 710000746 | Little Fuse, 20 Ampere |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 515178001 | Fuse Box |
| FB | 515178132 | Fuse Box Cover |
| FB | 515178139 | Female Terminal |
| FB | 515178194 | Foam |
| FB | 515178909 | Connector Lock |
| FB | 515179295 | Fuse Label |
| FB | 710000048 | Wire Seal |
| FB | 710000992 | Clip |
| FP | 515178018 | Female Terminal |
| FP | 515178474 | Female Housing |
| GND | 278001392 | Open Barrel Terminal |
| GND | 515177246 | Heat Shrink Tube (6mm) |
| MAPTS | 415128501 | Seal |
| MAPTS | 515176410 | Male Connector |
| MAPTS | 710001137 | Female Terminal |
| RFID | 710001119 | Female Terminal |
| START | 515178013 | Male Terminal |
| START | 515178023 | Housing |
| START | 515178223 | Clip Connector |
| STR8P | 515178013 | Male Terminal |
| STR8P | 515178223 | Clip Connector |
| STR8P | 515178907 | Molex Male Connector 8 Cavities |
| THCM | 515177048 | Female Terminal Housing, 4 Circuit |
| THCM | 515177049 | Female Terminal |
| THCM | 515177050 | Seal |
| THCM | 515177051 | Lock, 4 Circuits |
| TL | 515178014 | Female Terminal |
| TL | 515178018 | Female Terminal |
| TL | 515178346 | Female Housing Connector 4 Pins W/O CPA |
| VSS | 515178954 | Housing |
| 3000 | 515179406 | Chassis Wiring Harness This part replaces 515179298. |
