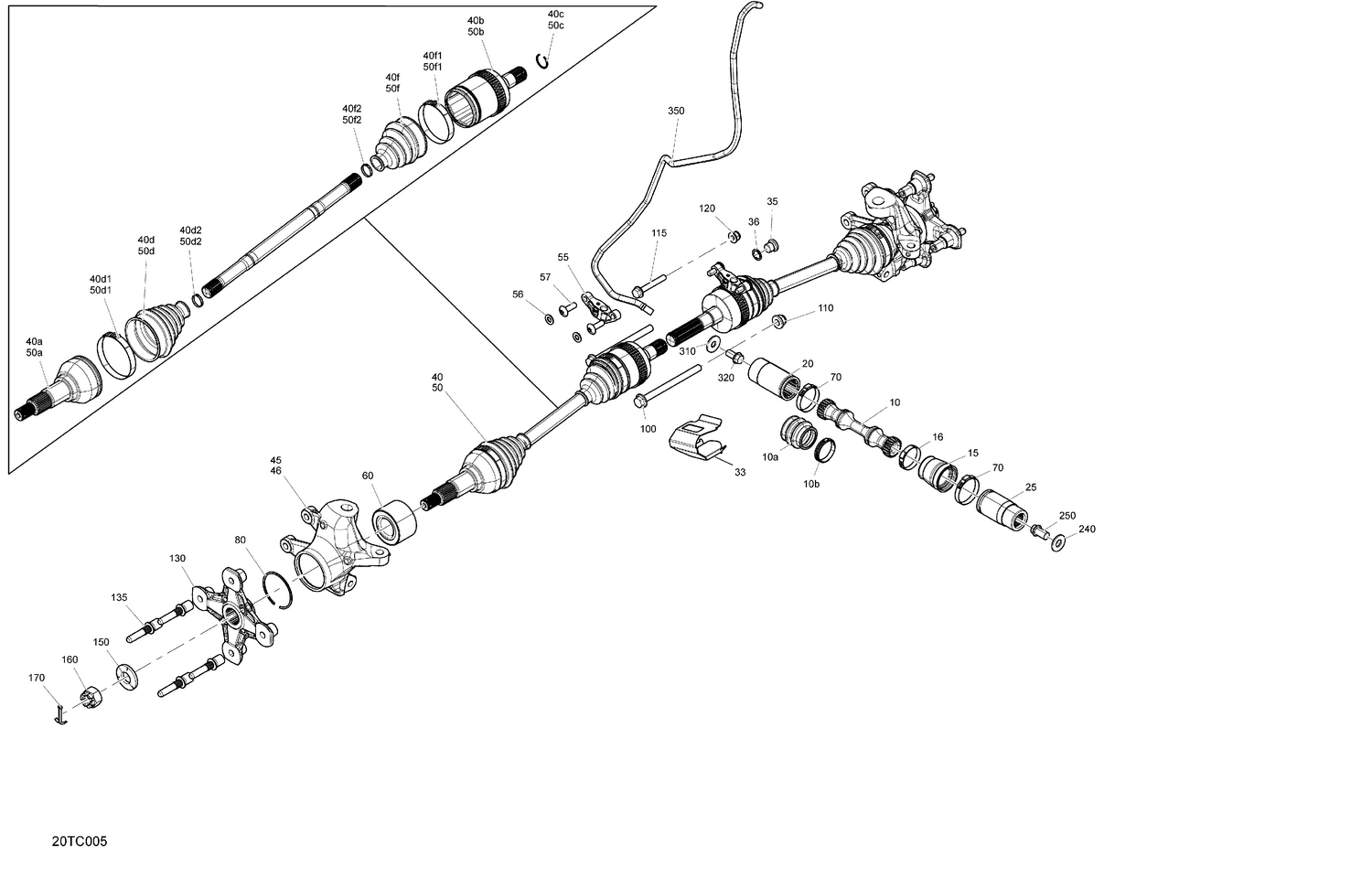

04- Drive - Front - Common Parts
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 509000045 | Oetiker Gear Clamp 36.1MM |
| 15 | 705401093 | Rubber Boot |
| 16 | 293650199 | Oetiker Gear Clamp |
| 20 | 705401969 | Coupling Sleeve |
| 33 | 705402903 | Deflector |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 40a | 705401344 | CV Joint |
| 40b | 715900602 | RH Plunging Joint |
| 40c | 705401349 | Circlip Joint |
| 40d1 | 715900282 | Oetiker Clamp |
| 40d2 | 715900283 | Oetiker Clamp, Small |
| 40f1 | 715900284 | Oetiker Clamp, Large |
| 40f2 | 715900261 | Oetiker Clamp, Small |
| 45 | 705403307 | LH Knuckle |
| 46 | 705403308 | RH Knuckle |
| 50a | 705401344 | CV Joint |
| 50b | 715900603 | LH Plunging Joint |
| 50c | 705401349 | Circlip Joint |
| 50d1 | 715900282 | Oetiker Clamp |
| 50d2 | 715900283 | Oetiker Clamp, Small |
| 50f1 | 715900284 | Oetiker Clamp, Large |
| 50f2 | 715900261 | Oetiker Clamp, Small |
| 55 | 705402088 | Sensor Support |
| 56 | 234081410 | Flat Washer 8 mm |
| 57 | 250000874 | Torx Truss M8 X 25 |
| 60 | 293350150 | Ball Bearing |
| 70 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 80 | 293370019 | Circlip |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 115 | 207685544 | Hex. Flange Screw M8 X 55 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 130 | 705503257 | Wheel Hub |
| 135 | 250300055 | Wheel Stud M10 X 1.25 |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 |
| 170 | 250400071 | Cotter Pin |
| 240 | 250200102 | Flat Washer M12 |
| 250 | 250001042 | Hex Flange Screw M12 X 20 |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip |
