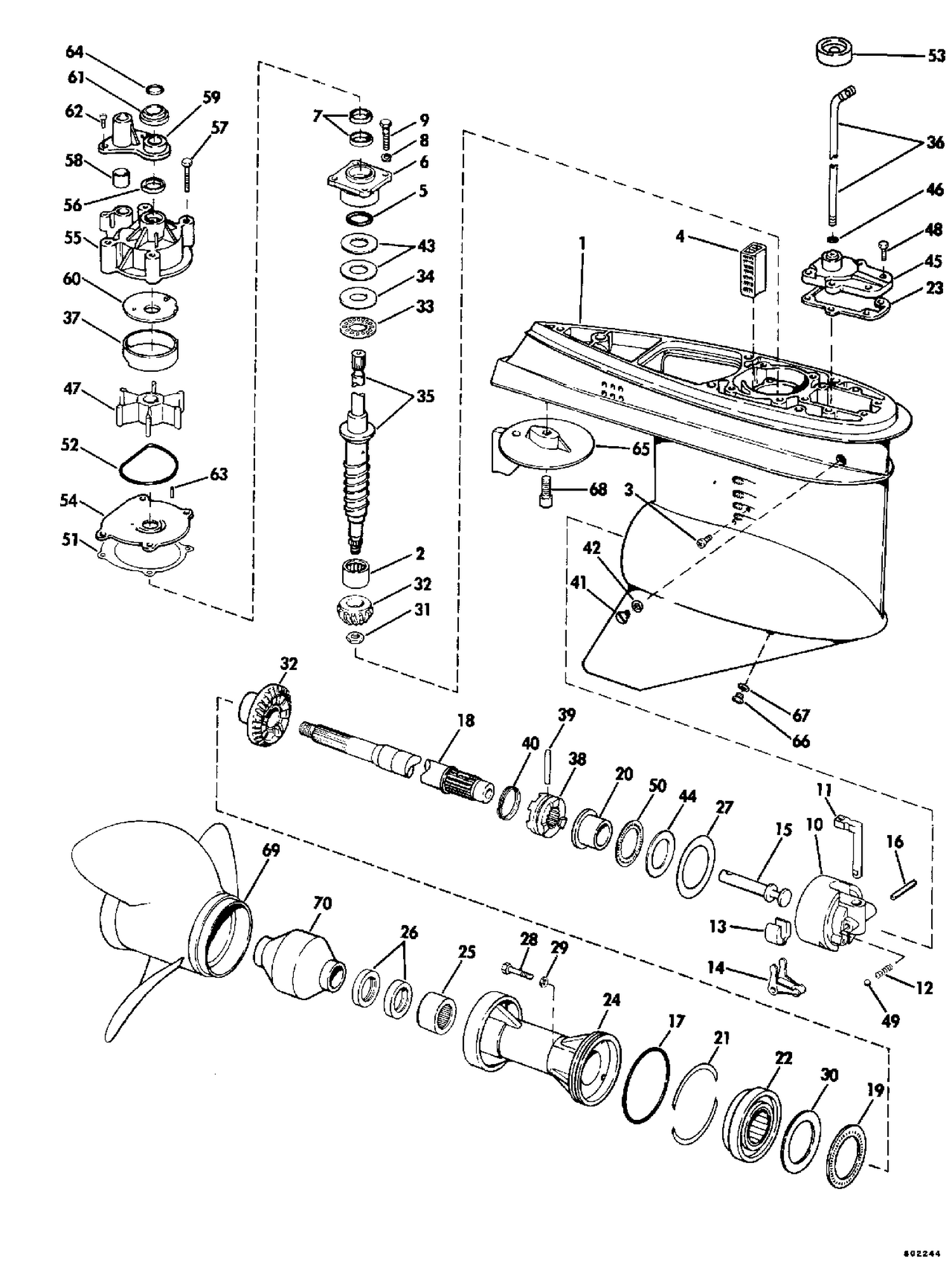

| Ref | Part Number | Description |
|---|
| 1 |
0390180 |
GEARCASE & BEARING ASSEMBLY |
| 10 |
0390157 |
HOUSING & BEARING ASSY. |
| 11 |
0325813 |
DETENT, Shifter |
| 14 |
0325815 |
SHIFTER |
| 17 |
0305123 |
O RING This part replaces 0321119. |
| 18 |
0390158 |
PROPELLER SHAFT ASSY. |
| 20 |
0393068 |
THRUST BUSHING This part replaces 0325812. |
| 21 |
0325810 |
RETAINER |
| 22 |
0390172 |
BRG & HSG. SEAL ASSY. |
| 24 |
0390847 |
BEARING HSG. SEAL ASSY. |
| 27 |
0325806 |
SHIM (.005), Bushing |
| 27 |
0325807 |
SHIM (.010), Bushing |
| 27 |
0325808 |
SHIM (.020), Bushing |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 30 |
0326370 |
THRUST WASHER |
| 32 |
0390662 |
GEAR & PINION ASSY. |
| 35 |
5000775 |
Kit Ayd/Shaft-20 This part replaces 0391380. |
| 35 |
5000776 |
Kit Ay This part replaces 0391379. |
| 36 |
0325817 |
SHIFT ROD |
| 36 |
0326610 |
SHIFT ROD |
| 37 |
0322894 |
LINER, Impeller |
| 38 |
0910198 |
SHIFTER, Clutch dog |
| 43 |
0314742 |
SHIM BEARING HOUSING |
| 48 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 52 |
0321120 |
SEAL |
| 54 |
0435027 |
CUP & PLATE This part replaces 0324751. |
| 55 |
0389657 |
IMPELLER HOUSING ASSY |
| 57 |
0323626 |
SCREW |
| 60 |
0321176 |
PALTE,Liner,impeller |
| 63 |
0323950 |
KEY, Drive shaft to impeller |
| 65 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 68 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 69 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 69 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 0390160 |
0390160 |
GEARCASE ASSEMBLY, Long |
| 0391095 |
0391095 |
GEARCASE ASSY., Extra long |
