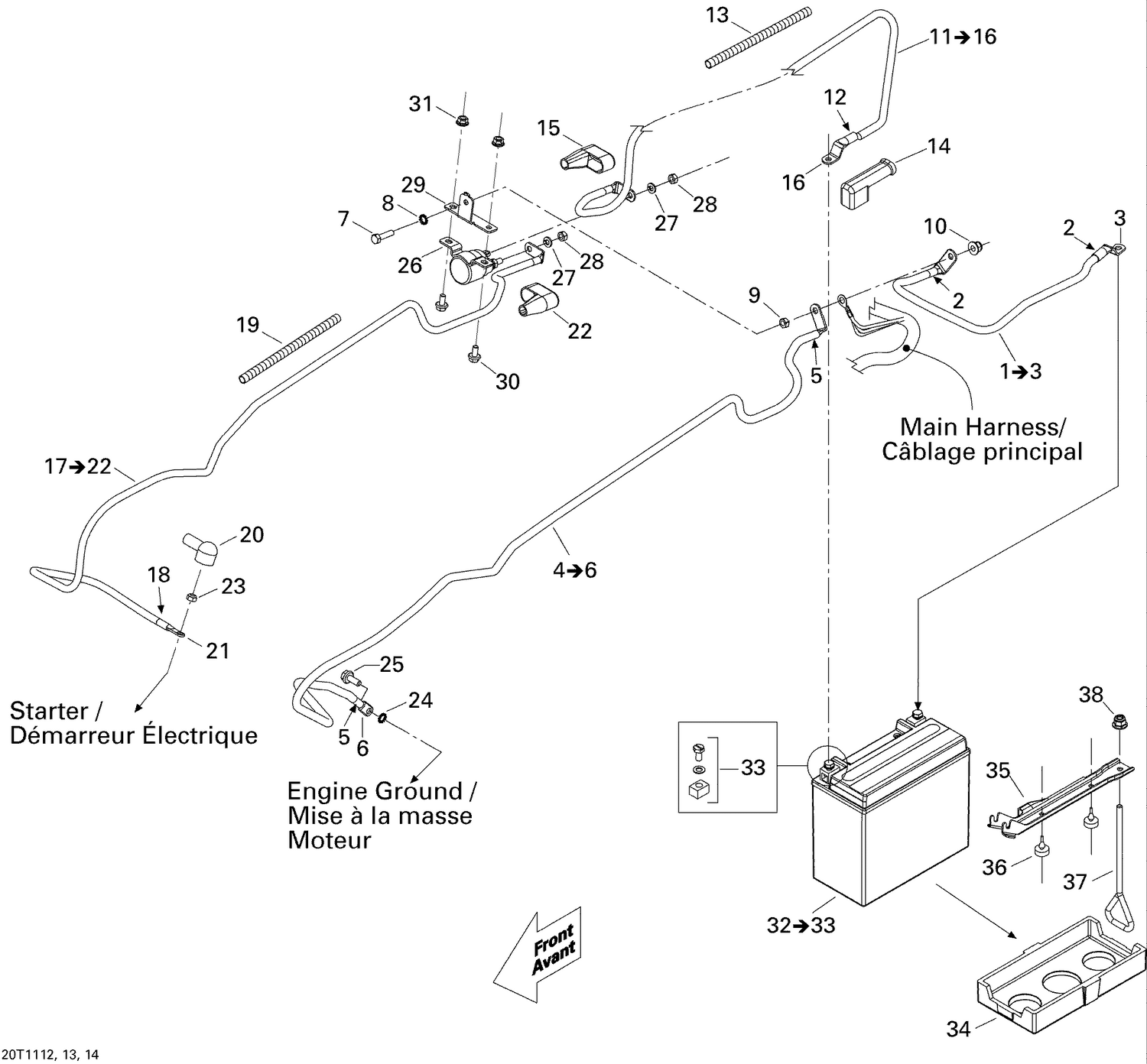

| Ref | Part Number | Description |
|---|
| 2 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 3 |
710000518 |
Open Barrel |
| 5 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 6 |
Not |
Available As Spare Part - Open Barrel |
| 7 |
207162544 |
Hex. Screw M6 X 25 |
| 8 |
234461608 |
External Serrated Lock Washer 6 mm |
| 9 |
232061414 |
Hex. Nut M6 |
| 10 |
233061414 |
Hex. Flange Nut M6 |
| 12 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 13 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 14 |
710001829 |
Protector Cap |
| 15 |
710001817 |
Protector Cap |
| 16 |
Not |
Available As Spare Part - Open Barrel |
| 18 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 19 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 20 |
710000526 |
Protector Cap |
| 21 |
Not |
Available As Spare Part - Open Barrel |
| 22 |
710001817 |
Protector Cap |
| 23 |
232561414 |
Elastic Stop Nut M6 |
| 24 |
234461608 |
External Serrated Lock Washer 6 mm |
| 25 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 26 |
710007777 |
Starter Relay This part replaces 710001364. |
| 27 |
234161601 |
Lock Washer Helical M6 |
| 28 |
232061600 |
Hex. Nut M6 |
| 29 |
710001260 |
SOLENOID SUPPORT - Call your local BRP dealership |
| 30 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 31 |
233061414 |
Hex. Flange Nut M6 |
| 33 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 34 |
710000279 |
INSULATOR PAD - Call your local BRP dealership |
| 35 |
710001019 |
FIXATION PLATE - Call your local BRP dealership |
| 36 |
708000759 |
Rubber Stopper |
| 37 |
710001107 |
Hook |
