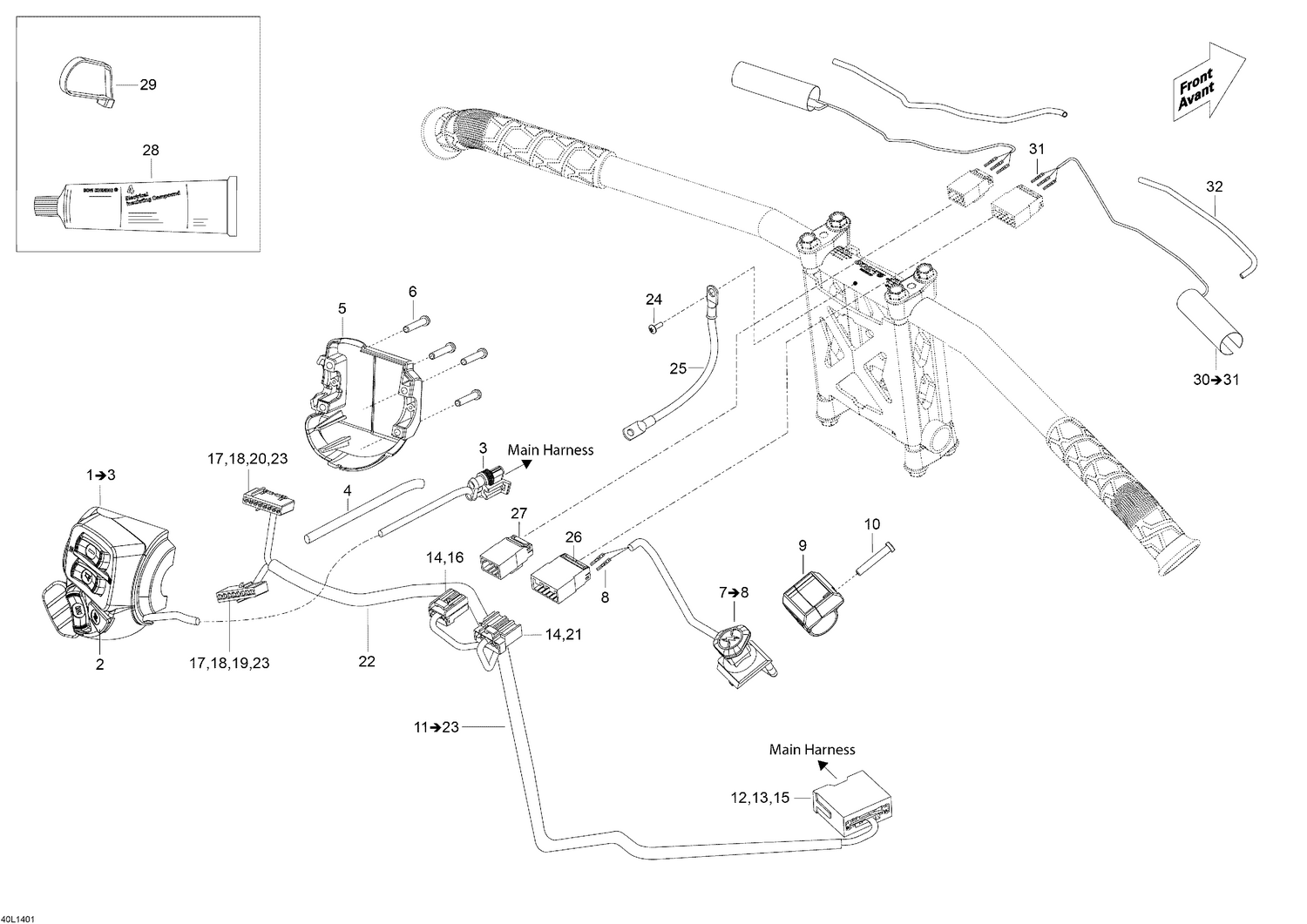

10- Steering Wiring Harness
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515176088 | Start/RER Button |
| 3 | 409209600 | Female Housing |
| 4 | 515175442 | Protector Tube |
| 5 | 515175926 | Switch Housing Plate |
| 6 | 250000263 | Torx Screw #8-18 |
| 8 | 515175232 | Male Terminal |
| 9 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 10 | 250000263 | Torx Screw #8-18 |
| 12 | 515175232 | Male Terminal |
| 13 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 14 | 515175231 | Female Terminal |
| 15 | 515175351 | MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 16 | 515175543 | Female Terminal Housing, 8 Circuits |
| 17 | 515175808 | FEMALE TERMINAL - Call your local BRP dealership |
| 18 | 515175809 | FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 19 | 515175807 | FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 20 | 515175810 | FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 21 | 515175819 | Female Housing |
| 22 | 515175830 | Low Temperature Tubing 1/2” |
| 23 | 515175941 | Female Terminal |
| 24 | 250000690 | Forming Screw M5 x 10 |
| 25 | 515177668 | Ground Cable |
| 26 | 515175817 | Male Terminal Housing, 8 Circuits |
| 27 | 515175662 | Male Terminal Housing, 6 Circuits |
| 28 | 619600021 | Loctite 8104 (Dielectric Grease), 75 ml |
| 29 | 414115200 | Tie-Rap 180 mm |
| 31 | 515175232 | Male Terminal |
