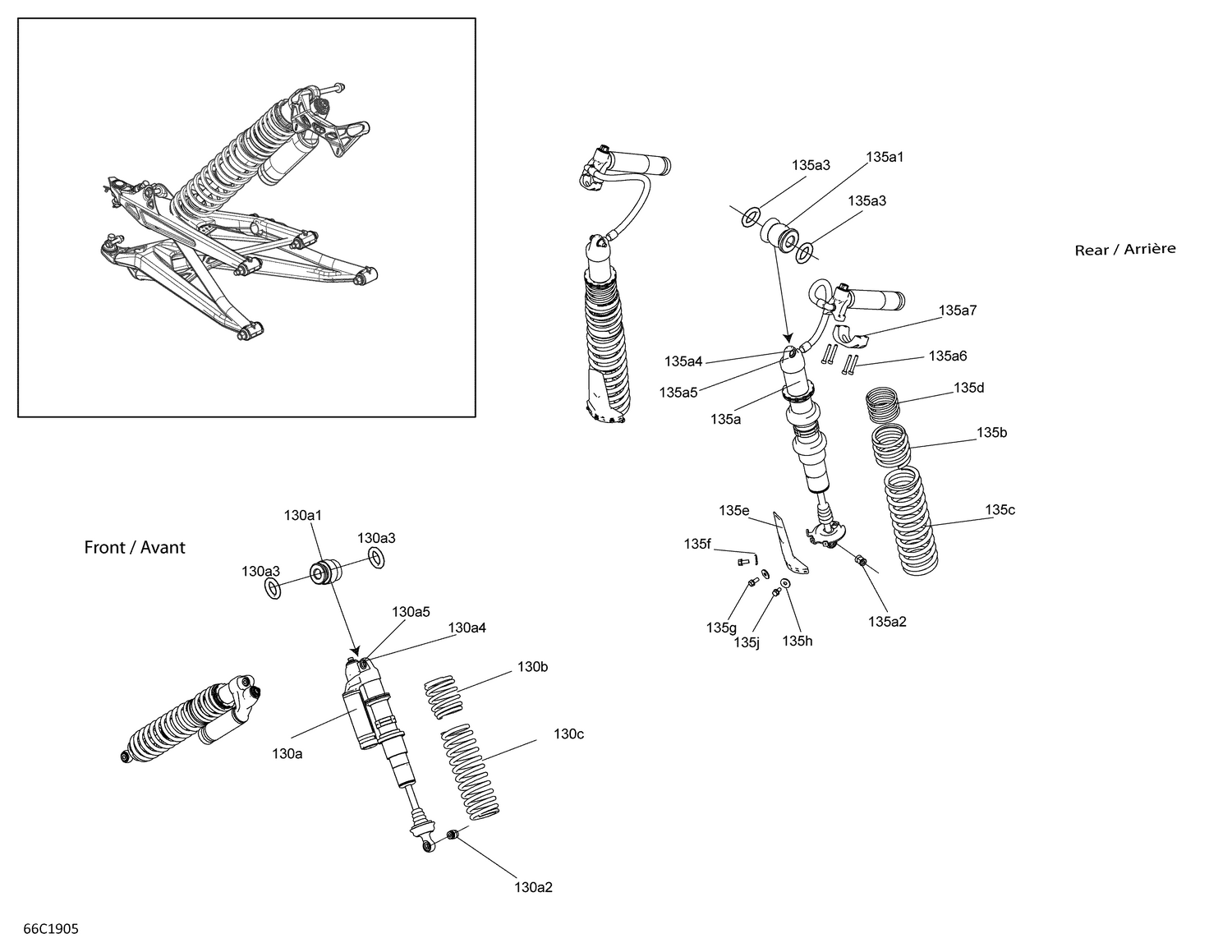

07- Shocks - XDS
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900337 | Spherical Bearing |
| 130a2 | 715900338 | O-Ring Bushing |
| 130a3 | 715900480 | Circlip |
| 130a4 | 715900481 | Reducer |
| 130a5 | 706004078 | Ball Joint This part replaces 715900482. |
| 130b | 706205333 | Deep Black, Compression Spring This part replaces 706202586. |
| 130c | 706202790 | Black Front Spring |
| 135a1 | 715900337 | Spherical Bearing |
| 135a2 | 715900338 | O-Ring Bushing |
| 135a3 | 715900480 | Circlip |
| 135a4 | 715900481 | Reducer |
| 135a5 | 706004078 | Ball Joint This part replaces 715900482. |
| 135b | 706005126 | Deep Black, Compression Spring This part replaces 706002662. |
| 135c | 706005137 | Deep Black, Compression Spring This part replaces 706002661. |
| 135e | 706202215 | Protector |
| 135f | 250200025 | Washer M5 |
