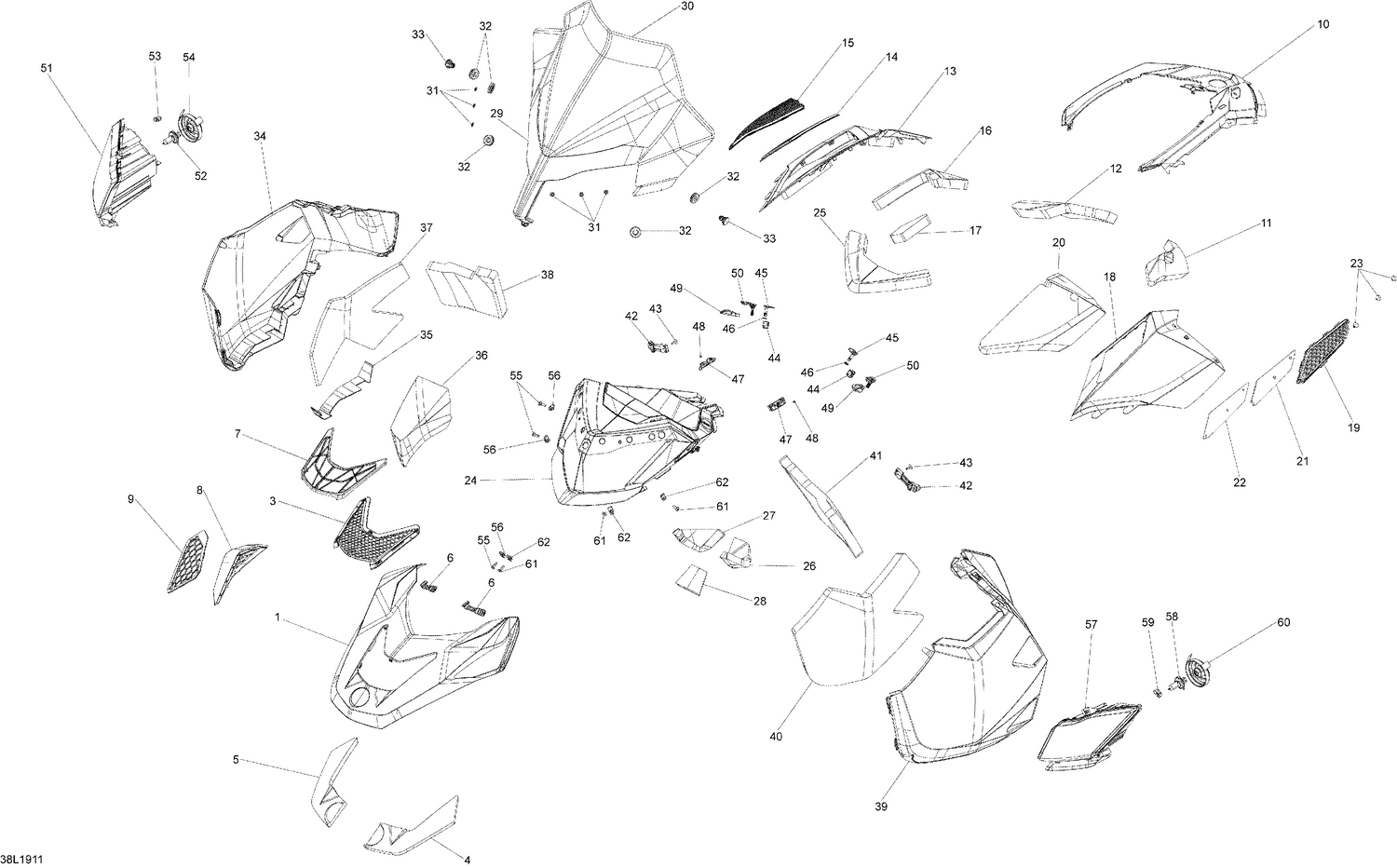

09- Hood Commander - 600 E-TEC

09- Hood Commander - 600 E-TEC

Parts (54)

RefPart NumberDescription
1 517304812 Hood, Black
3 517306329 Orange, Hood Grill
4 517304330 Isolation L.H.
5 517304214 Isolation R.H.
6 517304289 Latch Pannel
8 517306981 Intake Grill
9 517304584 Intake Grill
10 517306757 Console
11 517305644 Isolation left
12 517304318 Isolation right
14 517304015 Acces panel grill R.H.
15 517304016 Access Panel Grill Lower RH
16 517304311 Isolation
17 517305987 Insulator
19 517303893 L.H. Acces panel grill
20 517304313 Insulator
21 517305311 Insulator
22 502007312 Grill plate
23 414644300 Black, Dart
24 517304272 Indicator Support
24 517305281 Black Indicator Support
25 517304314 Isolation front
26 517304315 Isolation right
27 517304316 R.H. Isolation
28 517304319 Isolation middle
29 860201000 Windshield (580) Ass'y
32 517303756 Grommet
33 517304744 Button
34 517306970 Black, RH Side Panel
35 517306504 Aluminium Foil
36 517306505 Aluminium Foil
37 517303890 Isolation R.H.
38 517304310 Isolation rear R.H.
39 517306973 Black, LH Side Panel
40 517303891 Isolation L.H.
41 517304309 Isolation rear L.H.
42 517304572 Latch-Panel
43 293150108 Pop Rivet 3/16” This part replaces 293150108.
44 517304297 Handle Fastener Quarter-Turn
45 517304296 Quarter-Turn Handle
46 517304538 Locking Plate
47 517304497 Side Panel Support
48 293150211 Rivet
49 517304075 End Piece Latch
50 517306057 Panel Latch
52 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
53 515176498 Kansi
54 219800280 Rubber Cap Protector This part replaces 515176499.
55 250000722 Torx Truss Screw M6 x 20
56 250100198 Panel Nut , M6 X 1.0 This part replaces 250000957.
58 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
59 515176498 Kansi
60 219800280 Rubber Cap Protector This part replaces 515176499.
61 250000722 Torx Truss Screw M6 x 20
