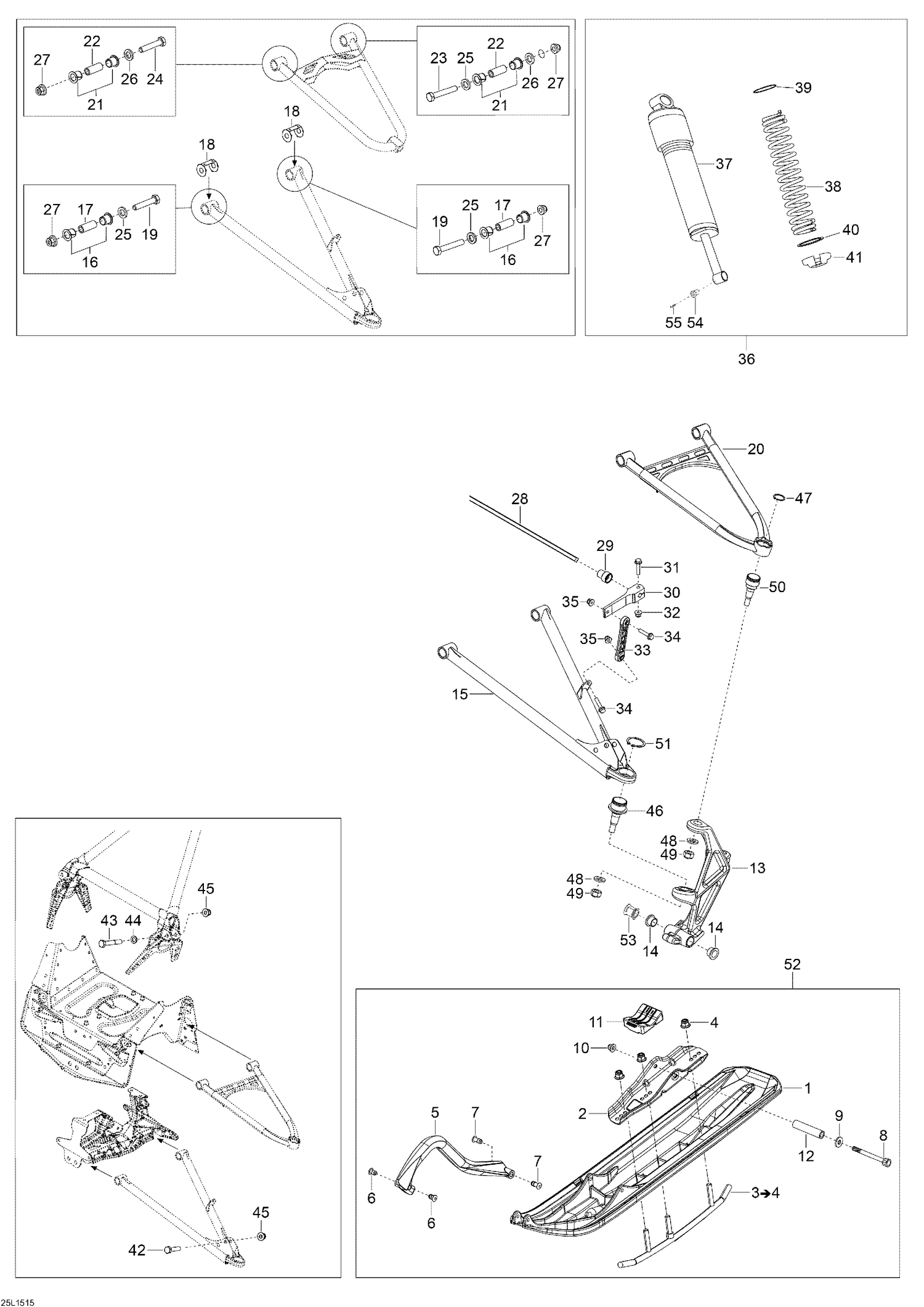

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (54)

RefPart NumberDescription
1 505073154 Blade Ski
2 505073240 Ski Bridge
4 233201414 Hex. Flanged Elastic Nut M10
5 505073108 Handle, White
6 505071812 Retainer 17mm long
7 505072133 Retainer 23mm Long
8 231080044 Hex. Cap Screw M10 x 100
9 732900049 Washer
10 233201414 Hex. Flanged Elastic Nut M10
11 505073411 Rubber Damper
12 506133300 Ski Axle
13 505072959 Ski Leg LH, black
13 505072960 Ski Leg RH, black
14 505072690 Leg Bushing
15 505072497 Lower Arm RH
15 505072498 Lower Arm LH
16 505073330 Bushing
17 505072209 Bushing This part replaces 505072393.
18 505072634 Wear Plate
19 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
20 505073468 Upper Arm LH
20 505073469 Upper Arm RH
21 505073329 Bushing
22 505072143 Aluminum Bushing
23 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
24 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
25 503189564 Washer
26 505072392 Washer
27 250100165 Hex. Flanged Elastic Nut M10
28 505072602 Stabilisator
29 505072064 Bushing
30 505072394 Stabilisator Lever
31 207663046 Hex. Flange Screw M6 X 30
32 233261416 Elastic Flanged Nut M6 X 1.0
33 505072204 Sway Bar Double Joint Link
34 207663046 Hex. Flange Screw M6 X 30
35 233261416 Elastic Flanged Nut M6 X 1.0
37 505073456 Front Shock
38 505072846 Spring
39 NOT IN USE O-ring NOT IN USE
40 NOT IN USE Washer NOT IN USE
41 503194270 Spring Stopper This part replaces 503192608.
42 207005544 Hex. Cap Screw M10 x 55
43 207006544 Hex. Cap Screw M10 x 65
44 503189564 Washer
45 233201414 Hex. Flanged Elastic Nut M10
46 505073636 Ball Joint This part replaces 505072682.
47 293370070 Circlip
48 234021410 Flat Washer
49 250100089 Nut M12
50 505072913 Upper Ball Joint
51 293370035 Circlip
53 505071999 Spacer
54 505072753 Adjustment Knob
