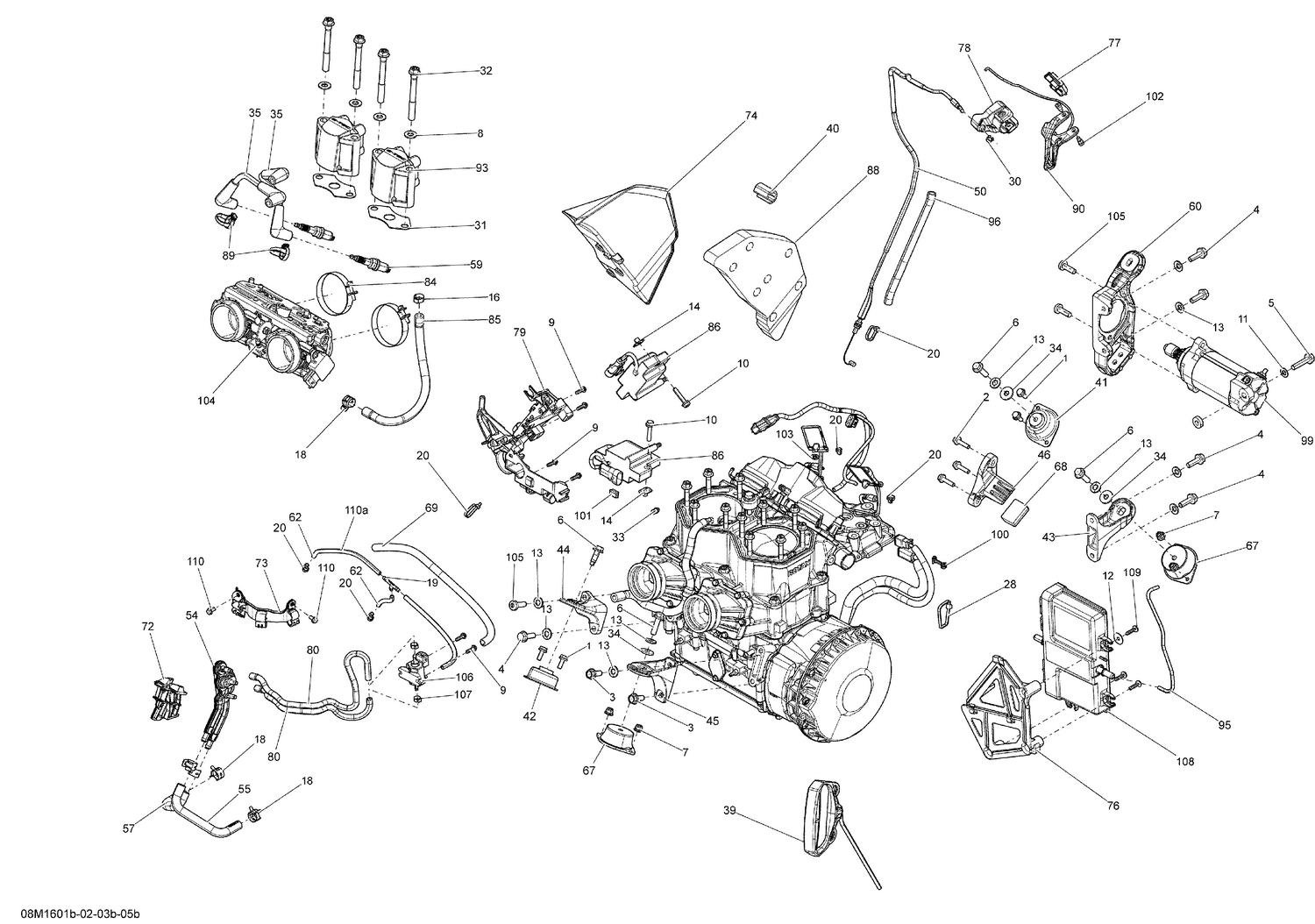

| Ref | Part Number | Description |
|---|
| 1 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 3 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 5 |
207583544 |
Hex Flange Screw M8 X 35, Scotch Grip |
| 6 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 6 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
234001410 |
Flat Washer 10 mm |
| 9 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 10 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 11 |
250200008 |
Flat Washer With Teflon 8 mm |
| 12 |
250200040 |
Flat Washer |
| 13 |
250200146 |
Conical Spring Washer M8 |
| 14 |
293100003 |
Nut Welded, M6 |
| 16 |
293650046 |
Oetiker Clamp |
| 18 |
293650214 |
Norma Spring Clamp |
| 19 |
293710068 |
T-Fitting |
| 20 |
293750001 |
Tie Wrap 94 mm |
| 28 |
293750008 |
Tie Wrap 368 mm |
| 30 |
414274500 |
Circlip |
| 31 |
420430930 |
Gasket |
| 32 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 33 |
420924724 |
Hose Nipple |
| 34 |
503183200 |
Yellow, Washer |
| 35 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. |
| 39 |
512060136 |
Starter Grip |
| 40 |
512060313 |
Protector |
| 41 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 42 |
512060448 |
Rubber Mount |
| 43 |
512060469 |
Front Support, MAG |
| 44 |
512060478 |
Rear Support, PTO |
| 45 |
512060559 |
Rear Support, MAG |
| 46 |
512060576 |
Stopper Support |
| 50 |
512060667 |
Throttle Cable |
| 54 |
512060692 |
Manifold |
| 55 |
512060694 |
RH Formed Hose |
| 57 |
512060695 |
LH Formed Hose |
| 59 |
415131139 |
Spark Plug NGK PFR7AB This part replaces 415129484. |
| 60 |
512060714 |
Front Support, PTO |
| 62 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 67 |
512060729 |
Rubber Mount |
| 68 |
512060627 |
Stopper |
| 69 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 72 |
512060822 |
Manifold Support |
| 73 |
512060827 |
Hose Support |
| 74 |
512060847 |
Noise Shield |
| 76 |
512060858 |
Calibrated Module Support |
| 77 |
512060859 |
Upper Housing |
| 78 |
512060860 |
Lower Housing |
| 79 |
512060888 |
Ignition Coils Support |
| 80 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 84 |
512060943 |
Gemi Clamp |
| 85 |
512060944 |
Bleeder's Collector Outlet Hose |
| 86 |
512060953 |
Ignition Coil |
| 88 |
512060958 |
Inner Acoustic Foam |
| 89 |
512060993 |
Clamp |
| 90 |
512061250 |
Handle Ass'y This part replaces 512061051. |
| 93 |
512061054 |
Fuel Injector |
| 95 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 96 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 99 |
515178473 |
Starter This part replaces 515177389. |
| 100 |
515177770 |
Locker |
| 101 |
710000992 |
Clip |
| 102 |
732601143 |
Flange Screw |
| 103 |
732610072 |
Push Nut |
| 104 |
420889202 |
Throttle Body |
| 105 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 106 |
270600005 |
Solenoid Valve This part replaces 512061078. |
| 107 |
293650234 |
Crimp Clamp |
| 108 |
512060756 |
Calibrated Module |
| 109 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 110 |
210251150 |
Hex Flange Screw M5 X 11 |
