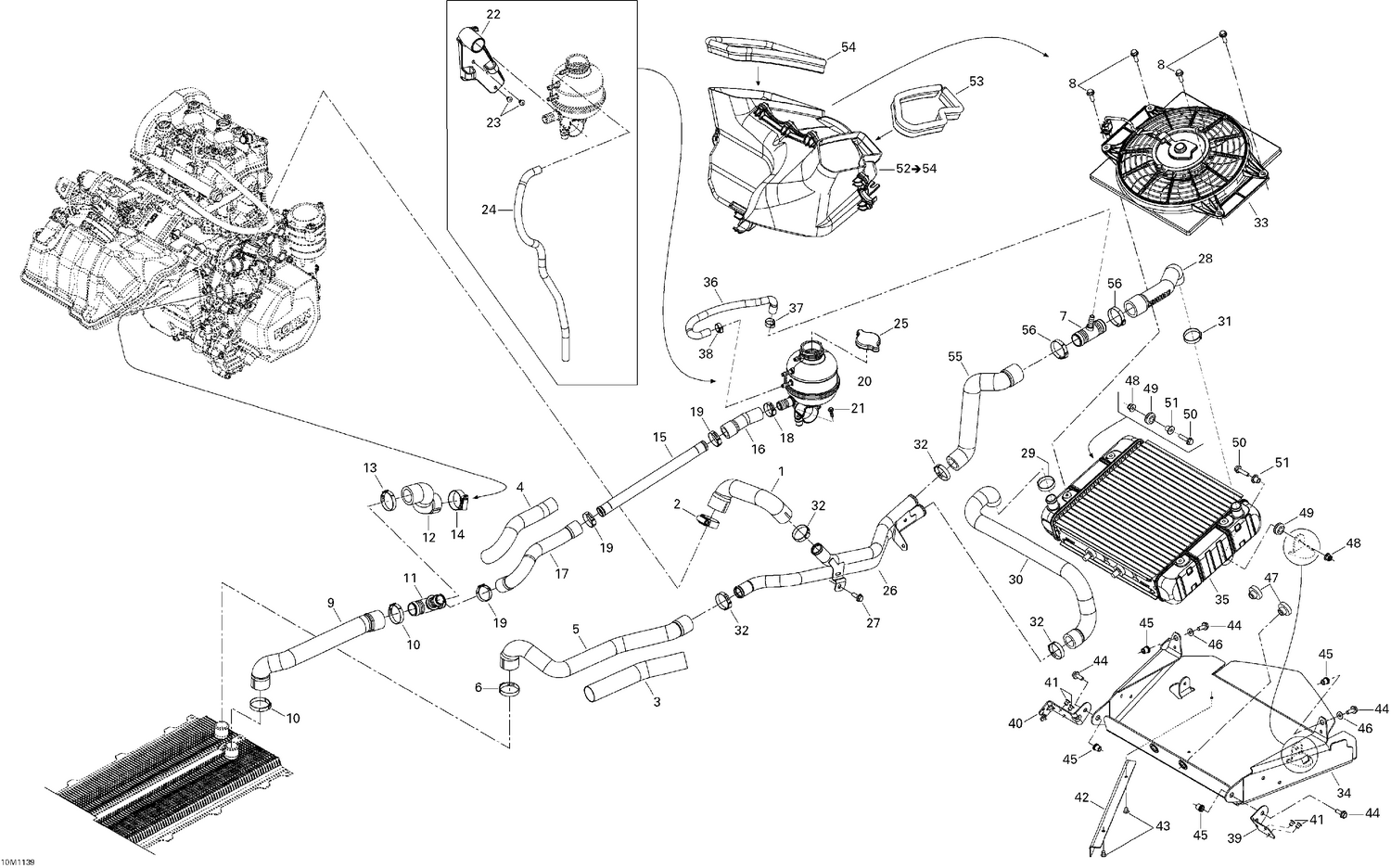

01- Cooling System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000932 | Engine Outlet Hose This part replaces 509000564. |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 4 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 5 | 509000634 | Hose |
| 6 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 7 | 509000510 | T-Fitting |
| 8 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 9 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 10 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 11 | 509000372 | T-Fitting |
| 12 | 509000565 | Engine Inlet Hose |
| 13 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 14 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 15 | 509000644 | PIPE - Call your local BRP dealership |
| 16 | 509000698 | HOSE - Call your local BRP dealership |
| 17 | 509000563 | HOSE - Call your local BRP dealership |
| 18 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 19 | 293650099 | Crimp Clamp |
| 20 | 509000368 | Coolant Tank |
| 21 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 22 | 509000694 | Front Bracket |
| 23 | 390909100 | Avex Rivet |
| 24 | 219704416 | Was 415129508 Bleeder Hose |
| 25 | 509000180 | Radiator Pressure Cap |
| 26 | 509000629 | WATER PIPE - Call your local BRP dealership |
| 27 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 28 | 509000618 | Radiator Hose |
| 29 | 293650165 | Oetiker Gear Clamp |
| 30 | 509000560 | Radiator Hose |
| 31 | 293650165 | Oetiker Gear Clamp |
| 32 | 509000735 | Clamp |
| 33 | 509000692 | Fan Ass'y |
| 34 | 509000721 | RADIATOR SUPPORT - Call your local BRP dealership |
| 35 | 509000691 | RADIATOR - Call your local BRP dealership |
| 36 | 509000635 | Breather Hose |
| 37 | 293650047 | Crimp Clamp, 15.3-706R |
| 38 | 293650025 | Oetiker Gear Clamp |
| 39 | 509000715 | Support |
| 40 | 509000772 | Support |
| 41 | 390909200 | Avex Rivet |
| 42 | 509000892 | DEFLECTOR - Call your local BRP dealership This part replaces 509000778. |
| 43 | 390909200 | Avex Rivet |
| 44 | 207661654 | Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 45 | 293450275 | Insert This part replaces 415107300. |
| 46 | 224061121 | Flat Washer |
| 47 | 709200285 | Grommet This part replaces 570135100. |
| 48 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 49 | 709000582 | Grommet This part replaces 293720053. |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 51 | 293900100 | Bushing |
| 53 | 219704371 | Neoprene Seal 3000 mm Long |
| 54 | 219704371 | Neoprene Seal 3000 mm Long |
