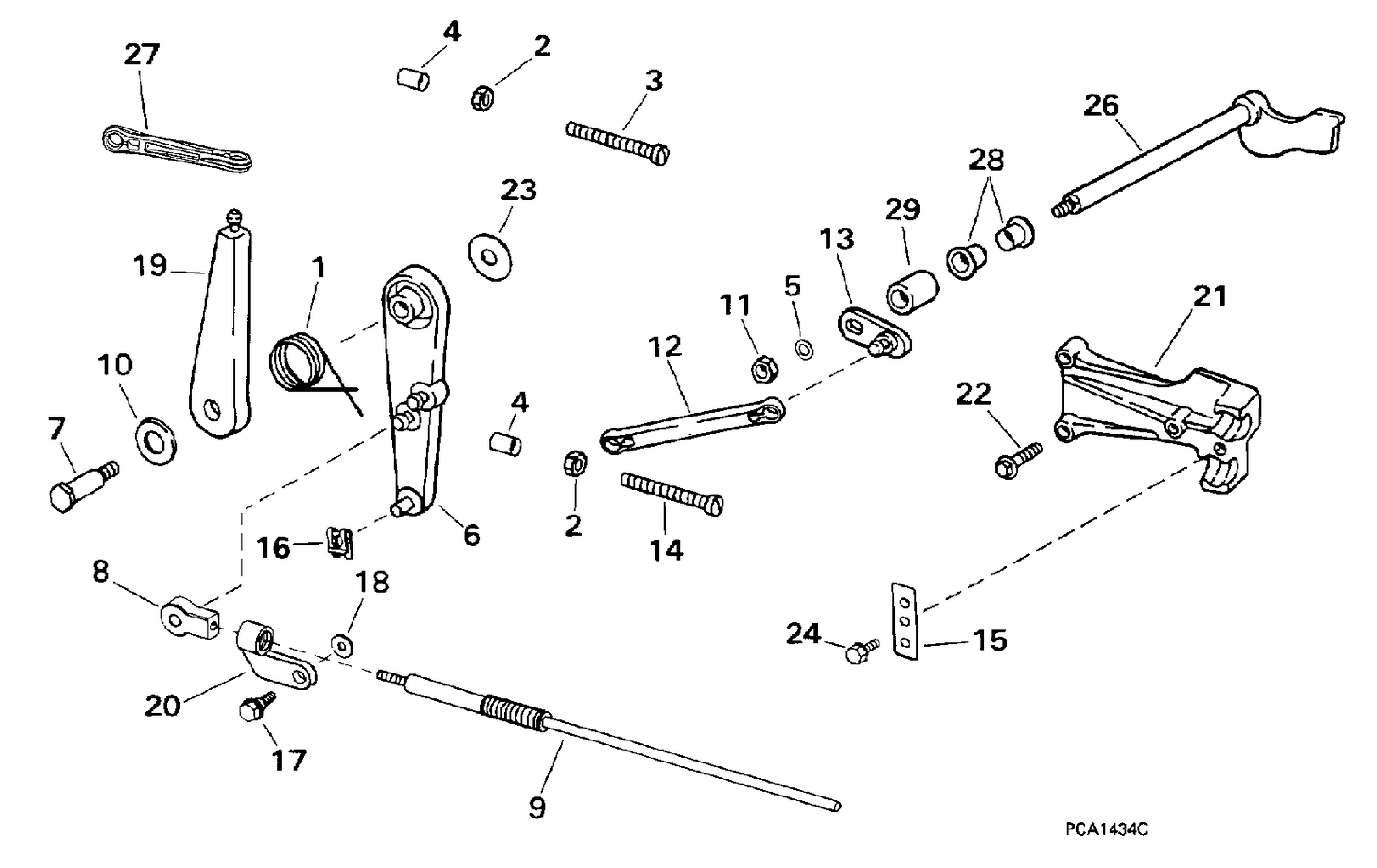

| Ref | Part Number | Description |
|---|
| 1 |
0340914 |
SPRING, Spark control |
| 3 |
0331635 |
SCREW, Idle stop |
| 4 |
0318660 |
BUMPER, Screw, throttle stop |
| 6 |
0340886 |
LEVER, Throttle |
| 7 |
0334238 |
VIS, levier vers cylindre |
| 9 |
0439542 |
CABLE ASSY., Throttle |
| 10 |
0908398 |
WASHER |
| 12 |
0340900 |
LINK, Shell |
| 13 |
0436896 |
LEVER & BALL ASSY |
| 14 |
0331635 |
SCREW, Idle stop |
| 16 |
0338630 |
BRIDE, à ressort, tige de commande de sens de marche vers levier coudé |
| 19 |
0340885 |
LEVER ASSY., Spark |
| 21 |
0339511 |
ANCHOR BLOCK |
| 26 |
0436900 |
THROTTLE CAM & SHAFT |
| 27 |
0343397 |
SHELL LINK |
| 28 |
0341215 |
BUSHING, Throttle cam & shaft |
