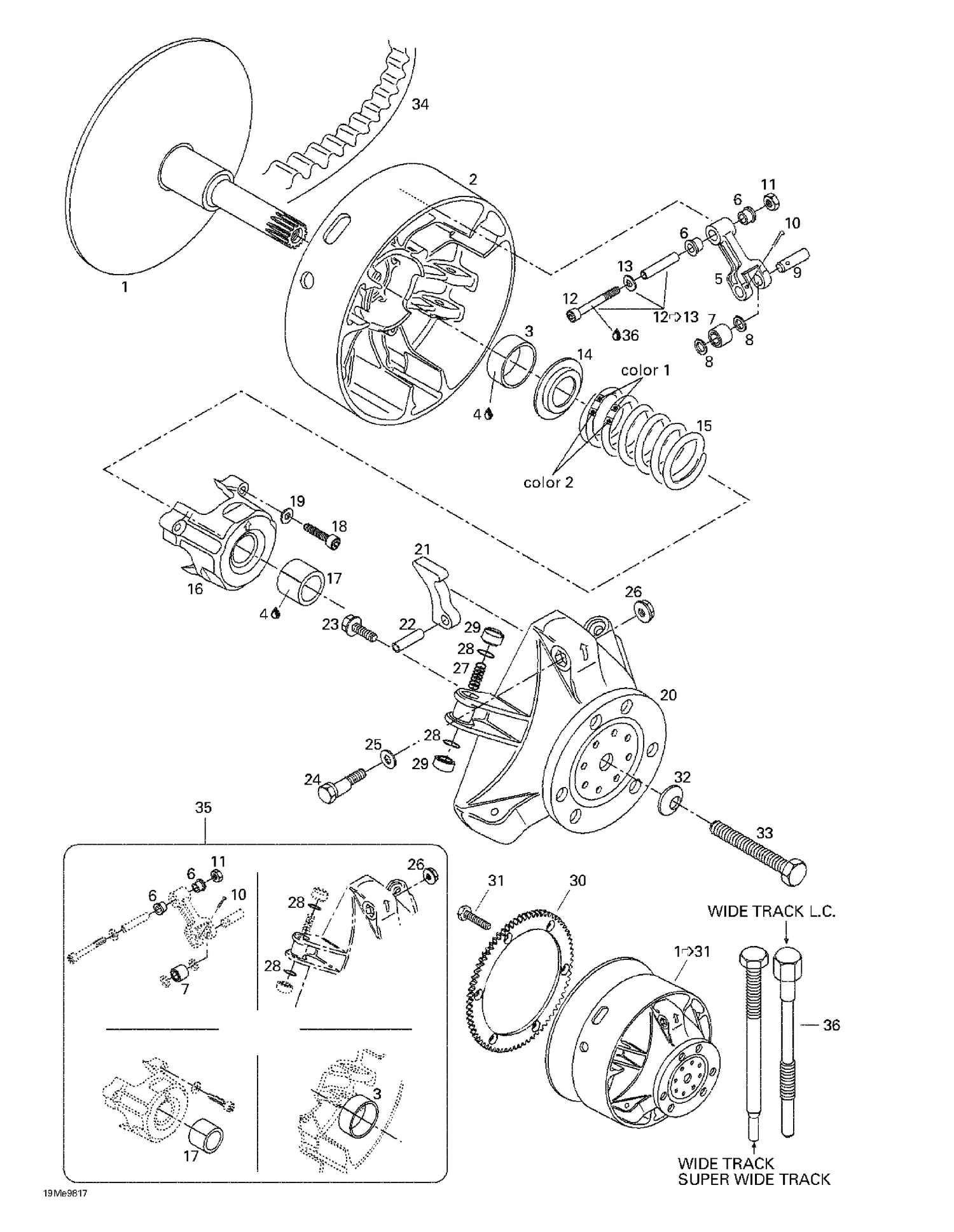

05- Drive Pulley
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 417004201 | Bushing |
| 4 | 413703100 | Loctite 609, 10 ml |
| 6 | 417004305 | Bushing |
| 7 | 417222947 | Roller This part replaces 417003900. |
| 8 | 417004302 | Stopper Washer |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 12 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership This part replaces 222965065. |
| 13 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 14 | 417005000 | Spring Seat |
| 17 | 417004501 | Bushing |
| 18 | 222964066 | Allen Screw M6 x 40 |
| 19 | 420245370 | WASHER - Call your local BRP dealership |
| 20 | 417004700 | Gouvernor Cup Ass'y |
| 22 | 732804009 | Pin M8 X 24 |
| 23 | 732601249 | Hex. Locking Screw M6 x 18 |
| 24 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 25 | 417005600 | Washer |
| 26 | 233061414 | Hex. Flange Nut M6 This part replaces 228467045. |
| 27 | 417005700 | Spring |
| 28 | 732401030 | O-Ring |
| 29 | 417223021 | Slider Shoe This part replaces 417005800. |
| 30 | 415043100 | Ring Gear (86 tooth) |
| 31 | 236281684 | Hex. Screw M8 X 16 This part replaces 732601246. |
| 34 | 414633800 | Drive Belt |
| 35 | 417008500 | Clutch Repair Kit |
