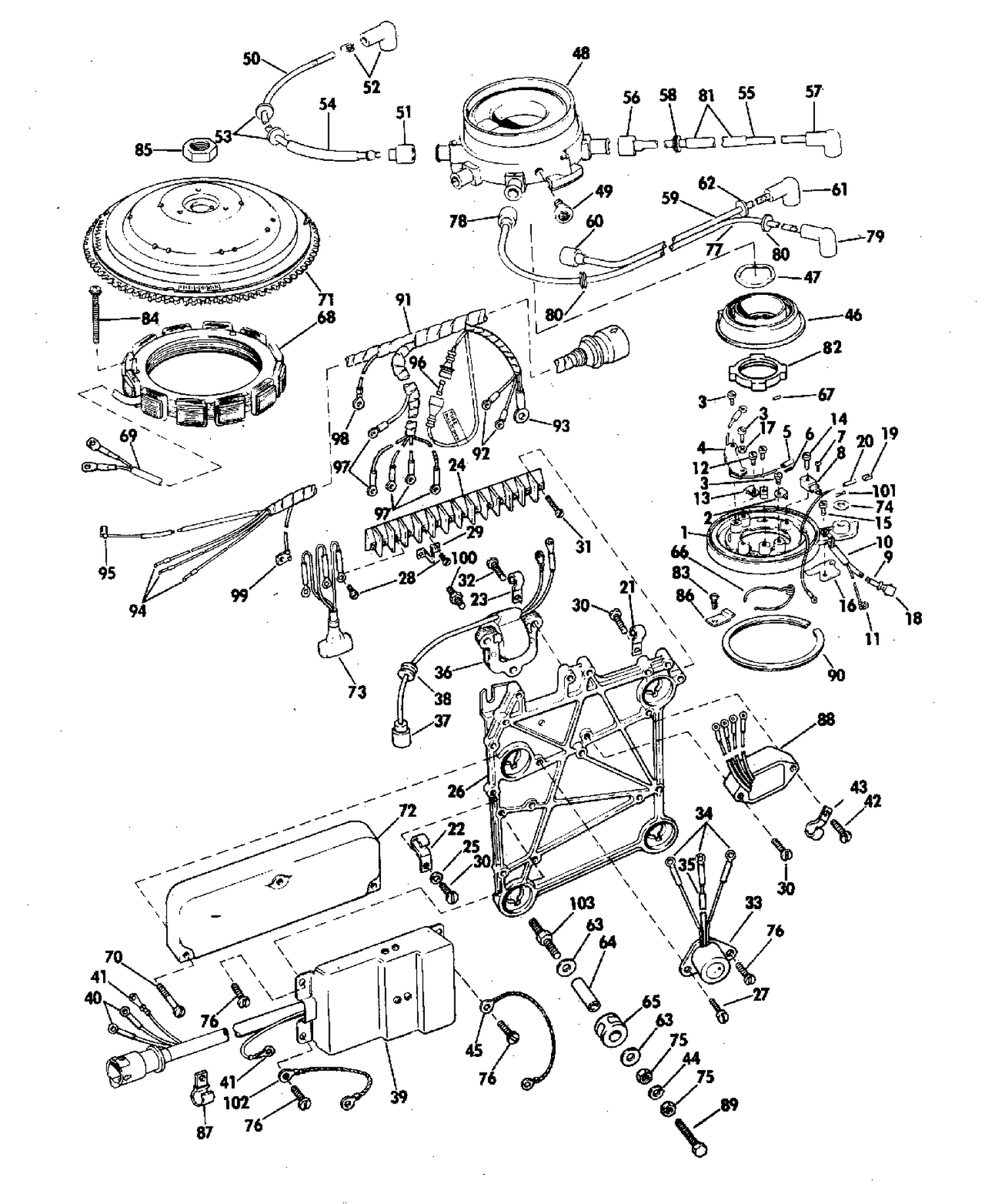

| Ref | Part Number | Description |
|---|
| 1 |
0384549 |
BASE PLATE ASSEMBLY |
| 2 |
0313585 |
CLIP |
| 3 |
0510338 |
SCREW |
| 4 |
0385008 |
SENSOR ASSEMBLY |
| 7 |
0314471 |
SCREW |
| 8 |
0382495 |
CONTACT ASSEMBLY |
| 9 |
0510924 |
SLEEVE, Lead assy |
| 10 |
0510923 |
SLEEVE, Lead assy |
| 11 |
0383531 |
LEAD ASSEMBLY |
| 12 |
0311389 |
SCREW, Lead clamps |
| 13 |
0314200 |
CLAMP |
| 15 |
0306158 |
SCREW, Clamp |
| 16 |
0316486 |
CLAMP LEADS |
| 18 |
0385200 |
LEAD ASSY |
| 21 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 23 |
0310441 |
CLAMP, CPS lead |
| 24 |
0315002 |
TERMINAL BLOCK |
| 26 |
0384521 |
BRACKER, Elct. components |
| 27 |
0302948 |
SCREW |
| 28 |
0315003 |
SCREW, Teminal to terinmal block |
| 29 |
0315004 |
FIL DE LIAISON, bornier |
| 30 |
0303311 |
SCR,Clamp,eng cable |
| 31 |
0510397 |
SCREW |
| 32 |
0309405 |
SCREW |
| 35 |
0511050 |
TUBE, Heat shrink |
| 36 |
0580740 |
COIL AND YOKE ASSEMBLY |
| 37 |
0313586 |
CONVER, H. T. lead |
| 38 |
0551426 |
GORMMET |
| 39 |
0384522 |
PULSE PACK ASSY |
| 42 |
0307154 |
RING, Terminal |
| 43 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 45 |
0376349 |
FIL, masse |
| 46 |
0382424 |
ROTOR |
| 47 |
0313667 |
SPR, Washer, flywheel to rotor |
| 48 |
0383522 |
DISTRIBUTION CAP ASSEMBLY |
| 50 |
0580761 |
LEAD ASSEMBLY, #1 spark plug |
| 51 |
0313586 |
CONVER, H. T. lead |
| 53 |
0551426 |
GORMMET |
| 54 |
0510813 |
SLEEVE |
| 55 |
0580763 |
LEAD ASSEMBLY, #3 spark plug |
| 56 |
0313586 |
CONVER, H. T. lead |
| 58 |
0551426 |
GORMMET |
| 59 |
0580762 |
LEAD ASSEMBLY, #2 spark plug |
| 60 |
0313586 |
CONVER, H. T. lead |
| 62 |
0551426 |
GORMMET |
| 64 |
0302406 |
SLEEVE |
| 65 |
0315057 |
MOUNT, Bracket |
| 66 |
0313743 |
RING, Reverse cut off |
| 67 |
0313755 |
PIN, Rotor to c/shaft |
| 68 |
0580744 |
STARTER ASSY, 9 amp |
| 69 |
0510772 |
SLEEVE |
| 71 |
0581006 |
FLYWHEEL ASSY |
| 72 |
0384955 |
COVER, Terminal board |
| 73 |
0383840 |
DIODE & LEAD ASSEMBLY |
| 74 |
0330179 |
WASHER This part replaces 0303304. |
| 76 |
0304607 |
PULSE PACK SCREW ASSY |
| 77 |
0580764 |
LEAD ASSEMBLEY =4 |
| 78 |
0313586 |
CONVER, H. T. lead |
| 80 |
0551426 |
GORMMET |
| 81 |
0510557 |
SLEEVE |
| 82 |
0316459 |
ROTOR, Distributor sensor |
| 84 |
0313740 |
SCREW, Starter and distributor |
| 85 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 86 |
0313668 |
CLAMP, Dist.base |
| 88 |
0580891 |
CLIPPER ASSEMBLY |
| 89 |
0306418 |
VIS, ancrage |
| 90 |
0313666 |
RET., Distributor base 1 |
| 91 |
0384051 |
MOTOR CABLE ASSEMBLY |
| 100 |
0311344 |
BOLT, Double end |
| 101 |
0120356 |
COTTER PI, Retainer |
| 102 |
0376349 |
FIL, masse |
| 0384547 |
0384547 |
DISTRIBUTOR BASE ASSY |
