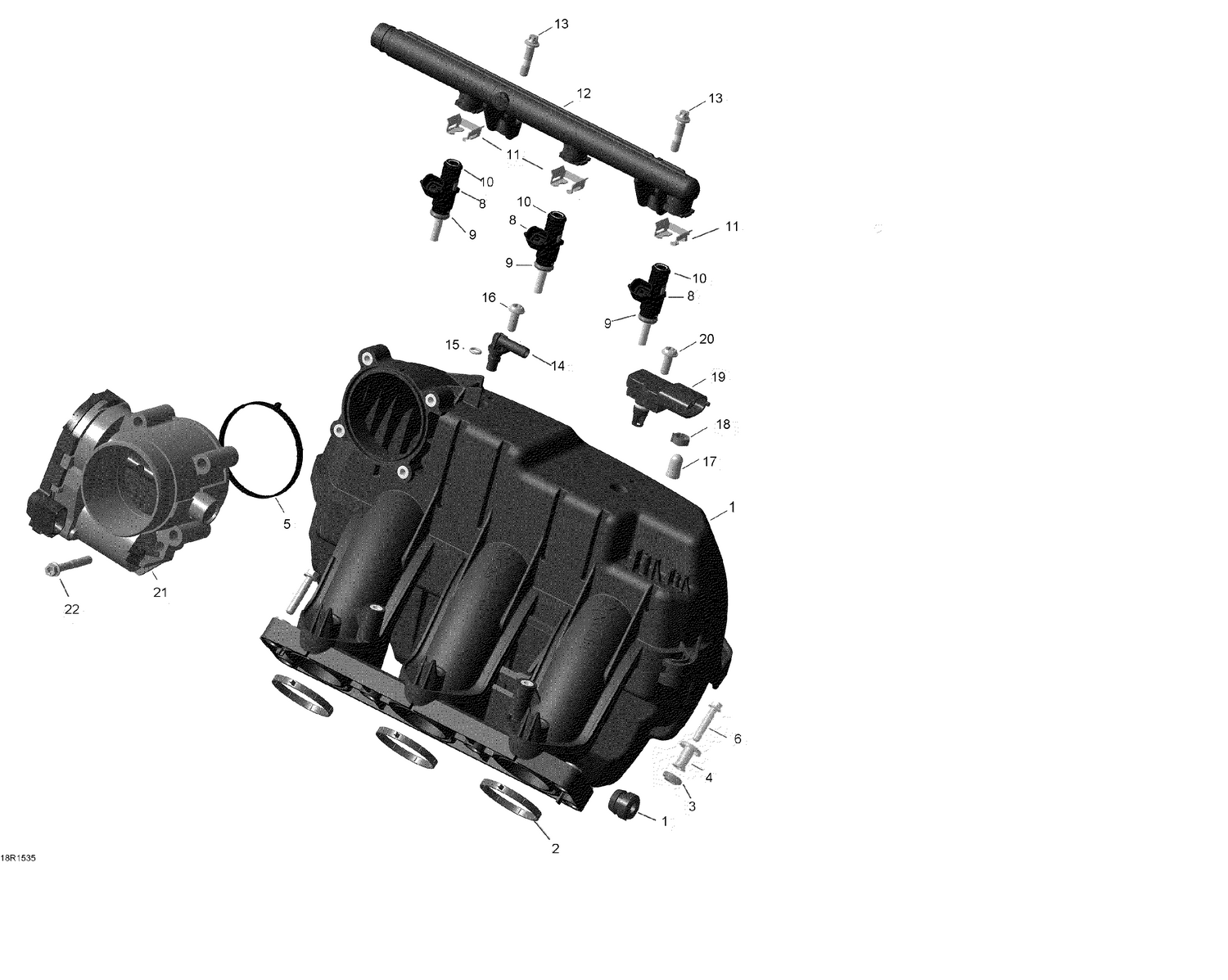

02- Air Intake Manifold and Throttle Body
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 420431901 | Gasket |
| 6 | 420440647 | Torx Flange Screw M6 X 30 |
| 7 | Not | Available As Spare Part - Silent Block |
| 9 | 420431890 | O-Ring |
| 10 | 420631220 | O-Ring |
| 11 | 420853030 | Injector Clip |
| 12 | 420274230 | Fuel Rail |
| 13 | 420440234 | Torx Flange Screw M6 X 25 |
| 14 | 420201191 | Fitting |
| 15 | 420230530 | O-Ring |
| 16 | 420641588 | Torx Flange Screw M6 X 16 |
| 17 | 420960770 | Cap |
| 18 | 420853653 | Clamp |
| 19 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 20 | 420641588 | Torx Flange Screw M6 X 16 |
| 21 | 420892596 | Throttle Body Socket Ass'y This part replaces 420892595. |
