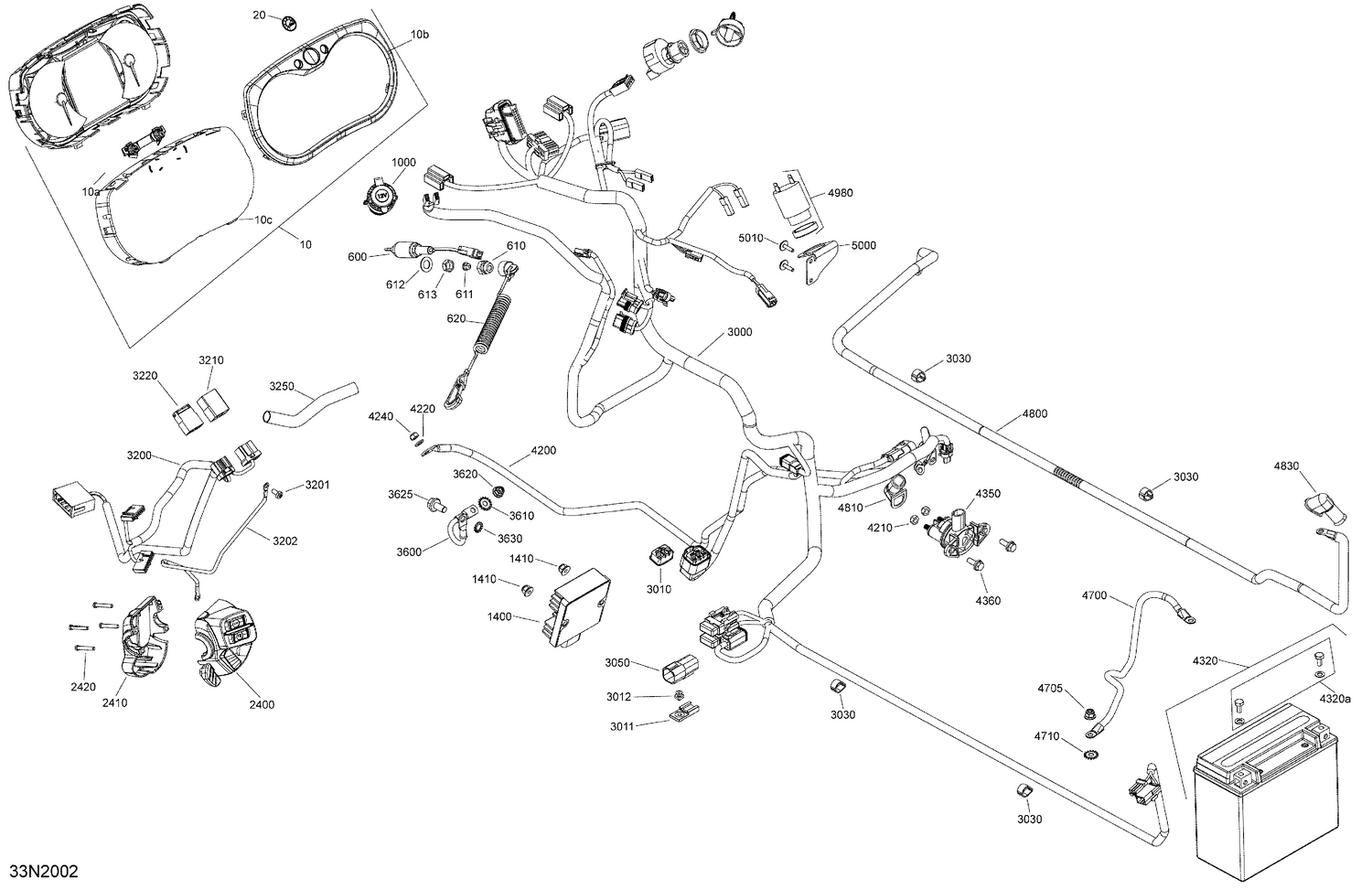

10- Electric - System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129355 | Speedometer Button |
| 10b | 415129348 | Gauge Ring |
| 10c | 415129349 | Lens |
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 500 | 515177063 | Ignition Swirch |
| 600 | 515175653 | Brake Switch |
| 610 | 515145900 | Switch Nut |
| 611 | 570151100 | Plunger Cap |
| 612 | 250200084 | Flat Washer |
| 613 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 620 | 515178283 | Cap Ass'y |
| 1000 | 710001248 | DC Outlet |
| 1400 | 515176699 | Voltage Regulator |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2400 | 515177028 | Switch Housing |
| 2410 | 515175926 | Switch Housing Plate |
| 2420 | 250000263 | Torx Screw #8-18 |
| 3000 | 515177505 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 3010 | 515176681 | Lock |
| 3011 | 270000141 | Clip |
| 3012 | 390402200 | Pop Rivet 3/16" |
| 3030 | 293740059 | Velcro |
| 3050 | 710003006 | Housing |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3202 | 515177668 | Ground Cable |
| 3210 | 515175817 | Male Terminal Housing, 8 Circuits |
| 3220 | 515175662 | Male Terminal Housing, 6 Circuits |
| 3250 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 3600 | 515176745 | Ground Wire |
| 3610 | 250200041 | Lock Washer Serrated M6 |
| 3620 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3625 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 3630 | 234481608 | Serrated Lock Washer 8 mm |
| 4200 | 515177606 | BATTERY WIRE - Call your local BRP dealership |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4320a | 250000282 | Battery Bolt Kit |
| 4350 | 278003012 | Starter Relay |
| 4360 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 4700 | 515176780 | Ground Wire |
| 4705 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4710 | 250200041 | Lock Washer Serrated M6 |
| 4800 | 515176805 | BATTERY CABLE - Call your local BRP dealership |
| 4810 | 710000495 | Protector Cap |
| 4830 | 710000495 | Protector Cap |
| 4980 | 414792102 | Back-Up Alarm |
| 5000 | 515176822 | REVERSE BUZZ HOLDER - Call your local BRP dealership |
| 5010 | 250000725 | Screw M4 X 16 |
