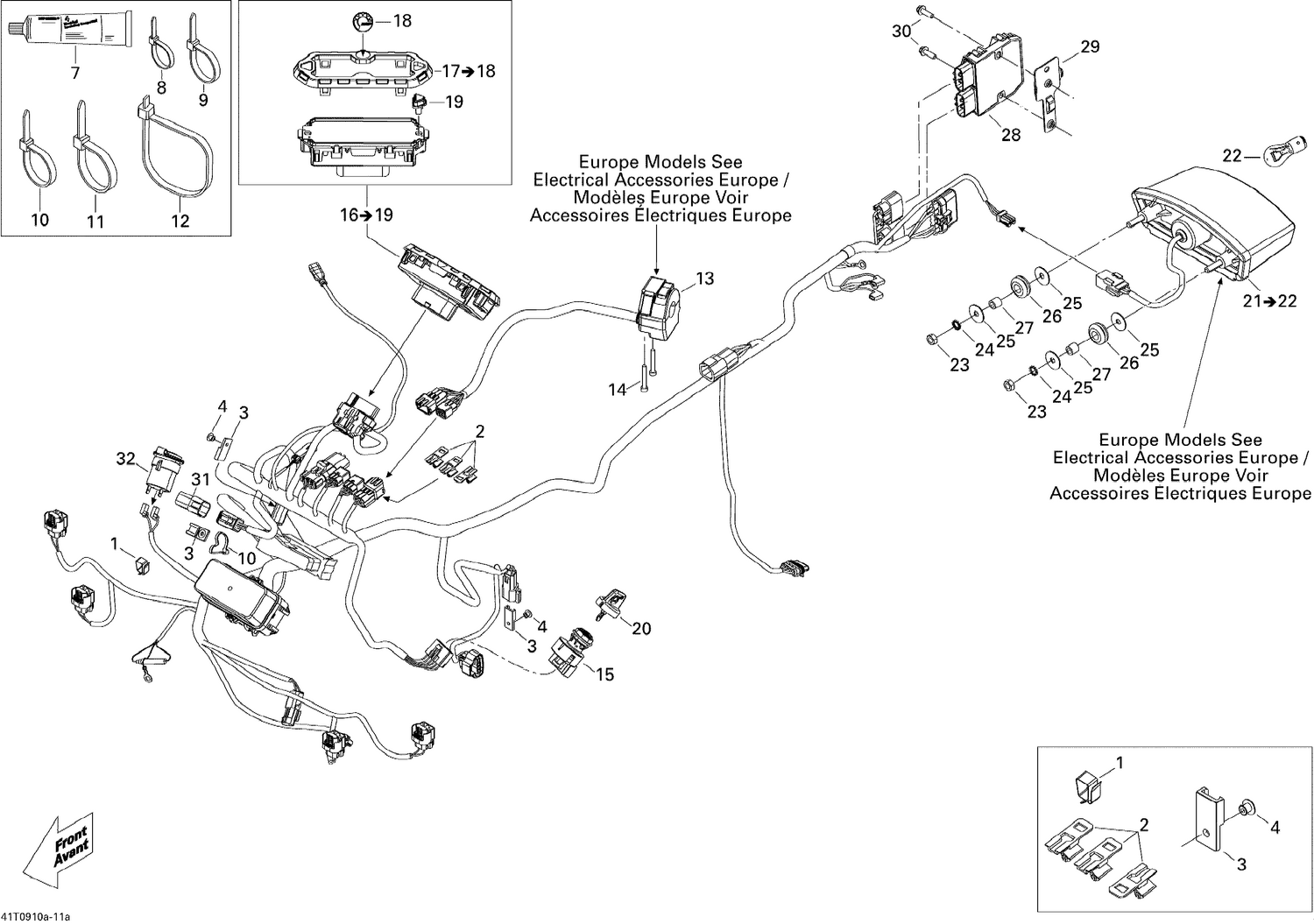

10- Electrical Accessories
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414227300 | Clip |
| 2 | 515175283 | Housing Support |
| 3 | 270000141 | Clip |
| 4 | 390402400 | Pop Rivet 3/16" |
| 7 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 8 | 293750001 | Tie Wrap 94 mm |
| 9 | 293750009 | Tie-Rap 173 mm |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 293750008 | Tie Wrap 368 mm |
| 12 | 293750041 | Tie-rap 627 mm |
| 15 | 710002324 | Ignition Switch This part replaces 710001421. |
| 18 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 19 | Not | Available As Spare Part - Button |
| 20 | 710000817 | Black, Electronic Key |
| 23 | 232061600 | Hex. Nut M6 |
| 24 | 234461608 | External Serrated Lock Washer 6 mm |
| 25 | 224060201 | Flat Washer |
| 26 | 709000582 | Grommet This part replaces 293720053. |
| 27 | 293900105 | Bushing This part replaces 293900045. |
| 28 | 710001103 | Voltage Regulator |
| 29 | 710001262 | RECTIFIER SUPPORT - Call your local BRP dealership |
| 30 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 31 | 278002704 | Diagnostic Connector This part replaces 278002148. |
