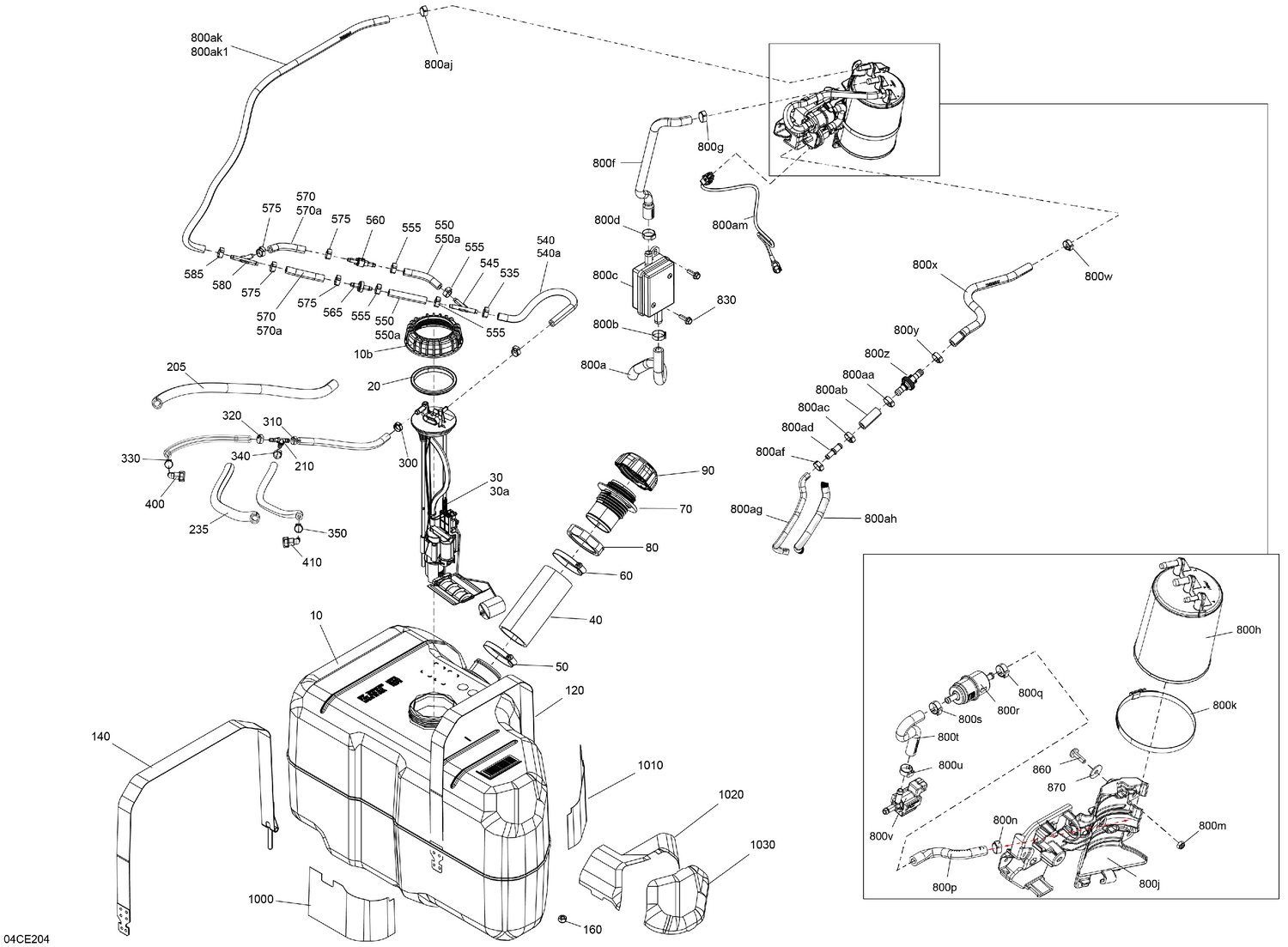

| Ref | Part Number | Description |
|---|
| 10b |
709000328 |
Fuel Pump Module Nut |
| 20 |
709000208 |
Seal |
| 30a |
715900322 |
Prefilter Fuel Pump Kit 86mm Long |
| 40 |
709000595 |
Hose Filler Neck |
| 50 |
293650081 |
Norma Clamp |
| 60 |
293650081 |
Norma Clamp |
| 70 |
709000867 |
Filler Neck |
| 80 |
293600206 |
Fuel Filler Neck Nut |
| 90 |
709000868 |
Fuel Cap |
| 120 |
709001291 |
Retaining Strap |
| 140 |
709001292 |
Retaining Strap |
| 160 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 205 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 210 |
709001329 |
Y Fitting |
| 235 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 300 |
293650047 |
Crimp Clamp, 15.3-706R |
| 310 |
293650047 |
Crimp Clamp, 15.3-706R |
| 320 |
293650047 |
Crimp Clamp, 15.3-706R |
| 330 |
293650047 |
Crimp Clamp, 15.3-706R |
| 340 |
293650047 |
Crimp Clamp, 15.3-706R |
| 350 |
293650047 |
Crimp Clamp, 15.3-706R |
| 400 |
275500921 |
Quick Disconnect |
| 410 |
275500921 |
Quick Disconnect |
| 535 |
293650042 |
Oetiker Clamp |
| 540a |
219704611 |
Hose 6.35Mm 5000Mm Long |
| 545 |
293710059 |
Y-Fitting |
| 550a |
219704611 |
Hose 6.35Mm 5000Mm Long |
| 555 |
293650042 |
Oetiker Clamp |
| 560 |
513033469 |
Check Valve |
| 565 |
275500398 |
Check Valve |
| 570a |
219704611 |
Hose 6.35Mm 5000Mm Long |
| 575 |
293650042 |
Oetiker Clamp |
| 580 |
293710059 |
Y-Fitting |
| 585 |
293650042 |
Oetiker Clamp |
| 800a |
707800965 |
Hose Fuel Vapour Canister |
| 800aa |
293650053 |
Crimp Clamp |
| 800ab |
709001638 |
Hose |
| 800ac |
293650053 |
Crimp Clamp |
| 800ad |
709000933 |
Flow Reducer |
| 800af |
293650047 |
Crimp Clamp, 15.3-706R |
| 800ag |
709001631 |
Formed Hose |
| 800ah |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 800aj |
293650046 |
Oetiker Clamp |
| 800ak1 |
219704611 |
Hose 6.35Mm 5000Mm Long |
| 800am |
710009876 |
Wiring Harness |
| 800b |
293650186 |
Oetiker Clamp |
| 800c |
709000524 |
Air Filter |
| 800d |
293650186 |
Oetiker Clamp |
| 800f |
709000850 |
Formed Hose |
| 800g |
293650053 |
Crimp Clamp |
| 800h |
709001673 |
Charcoal Canister This part replaces 709001294. |
| 800j |
709001498 |
Charcoal Canister Support |
| 800k |
293650054 |
Tridon Clamp |
| 800m |
232561600 |
Hex. Elastic Stop Nut M6 |
| 800n |
293650042 |
Oetiker Clamp |
| 800p |
709001496 |
Charcoal Canister Hose |
| 800q |
293650047 |
Crimp Clamp, 15.3-706R |
| 800r |
513034047 |
Fuel Filter |
| 800s |
293650047 |
Crimp Clamp, 15.3-706R |
| 800t |
709001497 |
Charcoal Canister Hose |
| 800u |
293650047 |
Crimp Clamp, 15.3-706R |
| 800v |
709001449 |
Purge Valve |
| 800w |
293650047 |
Crimp Clamp, 15.3-706R |
| 800x |
709001541 |
Formed Hose |
| 800y |
293650053 |
Crimp Clamp |
| 800z |
275500941 |
Check Valve |
| 830 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 860 |
250000712 |
Torx Screw M6 X 20 |
| 870 |
250200162 |
Flat Washer M6.6 X 22 |
| 1000 |
707002670 |
Heat Shield |
| 1010 |
707002671 |
Heat Shield |
| 1020 |
707002673 |
Heat Shield |
