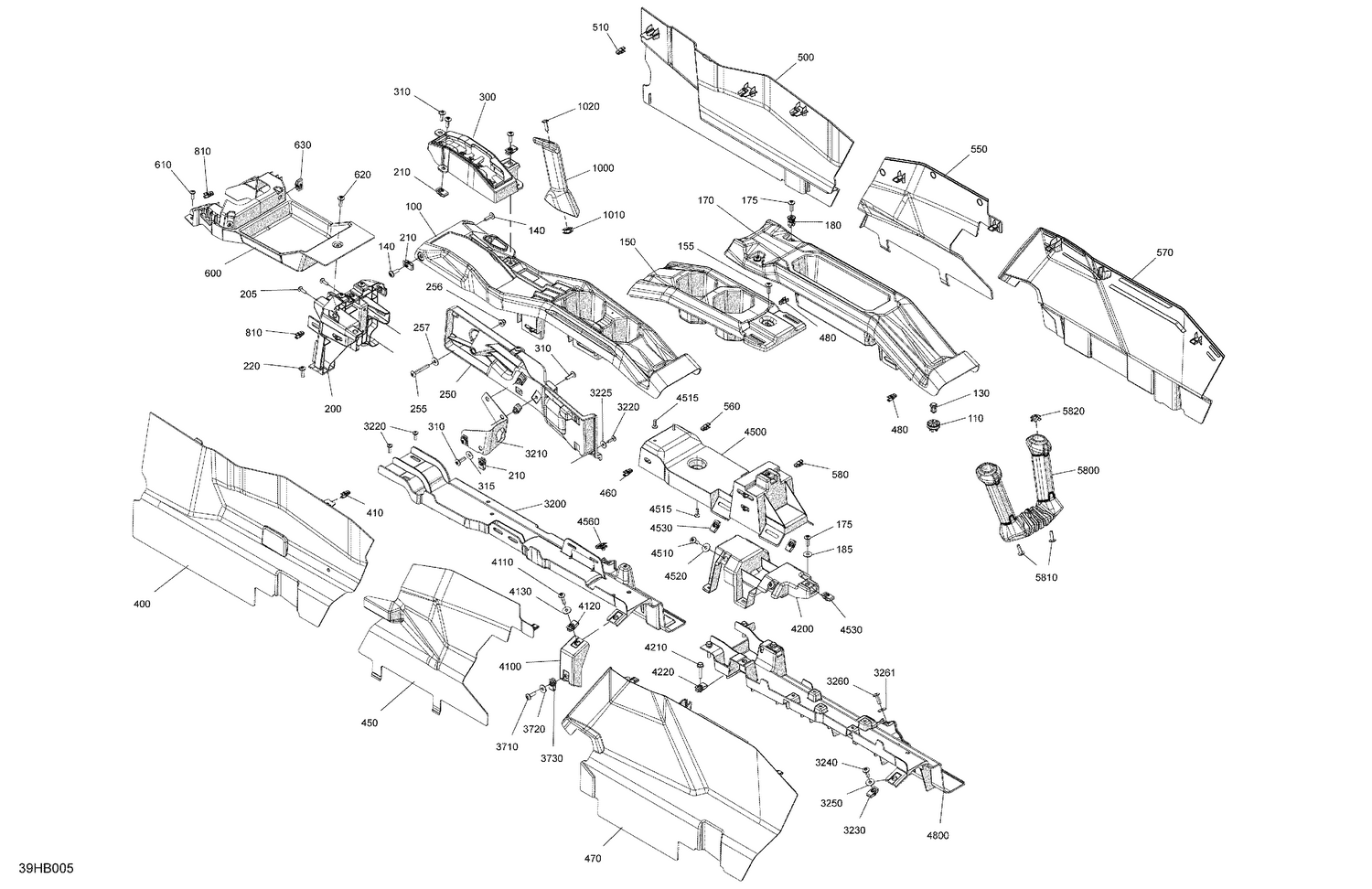

07- Cab Interior - Center Console
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 707900395 | Front Console |
| 110 | 707900133 | Insert |
| 130 | 293150230 | Tuflok Plastic Rivet |
| 140 | 250000722 | Torx Screw M6 X 20 |
| 150 | 707900492 | Middle Console |
| 155 | 250000722 | Torx Screw M6 X 20 |
| 170 | 707900568 | Rear Console |
| 175 | 250000722 | Torx Screw M6 X 20 |
| 180 | 705016606 | Insert |
| 185 | 234062670 | Stainless Steel Flat Washer |
| 200 | 707900459 | Front Central Console Support |
| 205 | 250000720 | Torx Screw K50 X 16 |
| 210 | 250100198 | Panel Nut M6 X 1.0 |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 250 | 707900488 | Shifter Gate Support |
| 255 | 250000748 | Torx Screw M6 X 45 |
| 256 | 233261466 | Hex. Flange Elastic Nut M6 |
| 257 | 234062670 | Stainless Steel Flat Washer |
| 300 | 707900644 | Lever Indicator |
| 310 | 250000722 | Torx Screw M6 X 20 |
| 315 | 234062670 | Stainless Steel Flat Washer |
| 400 | 707900396 | LH Lateral Dash Panel |
| 410 | 705010721 | Clip |
| 450 | 707900497 | LH Middle Lateral Dash Panel |
| 460 | 705010721 | Clip |
| 470 | 707900571 | LH Rear Lateral Dash Panel |
| 480 | 705010721 | Clip |
| 500 | 707900397 | RH Lateral Dash Panel |
| 510 | 705010721 | Clip |
| 550 | 707900498 | RH Middle Lateral Dash Panel |
| 560 | 705010721 | Clip |
| 570 | 707900572 | RH Rear Lateral Dash Panel |
| 580 | 705010721 | Clip |
| 600 | 707900460 | Front Top Console This part replaces 707900460. |
| 610 | 250000720 | Torx Screw K50 X 16 |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 630 | 250100198 | Panel Nut M6 X 1.0 |
| 810 | 705010721 | Clip |
| 1000 | 707900011 | Passenger Handle |
| 1010 | 707900048 | Connector Tube |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 3200 | 707900710 | Central Support Hose |
| 3210 | 707900478 | Cable Support |
| 3220 | 250000720 | Torx Screw K50 X 16 |
| 3225 | 250200025 | Washer M5 |
| 3230 | 250100198 | Panel Nut M6 X 1.0 |
| 3240 | 250000722 | Torx Screw M6 X 20 |
| 3250 | 234062670 | Stainless Steel Flat Washer |
| 3260 | 250000722 | Torx Screw M6 X 20 |
| 3261 | 234062670 | Stainless Steel Flat Washer |
| 3710 | 250000722 | Torx Screw M6 X 20 |
| 3720 | 234062670 | Stainless Steel Flat Washer |
| 3730 | 250100198 | Panel Nut M6 X 1.0 |
| 4100 | 707900501 | Central Console Support |
| 4110 | 250000807 | Torx Truss Screw M6 X 25 |
| 4120 | 250100198 | Panel Nut M6 X 1.0 |
| 4130 | 234062670 | Stainless Steel Flat Washer |
| 4200 | 707900569 | Rear Console Support |
| 4210 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 4220 | 250100198 | Panel Nut M6 X 1.0 |
| 4500 | 707900573 | Console Support |
| 4510 | 250000722 | Torx Screw M6 X 20 |
| 4515 | 250000720 | Torx Screw K50 X 16 |
| 4520 | 234062670 | Stainless Steel Flat Washer |
| 4530 | 250100198 | Panel Nut M6 X 1.0 |
| 4560 | 250100198 | Panel Nut M6 X 1.0 |
| 4800 | 707900711 | Support Hose Central |
| 5800 | 707900575 | Passenger Handle |
| 5810 | 250000722 | Torx Screw M6 X 20 |
