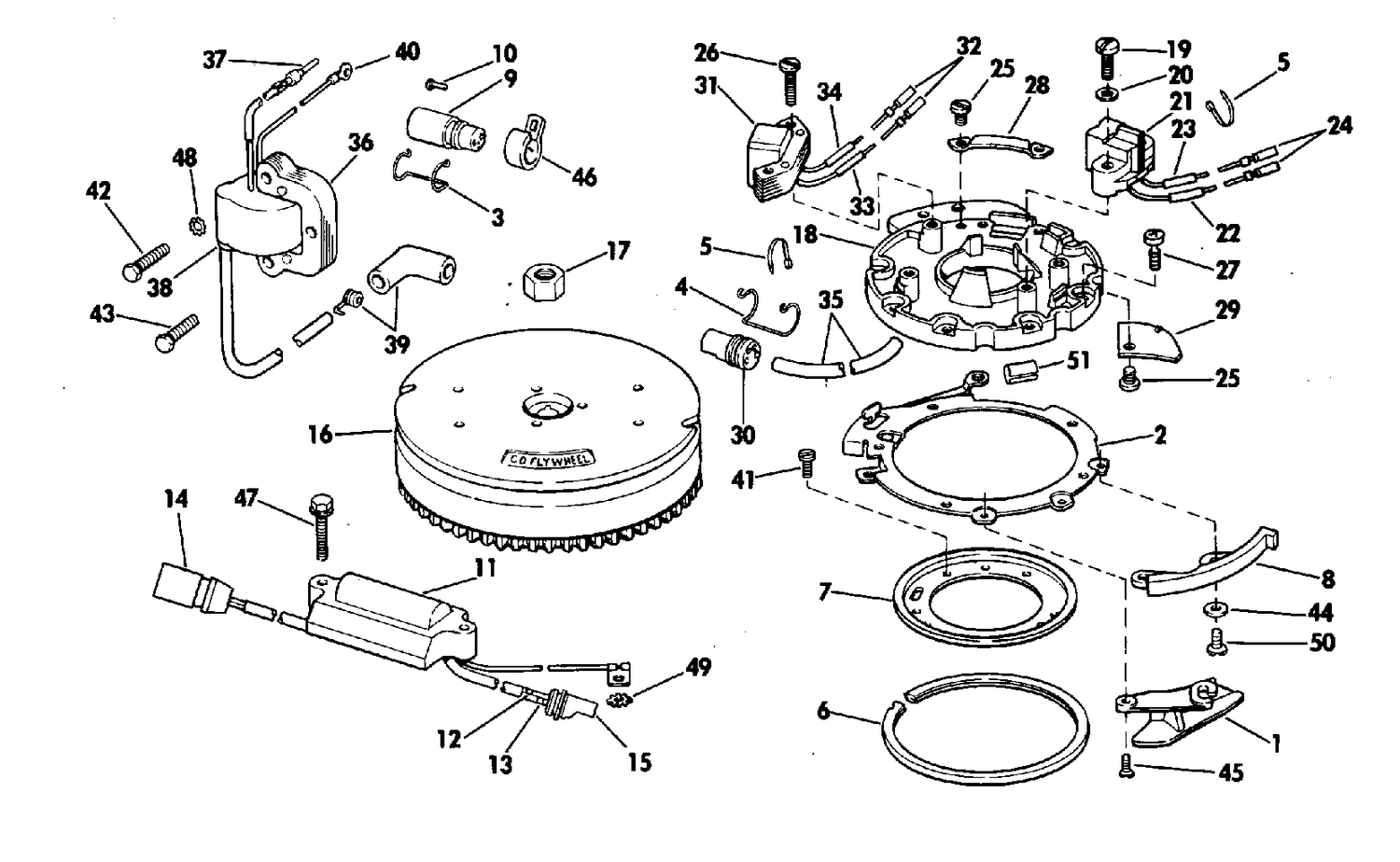

| Ref | Part Number | Description |
|---|
| 1 |
0322282 |
CAM,Throttle control |
| 2 |
0387793 |
RETAINER & LINK ASSY |
| 4 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 5 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 6 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 7 |
0332063 |
PLATE, Support This part replaces 0321663. |
| 8 |
0321680 |
CAM, Starter interlock |
| 11 |
0581924 |
POWER PACK ASSEMBLY |
| 12 |
0511071 |
CLIP |
| 13 |
0511072 |
CLIP |
| 14 |
0511449 |
COMMECTOR, Coil to power pack |
| 16 |
0583916 |
FLYWHEEL ASSEMBLY This part replaces 0581675. |
| 17 |
0130541 |
NUT, Flywheel |
| 21 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 27 |
0511460 |
VIS, dispositif de retenue |
| 28 |
0511458 |
COLLIER, fils |
| 29 |
0511459 |
CACHE, fils |
| 31 |
0581670 |
CHARGE COIL This part replaces 0581635. |
| 35 |
0511482 |
SLEEVE |
| 36 |
0581686 |
COIL ASSY. |
| 38 |
0510999 |
SLEEVE |
| 40 |
0510767 |
RING TERMINAL |
| 41 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 42 |
0306049 |
SCREW |
| 43 |
0314951 |
SCREEN, Mfld. to c'case |
| 44 |
0306413 |
WASHER |
| 45 |
0322285 |
PLATE & SLEEVE ASSY. |
| 47 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0321664. |
| 0581629 |
0582029 |
CHARGE COIL & PLATE ASSY This part replaces 0581629. |
