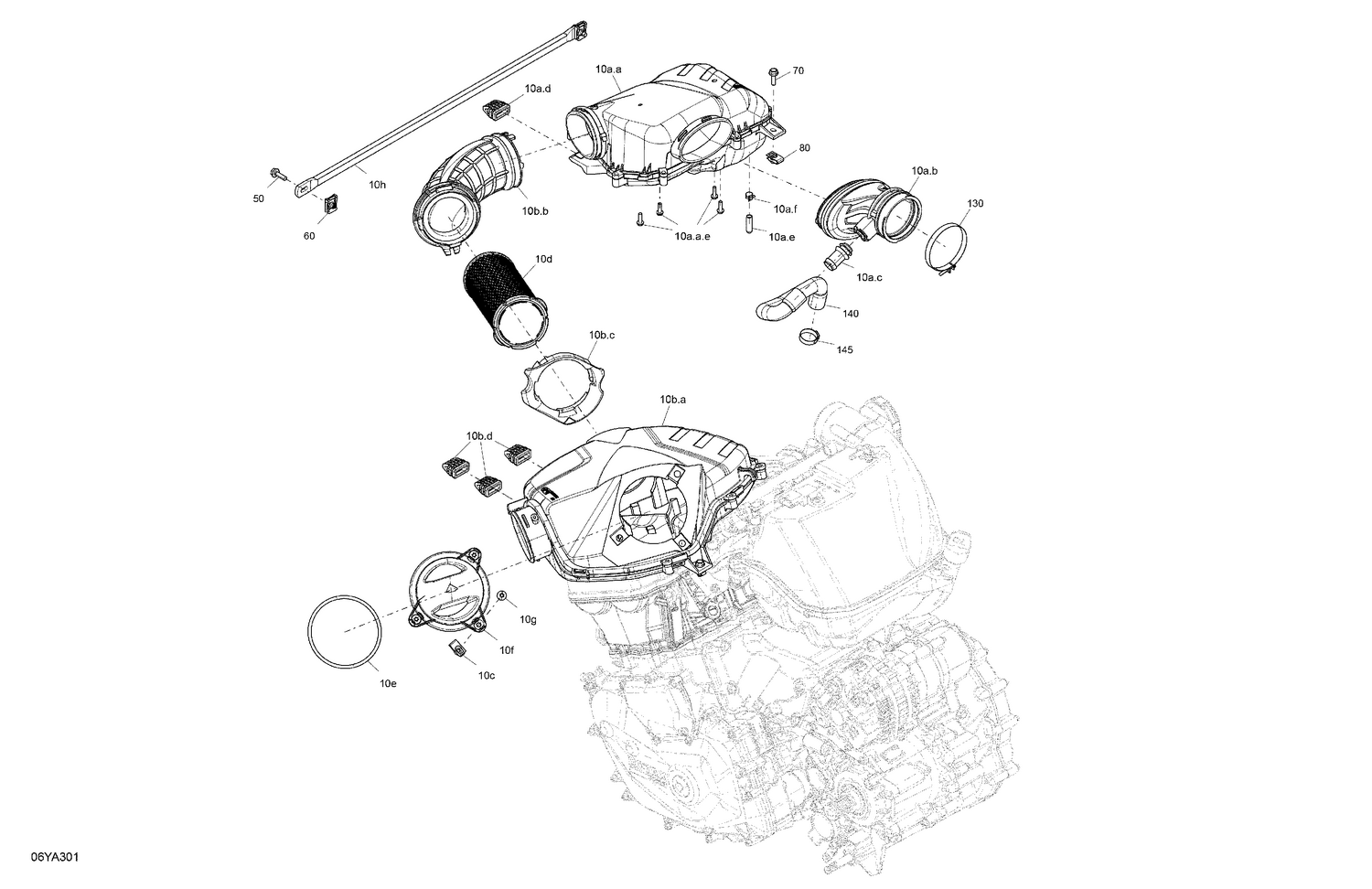

02- Engine - Air Intake
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 250100198 | Panel Nut M6 X 1.0 |
| 10d | 707800483 | Air Filter |
| 10e | 707800455 | O-ring This part replaces 707800831. |
| 10f | 707800484 | Cap |
| 10g | 250000348 | Torx Truss Screw M6 X 16 |
| 10h | 707800432 | Link Rod |
| 50 | 207662044 | Hex. Flange Screw M6 X 20 |
| 60 | 250100208 | Panel Nut M6 X 1.0 |
| 70 | 207662044 | Hex. Flange Screw M6 X 20 |
| 80 | 250100198 | Panel Nut M6 X 1.0 |
| 130 | 508000346 | Gemi Clamp |
| 140 | 707800824 | Formed Hose |
