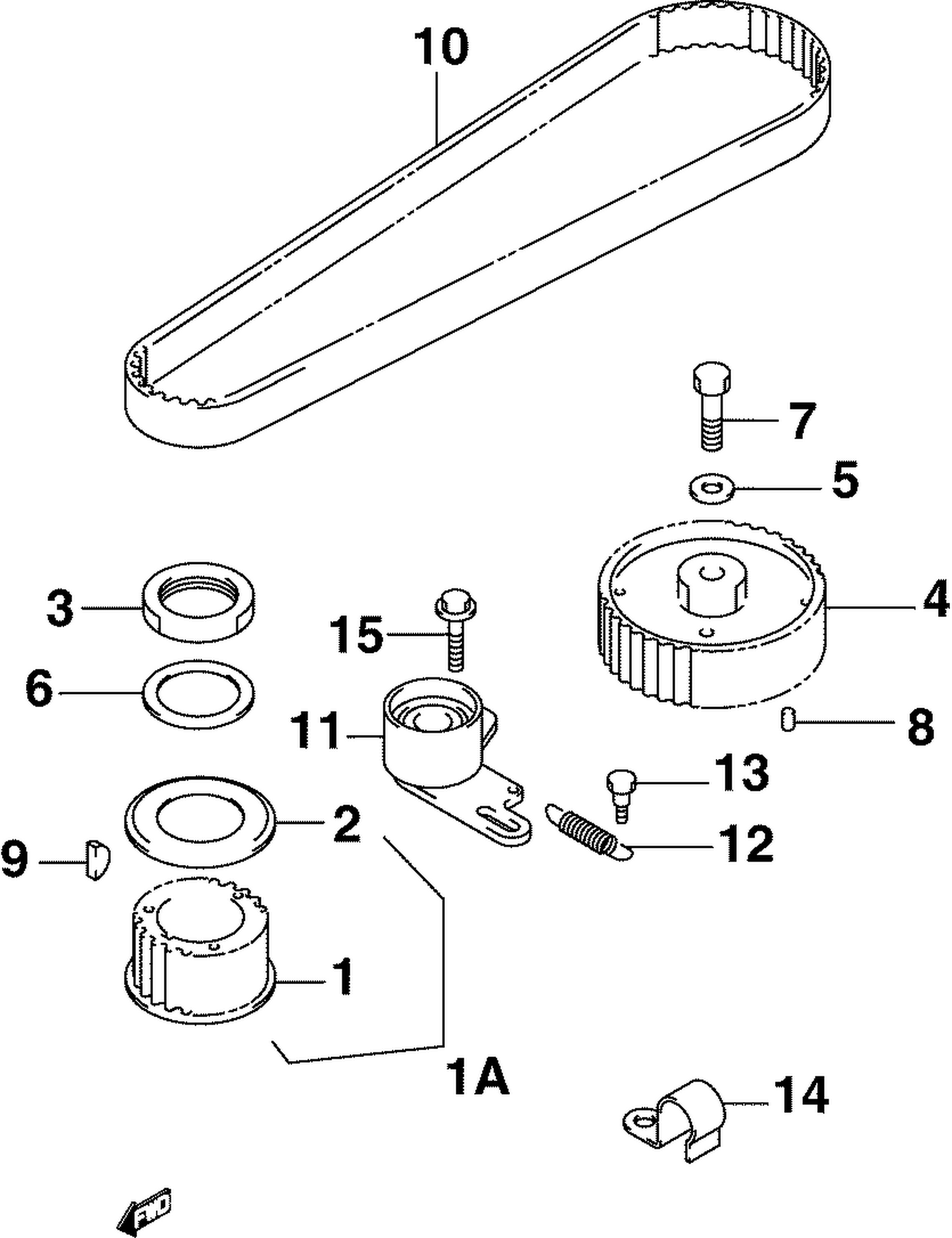

TIMING BELT/PULLEY
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1A | 5005436 | KIT, Pulley and guide |
| 3 | 5030656 | NUT, Pulley |
| 4 | 5032445 | PULLEY, Camshaft |
| 5 | 5030439 | WASHER (12.5X24X3.2mm) |
| 6 | 5030463 | WASHER |
| 7 | 5030983 | BOLT |
| 8 | 5031015 | PIN |
| 9 | 5031024 | KEY |
| 10 | 5030660 | BELT, Timing |
| 11 | 5030661 | TENSIONER, Timimg belt |
| 12 | 5032895 | SPRING, Tensioner |
| 13 | 5032849 | BOLT (6X12mm) |
| 14 | 5030586 | CLAMP |
