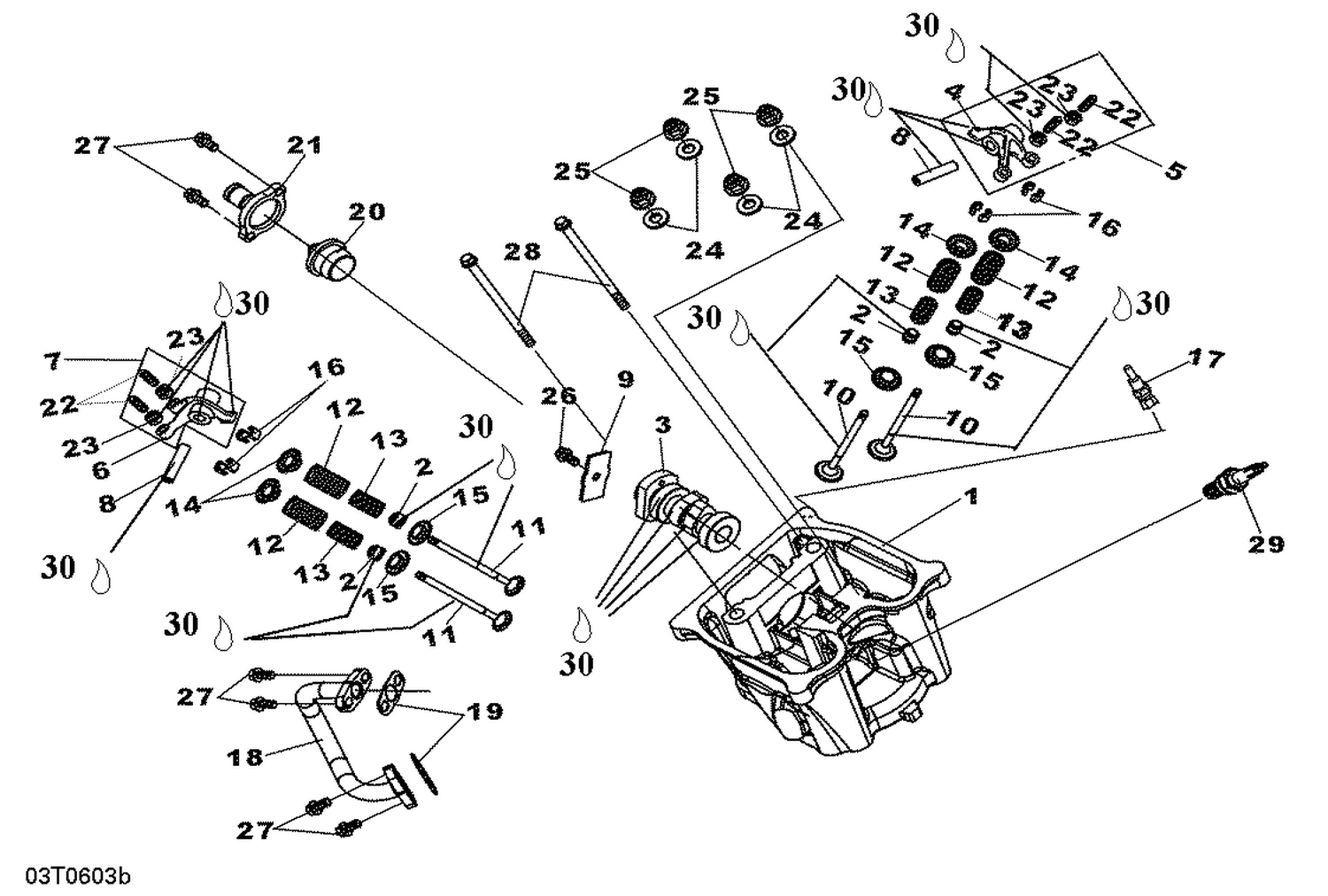

01- Cylinder Head and Valve
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S12200RB1000 | Cylinder Head Ass'y |
| 2 | S12209H6B900M2 | Valve Stem Seal Cap This part replaces S12209H6B000. |
| 3 | S14100RB1000 | Cam Shaft |
| 4 | NASP/NDPR | Not Available As Spare Parts |
| 5 | S14431RB1000 | INTAKE VALVE ROCKER ARM - Call your local BRP dealership This part replaces S1443ARB1000. |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | S1444ARB1000 | VALVE ROCKER ARM EX. - Call your local BRP dealership |
| 8 | S14451HMA000 | Rocker Arm Shaft |
| 9 | S14457HMA000 | Cam Shaft Setting Plate |
| 10 | S14711HMA000 | Intake Valve |
| 11 | S14721RFS000 | Exhaust Valve This part replaces S14721HMA000. |
| 12 | S14751HMA000 | Valve Outer Spring |
| 13 | S14761HMA000 | Valve Inner Spring |
| 14 | S14771M8Q000 | Valve Spring Retainer |
| 15 | S14777KN7670 | Valve Spring Seat |
| 16 | S14781M9Q000 | Valve Cotter |
| 17 | S37750PC1004 | Temperature Sensor |
| 18 | S18647RB1000 | AIR PIPE COMP - Call your local BRP dealership |
| 19 | S18654N14000 | Air Pipe Gasket |
| 20 | S19300HMA000 | Thermostat |
| 21 | S19315KJ9000 | Thermostat Cover |
| 22 | NASP/NDPR | Not Available As Spare Parts |
| 23 | NASP/NDPR | Not Available As Spare Parts |
| 24 | S90442HMA000 | Sealing Washer 10.5 mm |
| 25 | S9405010080 | Flanged Nut 10 mm |
| 26 | S960010601408 | Flanged Bolt M6 X 14 |
| 27 | S960010601600 | Flanged Bolt M6 X 16 |
| 28 | S960010609000 | Flanged Bolt M6 X 90 |
| 29 | 219703176 | Spark Plug NGK CR8E This part replaces 707000306. |
