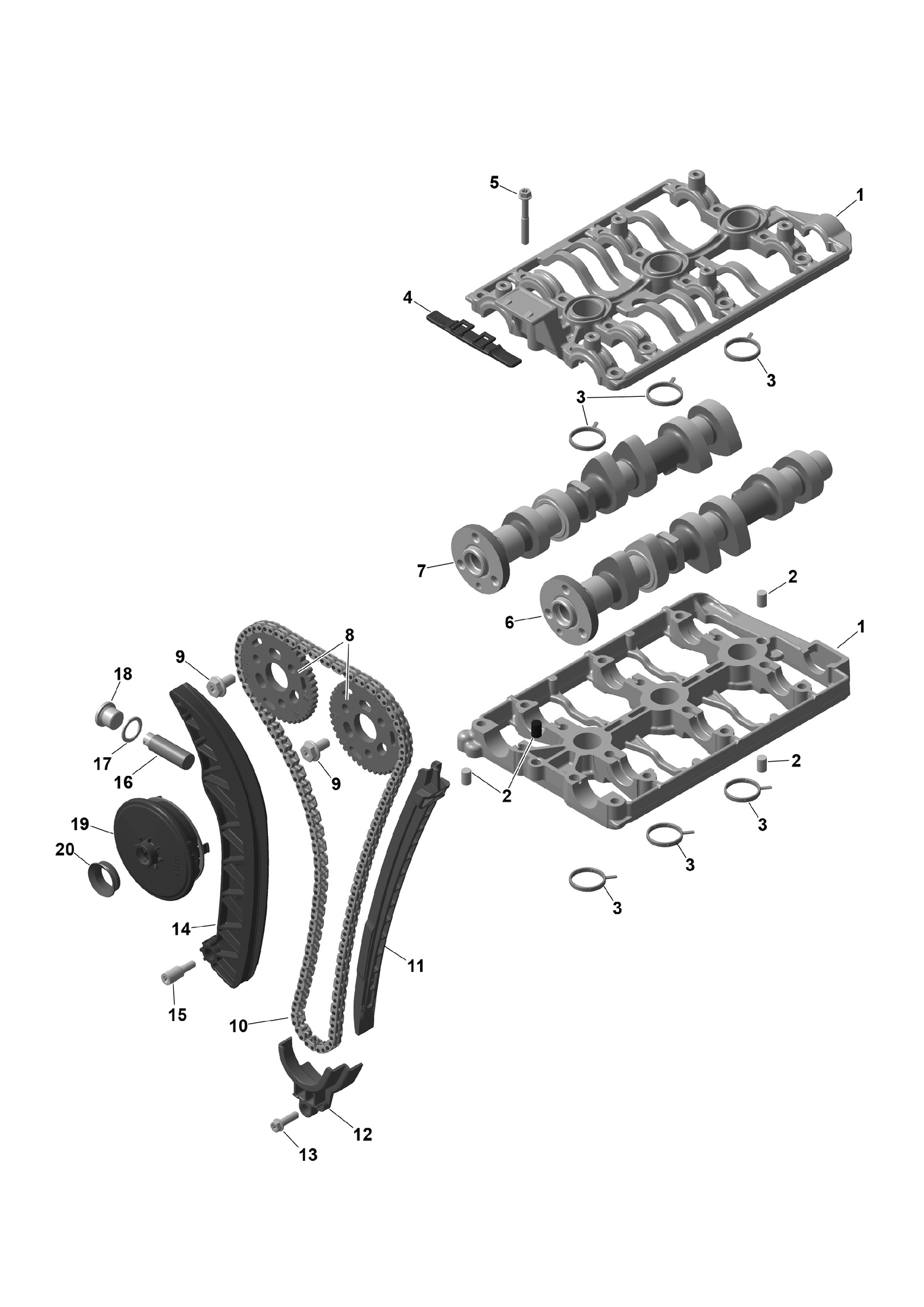

01- ROTAX - Valve Train
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632014 | Center Pin 8 X 12 |
| 3 | 420431760 | Camshaft Housing Gasket |
| 4 | 420936541 | Chain Guide Upper |
| 5 | 420440321 | Hex Torx Flange Screw M6X50 |
| 6 | 420820450 | Camshaft Exhaust |
| 7 | 420820440 | Camshaft Intake |
| 8 | 420253020 | Timing Gear 42 Teeth |
| 9 | 420440850 | Hex Torx Flange Screw M8X16 |
| 10 | 420297075 | Silent Chaine |
| 11 | 420236233 | Chain Guide |
| 12 | 420236093 | Chain Guide |
| 13 | 420441835 | Torx Flange Screw M6 X 20 |
| 14 | 420236226 | Chain Tension Guide |
| 15 | 420240945 | Bearing Screw M6 |
| 16 | 420236392 | Chain Tensioner Ass'y |
| 17 | 420430624 | Oil Pressure Regulator Gasket Ring |
| 18 | 420240234 | Plug Screw M16 X 1.5 |
| 19 | 420256816 | Oil Separator Ass'y |
