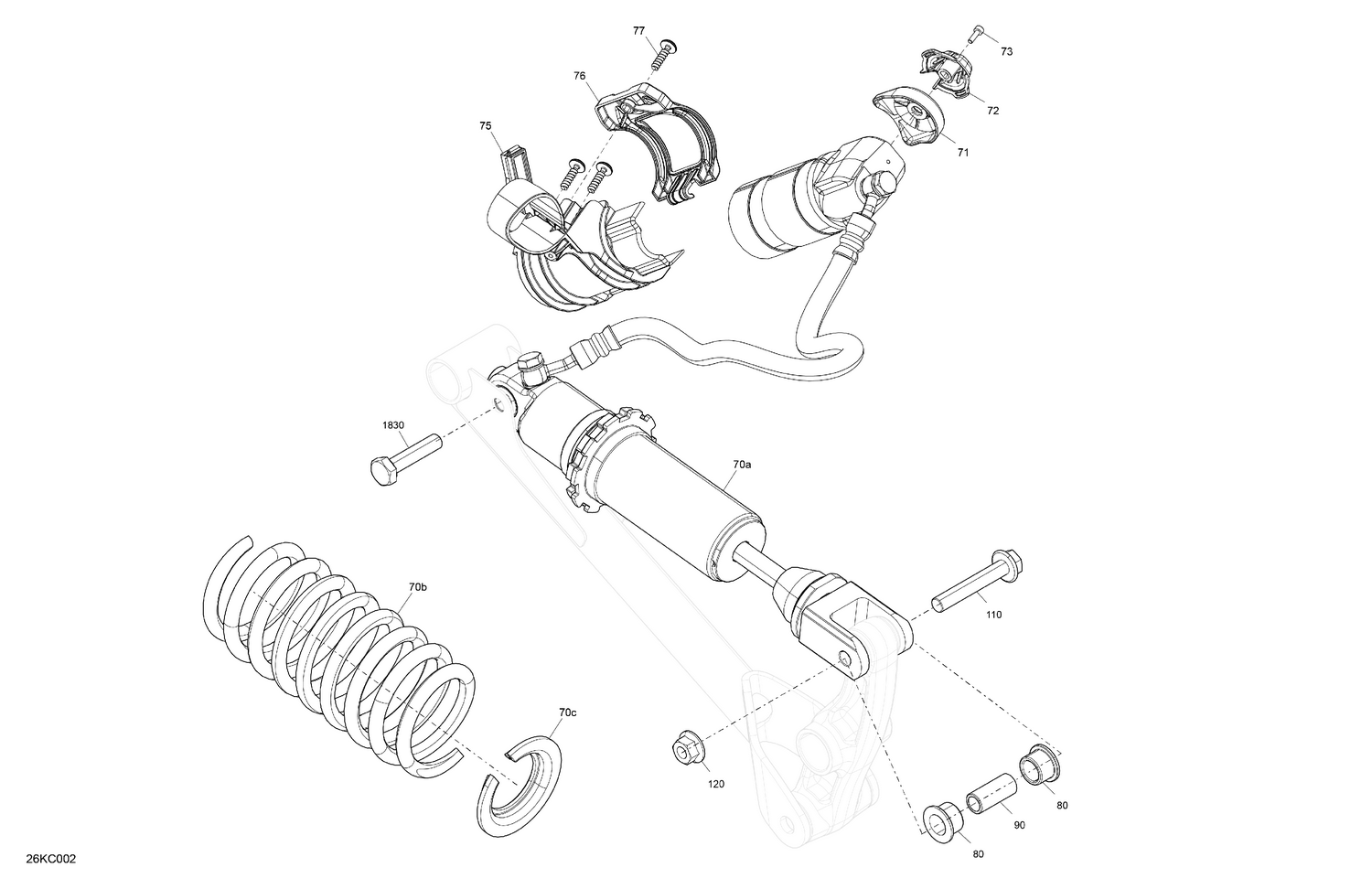

05- Suspension - Rear Shock
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 70a | 706004355 | Rear Adjustable Shock Absorber |
| 70b | 706004357 | Compression Spring |
| 70c | 706000567 | Spring Stopper |
| 71 | 706004533 | Gauge |
| 72 | 706004415 | Adjustment Button |
| 73 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 75 | 706004369 | Primarey Tank Support Shock Absorber |
| 76 | 706004531 | Ext Tank Support Shock Absorber |
| 77 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 80 | 503189117 | Urethane Bushing |
| 90 | 706002678 | Spacer |
| 110 | 207506056 | Hex. Flange Screw M10 X 60, Scotch Grip |
| 120 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
