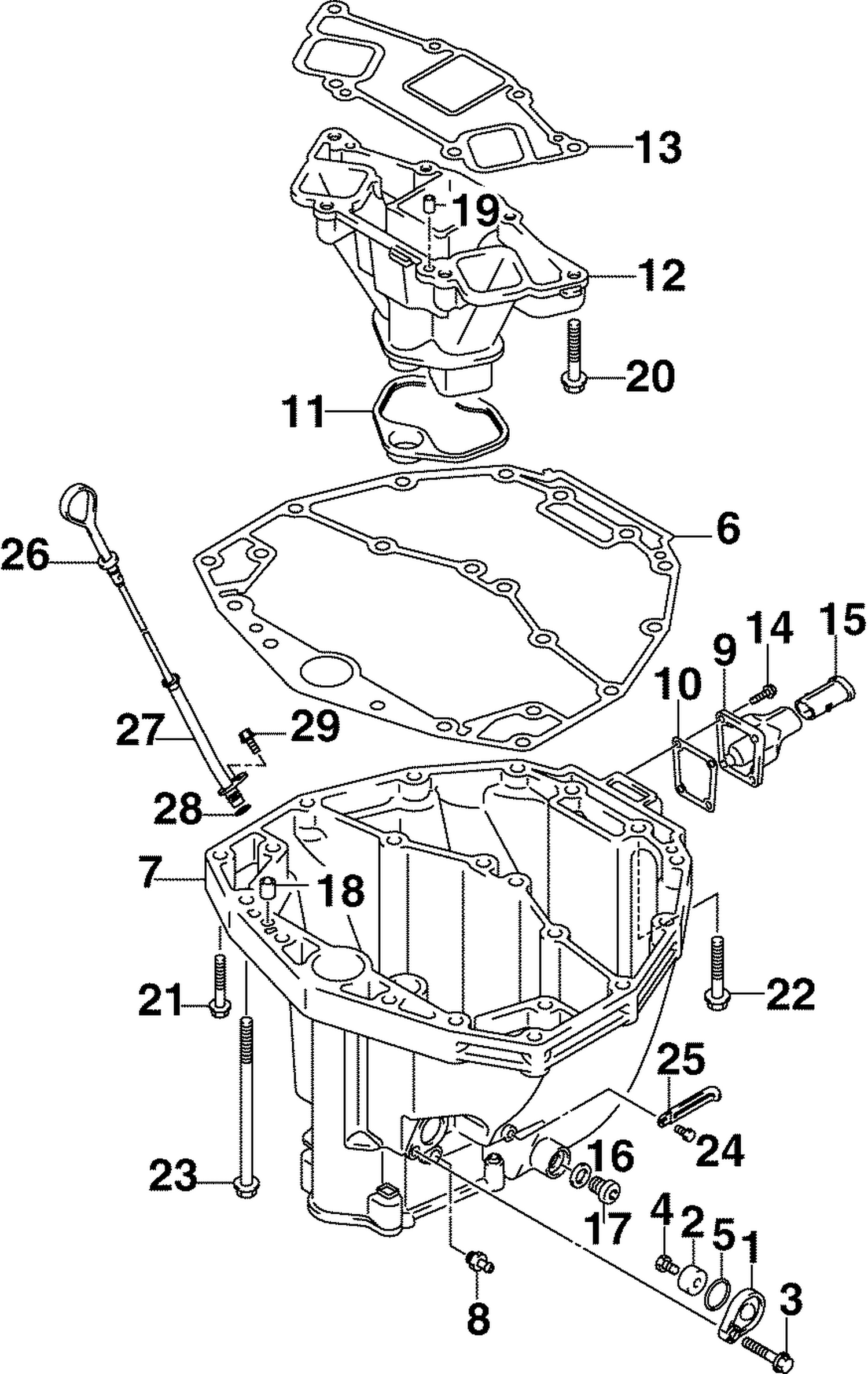

OIL PAN
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034867 | COVER, PROTECTION ANODE |
| 2 | 5034351 | ANODE |
| 3 | 5033472 | BOLT (8X25mm) |
| 5 | 5035305 | O RING |
| 7 | 5034879 | PAN, OIL |
| 8 | 5034885 | UNION, OIL PAN |
| 11 | 5034980 | SEAL, EXHAUST TUBE |
| 12 | 5034981 | TUBE, EXHAUST |
| 13 | 5034982 | GASKET, EXHAUST TUBE |
| 15 | 5034877 | PIPE, EXHAUST RELEASE |
| 16 | 5030465 | GASKET |
| 18 | 5030511 | PIN |
| 19 | 5030511 | PIN |
| 20 | 5035640 | BOLT, EXHAUST TUBE |
| 21 | 5035665 | BOLT (8X40) |
| 22 | 5034784 | BOLT, ENG SET NO,2 (L:50mm) |
| 23 | 5034786 | BOLT, ENG SET NO,3 (L:195mm) |
| 24 | 5030338 | BOLT |
| 25 | 5030135 | BRIDE |
| 26 | 5035034 | GAUGE, OIL LEVEL |
| 27 | 5035035 | GUIDE, OIL LEVEL GAUGE |
