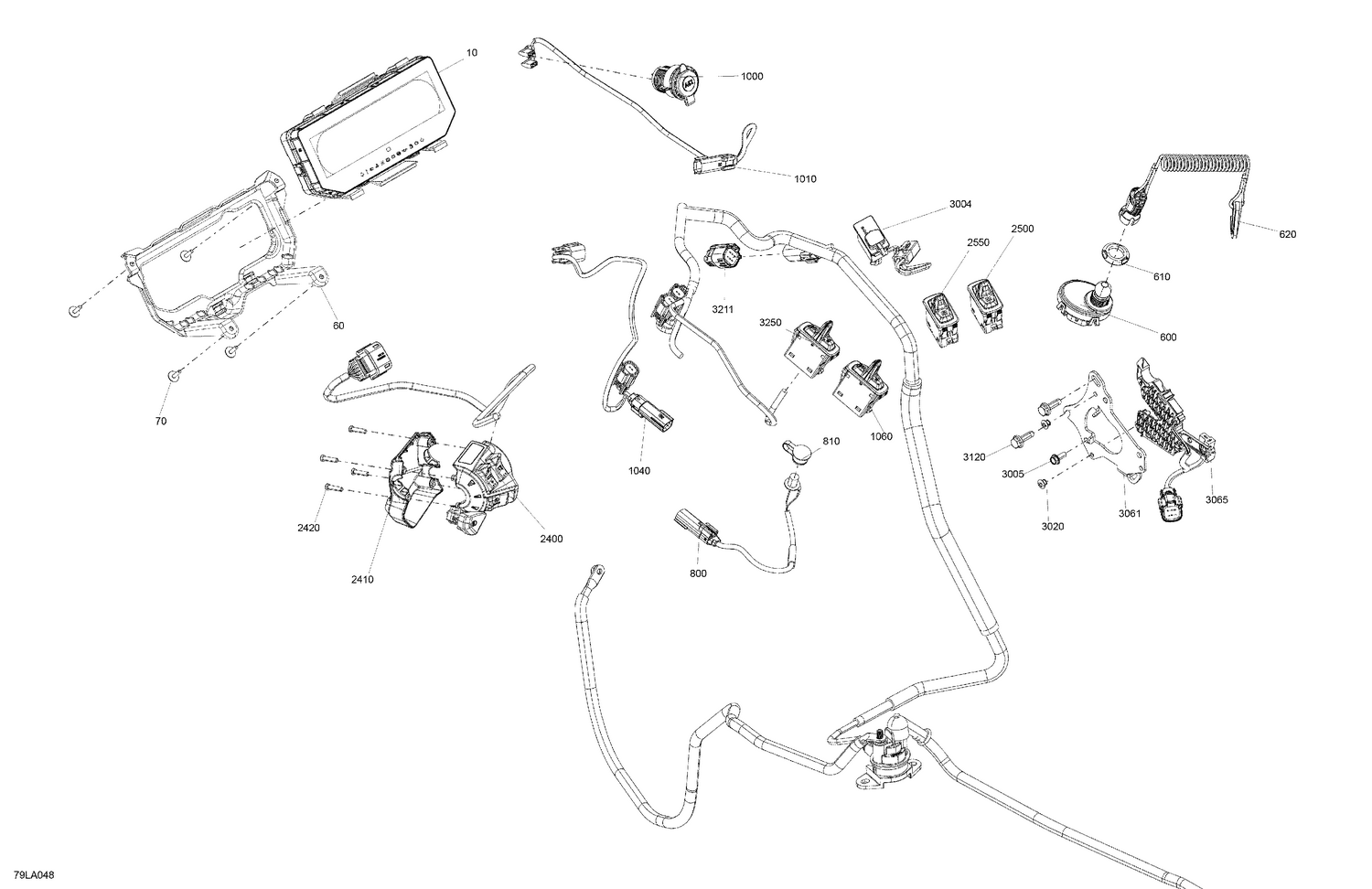

08- Electric - Upper Section
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178227 | Multifunction Gauge Full Size Color |
| 60 | 515178965 | Gauge Support |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1060 | 515179490 | Heated Seat Switch This part replaces 515178502. |
| 2400 | 515178969 | Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2500 | 515178462 | Switch Rocker Hand Warmer |
| 2550 | 515178968 | Rocker Switch |
| 3004 | 515178692 | Comfort Indicator Panel |
| 3005 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3020 | 390402200 | Pop Rivet 3/16 |
| 3061 | 515178940 | Stop Plate |
| 3065 | 515178942 | Reverse Wiring Harness |
| 3120 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 3211 | 515178202 | Connector Coil |
| 3250 | 515178501 | Rocket Switch |
