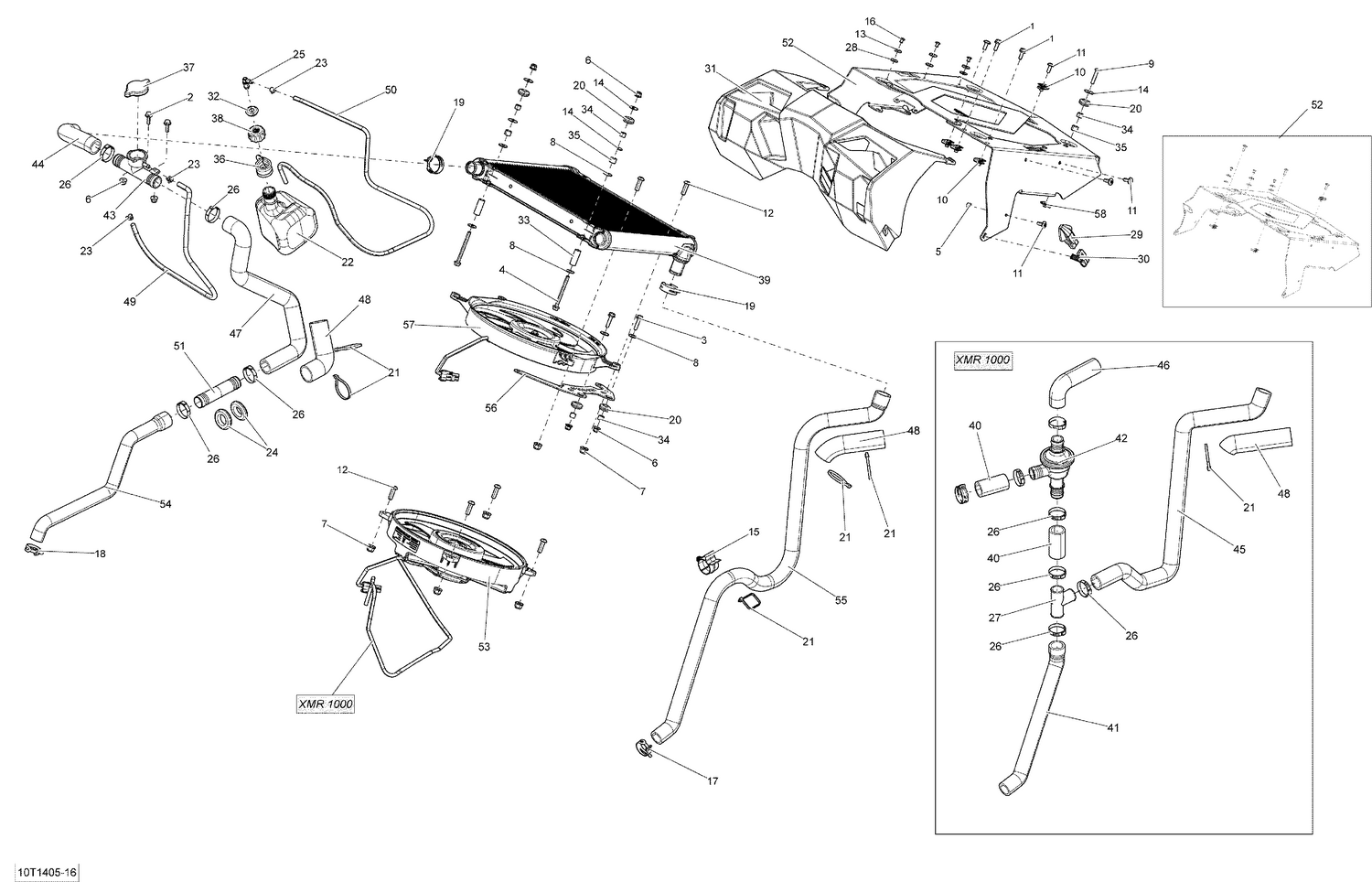

01- Cooling System
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 207667044 | Hex. Flange Screw M6 X 70 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 233261434 | Flange Elastic Nut M6 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 234062600 | Flat Washer M6, Stainless |
| 9 | 235563054 | Torx Screw M6 X 30 |
| 10 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 11 | 250000223 | Torx Screw M6 X 16 |
| 12 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 13 | 250200024 | Rubber Washer 5 mm |
| 14 | 250200040 | Flat Washer |
| 15 | 275500590 | Retainer |
| 16 | 293150102 | Rivet 3/16" |
| 17 | 293650108 | Norma Spring Clamp |
| 18 | XXX | Not Available As Spare Parts |
| 19 | 293650166 | Norma Spring Clamp |
| 20 | 293720062 | Grommet |
| 21 | 414115200 | Tie-Rap 180 mm |
| 22 | 709200624 | Coolant Tank Ass'y This part replaces 709200504. |
| 23 | 414554800 | Spring Clamp |
| 24 | 293720096 | Grommet |
| 25 | 414580700 | Male Connector |
| 26 | 509000162 | Gear Clamp |
| 27 | 509000219 | T-Fitting |
| 28 | 517124300 | Washer |
| 29 | 860200239 | Black Latch Kit |
| 30 | 517303981 | Panel Latch |
| 31 | 703100399 | Protection Cover Kit |
| 32 | 705003264 | Grommet |
| 33 | 705202499 | Bushing |
| 34 | 707000058 | Spacer |
| 35 | 708001129 | Bushing |
| 36 | 709200036 | Hose Anchor |
| 37 | 709200207 | Radiator Pressure Cap |
| 38 | 709200586 | Cap This part replaces 548872589. |
| 39 | 709200286 | Radiator |
| 40 | 709200299 | Hose |
| 41 | 709200392 | Hose |
| 42 | 709200406 | Thermostat |
| 43 | 709200422 | Filler Neck |
| 44 | 709200891 | Hose This part replaces 709200426. |
| 45 | 709200899 | Outlet Hose This part replaces 709200427. |
| 46 | 709200900 | Outlet Hose This part replaces 709200428. |
| 47 | 709200892 | Outlet Hose This part replaces 709200429. |
| 48 | 219704428 | Tubing 35 MM 1000MM Long |
| 49 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 50 | 219704410 | Polyurethane Hose 10000Mm Long |
| 51 | 709200448 | Nipple Tube 1" |
| 52 | 715002316 | ASS. SUPPORT - Call your local BRP dealership This part replaces 709200451. |
| 53 | 709200565 | Fan Ass'y This part replaces 709200458. |
| 54 | XXX | Not Available As Spare Parts |
| 55 | XXX | Not Available As Spare Parts |
| 56 | 709201349 | Aupport_Fan Ecoat This part replaces 709200495. |
| 57 | XXX | Not Available As Spare Parts |
