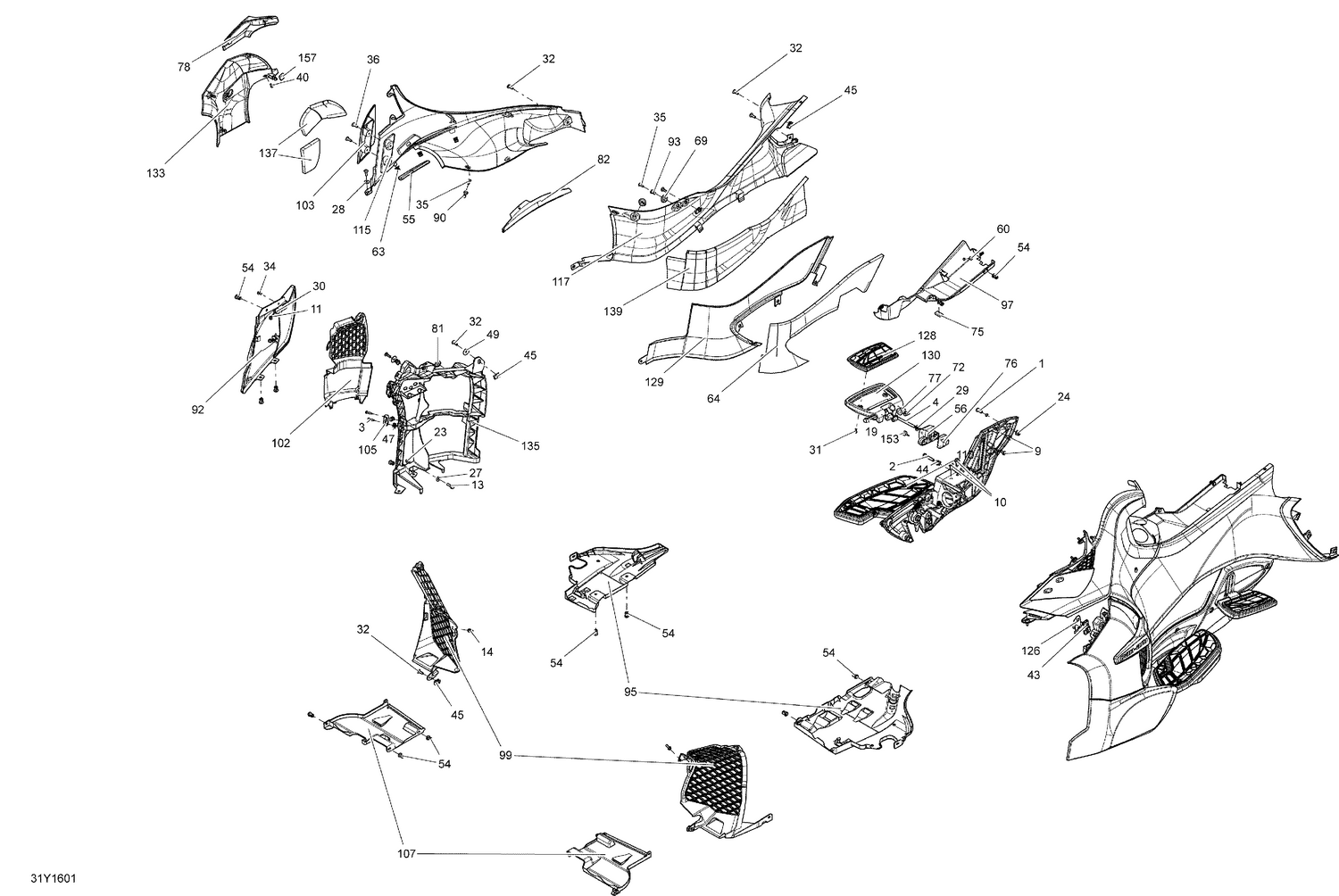

| Ref | Part Number | Description |
|---|
| 1 |
205482060 |
Socket Head Screw M8 X 20 |
| 2 |
205484560 |
Socket Screw M8 X 45 |
| 3 |
207152060 |
Hex. Screw M5 X 20 |
| 4 |
207189060 |
Hex. Screw M8 x 90 |
| 9 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 10 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 11 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 13 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 14 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 19 |
230681034 |
Hex. Flange Screw M8 X 110 |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 27 |
234062410 |
Flat Washer 6 mm |
| 28 |
234062670 |
Stainless Steel Flat Washer |
| 29 |
234281704 |
Spring Washer M8 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 31 |
250000099 |
Allen Plastite Screw #12 |
| 32 |
250000350 |
Torx Truss Screw M6 X 20 |
| 34 |
250000454 |
Torx Screw M6 X 12 |
| 35 |
250000459 |
Torx Screw, K50X16 |
| 36 |
250000488 |
Torx Truss Screw M6 X 20 |
| 40 |
250000759 |
Torx Truss Pt K40 X 16 |
| 43 |
250100069 |
Panel Nut M8 X 1.25 |
| 44 |
250100111 |
Panel Nut M8 |
| 45 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 49 |
250200029 |
Washer M6 |
| 54 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 55 |
219704368 |
Seal Tray 1000Mm Long |
| 56 |
705017285 |
Sliding Block This part replaces 705008518. |
| 60 |
293750044 |
Tie Rap Mount |
| 63 |
517302785 |
Edge Clip |
| 64 |
518324756 |
RH LOWER PANEL FOAM - Call your local BRP dealership |
| 64 |
518327490 |
LH Lower Panel Foam |
| 69 |
705000321 |
Oval Washer |
| 72 |
705002153 |
Bushing |
| 75 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 76 |
705003013 |
Adjuster Block |
| 77 |
705003018 |
Rubber Bushing |
| 81 |
705003264 |
Grommet |
| 82 |
705003385 |
LH Upper Side Panel Grille |
| 82 |
705003386 |
RH Upper Side Panel Grille |
| 90 |
705003746 |
Angled Knob |
| 92 |
705003759 |
LH Water Deflector Ass'y |
| 92 |
705003760 |
RH Water Deflector Ass'y |
| 93 |
705003842 |
Knob |
| 95 |
705004610 |
LH Deflector Pannel |
| 95 |
705004611 |
RH Deflector Pannel |
| 97 |
705004631 |
LH Tank Cover Ass'y |
| 97 |
705004632 |
RH Tank Cover Ass'y |
| 99 |
705004789 |
LH Radiatior Moulding |
| 99 |
705004790 |
RH Radiatior Moulding |
| 102 |
705004803 |
RH Side Grille |
| 102 |
705007307 |
LH Side Grille |
| 103 |
705004924 |
LH Lower Air Deflector |
| 103 |
705004925 |
RH Lower Air Deflector |
| 105 |
705005055 |
Grommet Ass'y |
| 107 |
705005438 |
LH Skid Plate |
| 107 |
705005439 |
RH Skid Plate |
| 110 |
705005728 |
RH Front Footboard Pad |
| 111 |
705005731 |
LH Front Footboard Pad |
| 112 |
705005861 |
Pivot Bracket |
| 115 |
705003953 |
Orbital Blue LH Upper Side Panel |
| 115 |
705003956 |
Orbital Blue RH Upper Side Panel |
| 115 |
705006168 |
White LH Upper Panel |
| 115 |
705006211 |
Bare, LH Upper Side Pan This part replaces 705008728. |
| 115 |
705006212 |
Bare, RH Up Side Pan This part replaces 705006167. |
| 115 |
705008730 |
PANEL_BODY UP R B-266 - Call your local BRP dealership |
| 115 |
705008731 |
Pearl Red RH Upper Panel |
| 117 |
705003989 |
Orbital Blue RH Lateral Panel |
| 117 |
705004517 |
Orbital Blue LH Lateral Panel |
| 117 |
705006177 |
White RH Upper Lateral Panel |
| 117 |
705006178 |
White LH Lateral Panel |
| 117 |
705006215 |
Bare, RH Panel This part replaces 705010201. |
| 117 |
705006216 |
Bare, LH Panel This part replaces 705008733. |
| 117 |
705008732 |
PANEL_BODY LH B-266 - Call your local BRP dealership |
| 117 |
705008734 |
PANEL_BODY RH B-266 - Call your local BRP dealership |
| 117 |
705008735 |
Pearl Red RH Lateral Panel |
| 117 |
705010200 |
PANEL_BODY LH B-393 - Call your local BRP dealership |
| 119 |
705006428 |
Latch Pin M12 X 30 |
| 126 |
705007375 |
Panel Support |
| 128 |
705007461 |
LH Rubber Rear Pad |
| 128 |
705007472 |
RH Rubber Rear Pad |
| 129 |
705006820 |
LH Lower Pannel |
| 129 |
705007736 |
RH Lower Pannel |
| 130 |
705008530 |
SILVER REAR FOOTREST - Call your local BRP dealership |
| 130 |
705011154 |
Chrome, Rear Footboard This part replaces 705008532. |
| 130 |
705011155 |
Carbon Black, Rear Footrests This part replaces 705008533. |
| 133 |
705008724 |
PANEL_BODY LH B-266 - Call your local BRP dealership |
| 133 |
705008725 |
PANEL_BODY RH B-266 - Call your local BRP dealership |
| 133 |
705008991 |
Bare, LH Side Panel This part replaces 705008726. |
| 133 |
705008992 |
Bare, RH Side Panel This part replaces 705009000. |
| 133 |
705008999 |
Vegas White Pearl, LH Side Panel |
| 133 |
705009017 |
Orbital Blue LH Side Panel |
| 133 |
705009018 |
Orbital Blue RH Side Panel |
| 133 |
705010194 |
PANEL_BODY LH B-393 - Call your local BRP dealership |
| 133 |
705010195 |
PANEL_BODY RH B-393 - Call your local BRP dealership |
| 135 |
705009063 |
LH Support |
| 135 |
705009064 |
RH Support |
| 137 |
705009311 |
Side Foam LH |
| 137 |
705009312 |
Side Foam RH |
| 139 |
705009313 |
LH FOAM - Call your local BRP dealership |
| 139 |
705009314 |
RH FOAM - Call your local BRP dealership |
| 153 |
708000759 |
Rubber Stopper |
