Parts Catalog

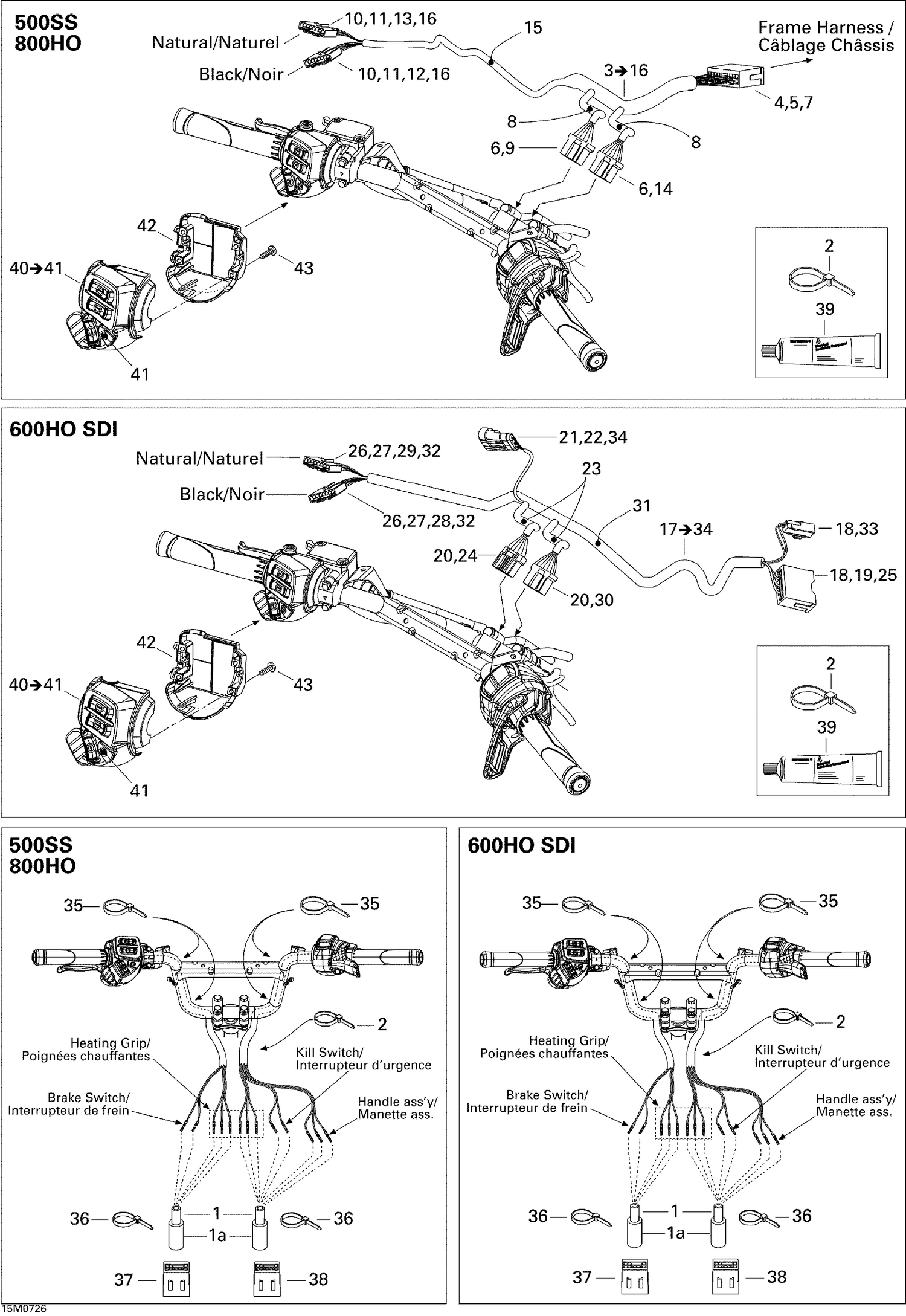

10- Steering Wiring Harness 500 SS, 800 HO PTEK

Parts (41)

Ref	Part Number	Description
1	409902000	Tubing 12 mm
1a	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
2	293750008	Tie Wrap 368 mm
4	515175232	Male Terminal
5	515175273	MALE TERMINAL - Call your local BRP dealership
6	515175231	Female Terminal
7	515175352	MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
8	219704407	Tubing 10 MM 1000MM Long
9	515175543	Female Terminal Housing, 6 Circuits
10	515175808	FEMALE TERMINAL - Call your local BRP dealership
11	515175809	FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership
12	515175807	FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership
13	515175810	FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
14	515175819	Female Terminal Housing, 8 Circuits
15	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
16	515175941	Female Terminal
17	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	XXX	Not Available As Spare Parts
20	XXX	Not Available As Spare Parts
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	XXX	Not Available As Spare Parts
32	XXX	Not Available As Spare Parts
33	XXX	Not Available As Spare Parts
34	XXX	Not Available As Spare Parts
35	414115200	Tie-Rap 180 mm
36	293750002	Tie Wrap 142 mm
37	515175662	Male Terminal Housing, 6 Circuits
38	515175817	Male Terminal Housing, 8 Circuits
39	219704453	Was 293550004 Dielectric Grease, 150 g
41	515176088	Start/RER Button
42	515175926	Switch Housing Plate
