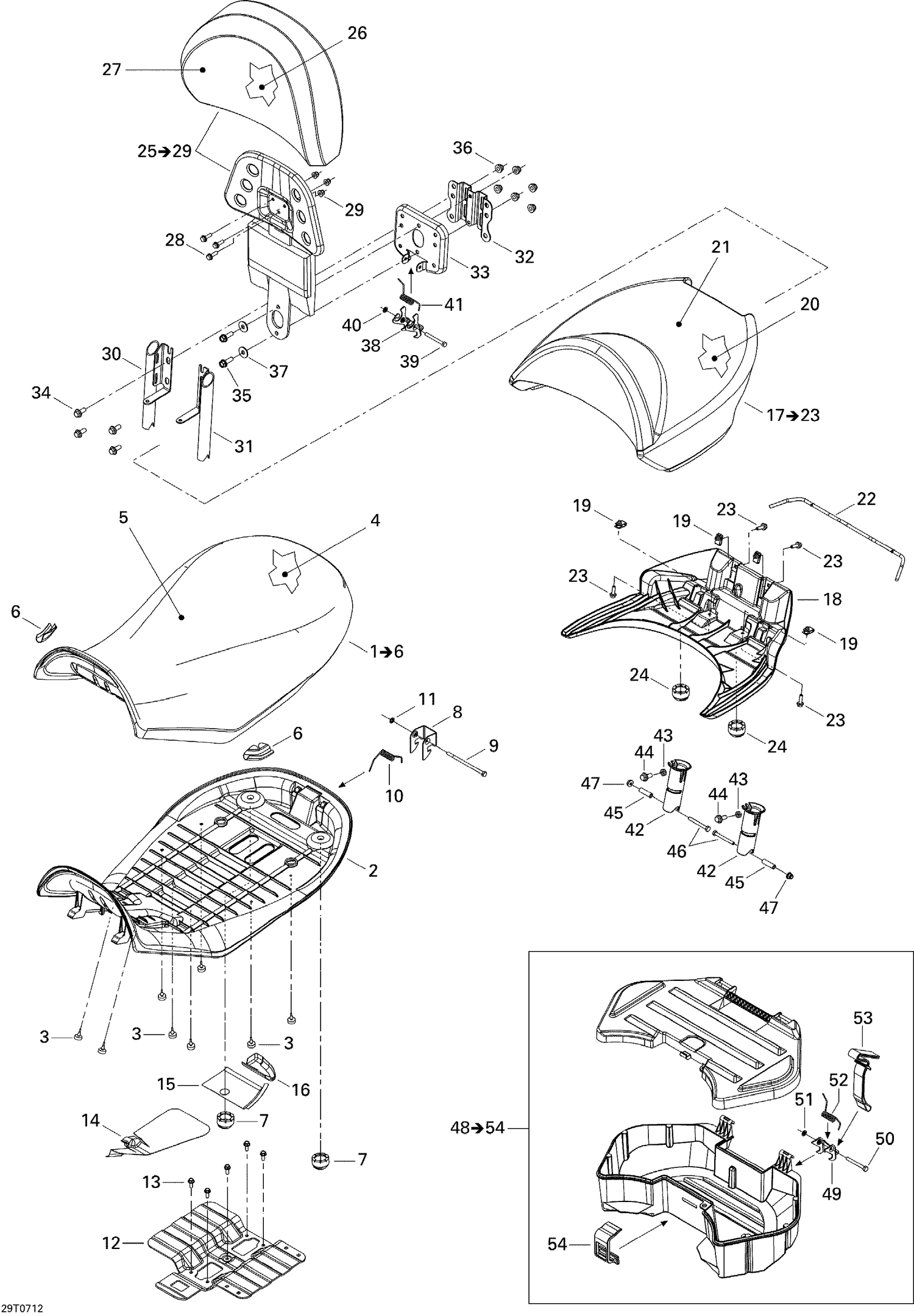

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Seat Base |
| 3 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 4 |
Not |
Available As Spare Part - Seat Foam |
| 5 |
708000504 |
SEAT COVER - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Seat Corner |
| 7 |
708000760 |
Bumper Rubber This part replaces 708000323. |
| 8 |
708000144 |
Latch, Black |
| 9 |
230061044 |
Hex. Screw M6 X 110 |
| 10 |
708000369 |
Spring |
| 11 |
732610072 |
Push Nut |
| 12 |
708000512 |
Seat Reinforcement |
| 13 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 14 |
708000956 |
REFLECTING SHEET - Call your local BRP dealership This part replaces 708000496. |
| 15 |
708000470 |
REFLECTING SHEET - Call your local BRP dealership |
| 16 |
708000957 |
HEAT SHIELD - Call your local BRP dealership This part replaces 708000487. |
| 18 |
Not |
Available As Spare Part - Seat Base |
| 19 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 |
Not |
Available As Spare Part - Seat Foam |
| 21 |
708000499 |
SEAT COVER - Call your local BRP dealership |
| 22 |
708000822 |
LATCH HANDLE - Call your local BRP dealership This part replaces 708000447. |
| 23 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 24 |
708000760 |
Bumper Rubber This part replaces 708000323. |
| 26 |
Not |
Available As Spare Part - Backrest Foam |
| 27 |
708000501 |
Backrest Cover |
| 28 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
708000439 |
LH BACKREST STEM - Call your local BRP dealership |
| 31 |
708000443 |
RH BACKREST STEM - Call your local BRP dealership |
| 32 |
708000855 |
REAR PLATE - Call your local BRP dealership This part replaces 708000445. |
| 33 |
708000446 |
FRONT PLATE - Call your local BRP dealership |
| 34 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 35 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 36 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 37 |
234082410 |
Flat Washer 8 mm |
| 38 |
708000448 |
LATCH - Call your local BRP dealership |
| 39 |
207065544 |
Hex. Screw M6 X 55 |
| 40 |
732610072 |
Push Nut |
| 41 |
708000369 |
Spring |
| 42 |
708000461 |
ROD GUIDE - Call your local BRP dealership |
| 43 |
232180600 |
Hex. Jam Nut M8 |
| 44 |
207182044 |
Hex. Screw M8 X 20 |
| 45 |
708000462 |
INNER BUSHING - Call your local BRP dealership |
| 46 |
207065044 |
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership |
| 47 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 49 |
708200066 |
LATCH - Call your local BRP dealership |
| 50 |
207065544 |
Hex. Screw M6 X 55 |
| 51 |
732610072 |
Push Nut |
| 52 |
708000369 |
Spring |
| 53 |
510004495 |
BELT - Call your local BRP dealership |
