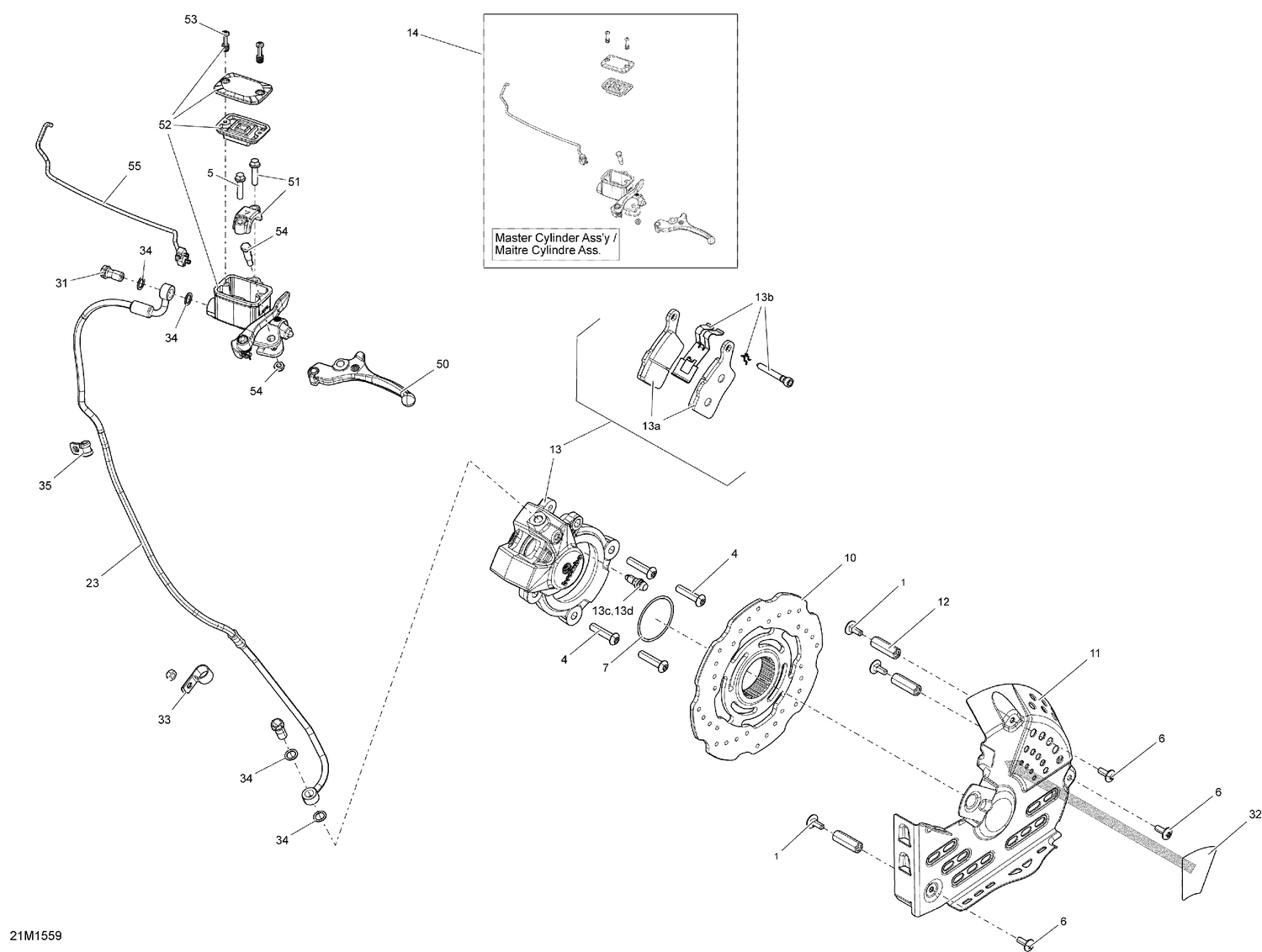

06- Brakes _21M1559
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 4 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. |
| 5 | 250000447 | Hex. Flange Screw M6 X 25 |
| 6 | 250000717 | Torx Head Screw M6 X 16 |
| 7 | 293300134 | O-Ring |
| 10 | 507032487 | Disc |
| 11 | 507032492 | Black Disk Protector |
| 12 | 507032497 | Threaded Tube |
| 13a | 507032473 | Brake Pads Kit |
| 13b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 13c | 507032475 | Bleeder |
| 13d | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 14 | 507032596 | Master Cylinder Ass. This part replaces 507032529. |
| 23 | 507032540 | Hose |
| 31 | 507032551 | Banjo Bolt |
| 32 | 516005525 | Warning Decal |
| 33 | 518321570 | Open Clamp |
| 34 | 705601628 | Copper Washer This part replaces 705600310. |
| 35 | 293650256 | Clamp This part replaces 705600459. |
| 50 | 507032476 | Lever With Parking Lock |
| 51 | 507032477 | Clamp And Screw Kit |
| 52 | 507032478 | Master Cylinder Reservoir Ass'y |
| 53 | 415129356 | Screw M4 X 20 |
| 54 | 415030000 | Pin Ass'y |
