Home / BRP / ELECTRIC / 1990 / 24 / 01- Cylinder And Cylinder Head

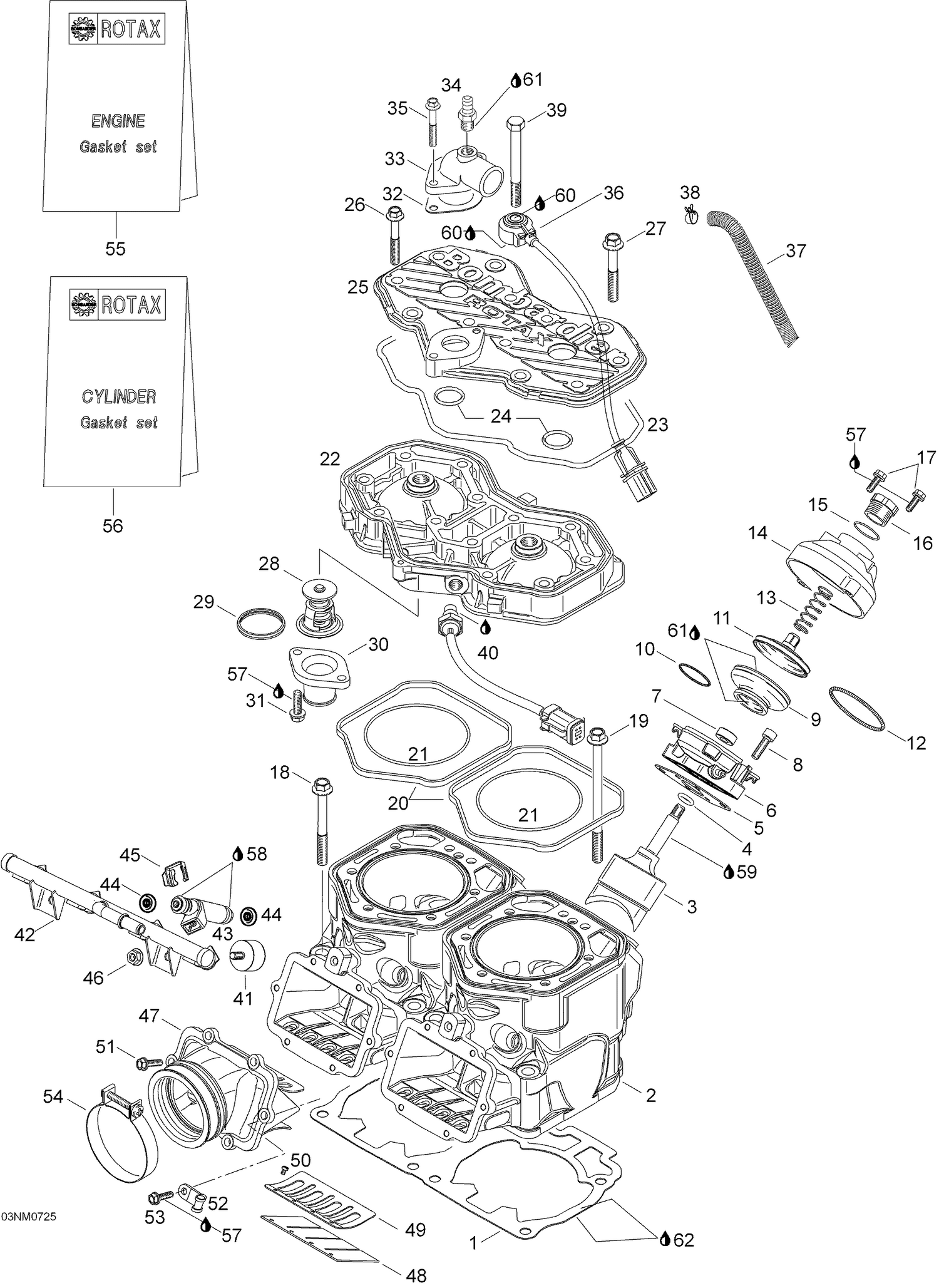

01- Cylinder And Cylinder Head

01- Cylinder And Cylinder Head

Parts (64)

RefPart NumberDescription
1 420431160 Double Gasket 0.5 mm This part replaces 420931893.
1 420431161 Base gasket 0.6 mm
1 420431162 Double Gasket 0.7 mm This part replaces 420931894.
1 420431163 Double Gasket 0.8 mm This part replaces 420931895.
2 420613944 CYLINDER H.O. SDI - Call your local BRP dealership
3 420854650 Exhaust valve
4 420430110 O-Ring
5 420931542 Gasket
6 420854454 VALVE HOUSING - Call your local BRP dealership
7 420950732 Oil Seal This part replaces 420950730.
8 205062544 Allen Screw M6 x 25 This part replaces 420840861.
9 420260729 Bellows
10 420838255 Spring clamp
11 420854449 Exhaust valve
12 420939281 Hose Spring This part replaces 420939280.
13 420239942 SPRING - Call your local BRP dealership
14 420911559 Valve Cover This part replaces 420911558.
15 420430220 O-ring
16 420241221 Adjuster screw
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420640524 Hex. screw M10 x 80
19 420640534 Hex. screw M10 x 120
20 420931590 Rubber ring
21 293300026 O-Ring This part replaces 420850540.
22 420923465 CYLINDER HEAD COVER - Call your local BRP dealership
23 420950320 O-ring
24 420430782 O-ring
25 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
26 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
27 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
28 420922519 Thermostat
29 420931272 Sealing ring
30 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
31 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
32 420850339 Gasket This part replaces 420850338.
33 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
34 420822340 Hose nipple
35 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
36 420664035 Knock sensor
37 420460010 TUBE - Call your local BRP dealership
38 420960890 CLIP - Call your local BRP dealership
39 420941221 HEX. SCREW M8 X 80 - Call your local BRP dealership
40 515177835 Capteur Temp. *Sensor-Temp. This part replaces 420664500.
41 420960065 STOPPER - Call your local BRP dealership
42 420874490 RAIL FUEL - Call your local BRP dealership
43 420874485 Fuel injector
44 420631220 O-Ring
45 420851800 CLIP - Call your local BRP dealership
46 420442172 NUT - Call your local BRP dealership
47 420867260 SOCKET CARBURETOR - Call your local BRP dealership
48 420924680 Pedal reed
49 420924695 Reed pedal stop
50 420941215 Screw M3 x 5
51 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
52 420851115 Clamp
53 420841550 Tapping Screw M5 X 22
54 420851065 Clamp
55 420889931 Engine Gasket Set This part replaces 420889922.
56 420889936 Cylinder Gasket Set This part replaces 420889926.
57 293800060 Loctite 243, 10ml
58 Not Available As Spare Part - Multipurpose grease
59 779119 NEEDS DESCRIPTION This part replaces 413802900.
60 293800081 Loctite 5910, 300 ml
61 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
