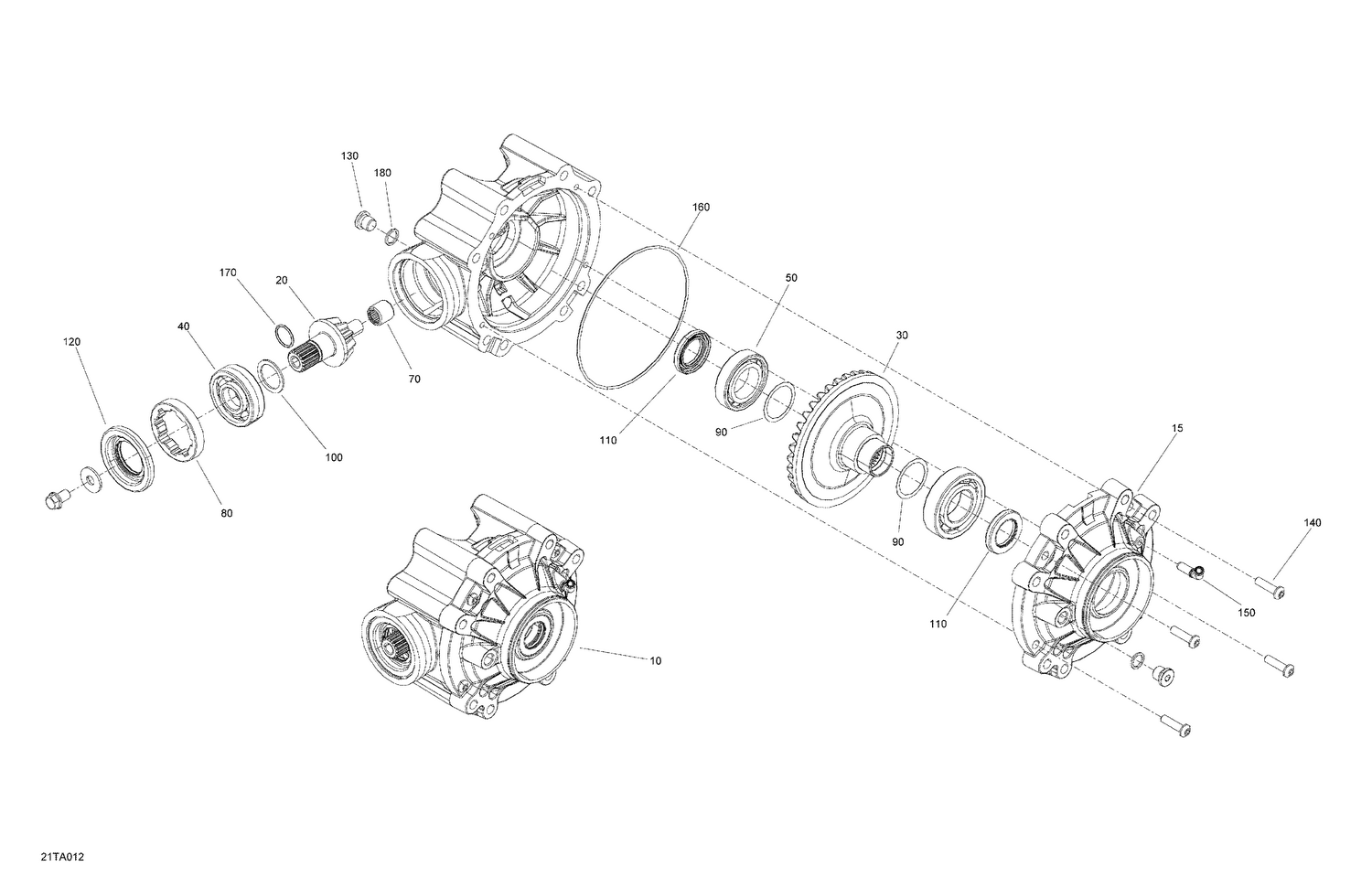

04- Drive - Rear Section - Final Drive Unit
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 705502389 | Rear Cover |
| 20 | 705502823 | Pinion 10 Teeth |
| 30 | 705502822 | Gear 36 Teeth |
| 40 | 705502055 | Ball Bearing |
| 50 | 705502737 | Ball Bearing This part replaces 705502056. |
| 70 | 705502058 | Needle Bearing |
| 80 | 705401603 | Nut This part replaces 705400661. |
| 90 | 705502060 | Differential Shim 0.02 mm |
| 100 | 705502061 | Pinion Gear Shim 1.67 mm |
| 110 | 705501996 | Oil Seal |
| 120 | 705402405 | Oil Seal |
| 130 | 705500504 | Fill Level Plug |
| 140 | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 150 | 705501584 | Breather Tube |
| 160 | 705502064 | Seal |
| 170 | 705502065 | O-Ring |
