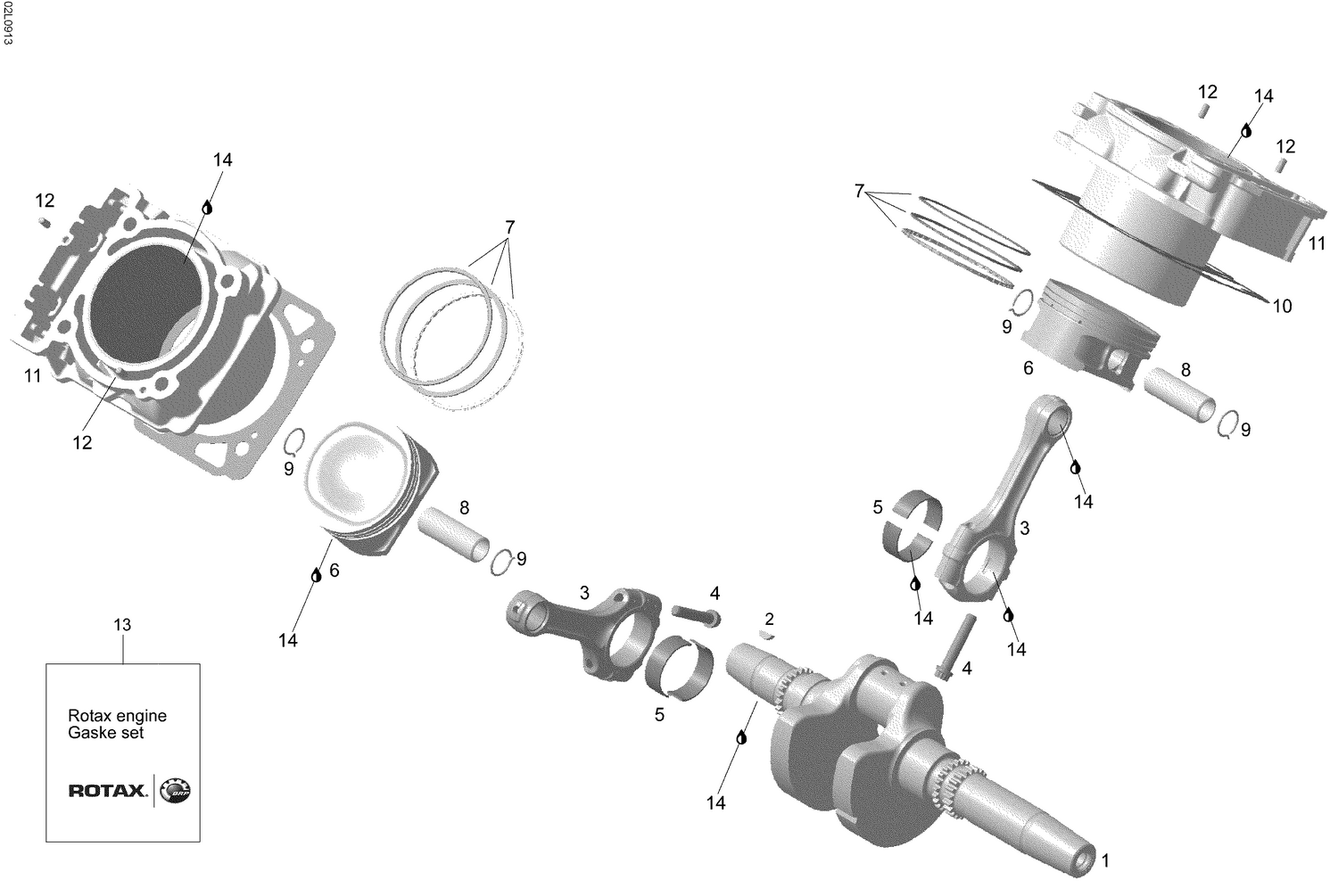

01- Cylinder And Crankshaft
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420819355 | CRANKSHAFT ASS'Y - Call your local BRP dealership |
| 2 | 420246570 | Woodruff key |
| 4 | 420641645 | Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 | 420233980 | Bearing half |
| 7 | 420296774 | Piston ring set |
| 7 | Not | Available As Spare Part - Piston ring set (oversize) |
| 8 | 420216270 | Piston pin |
| 9 | 420845106 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 12 | 420929650 | Drive pin |
| 13 | 420684133 | GASKET SET - Call your local BRP dealership |
