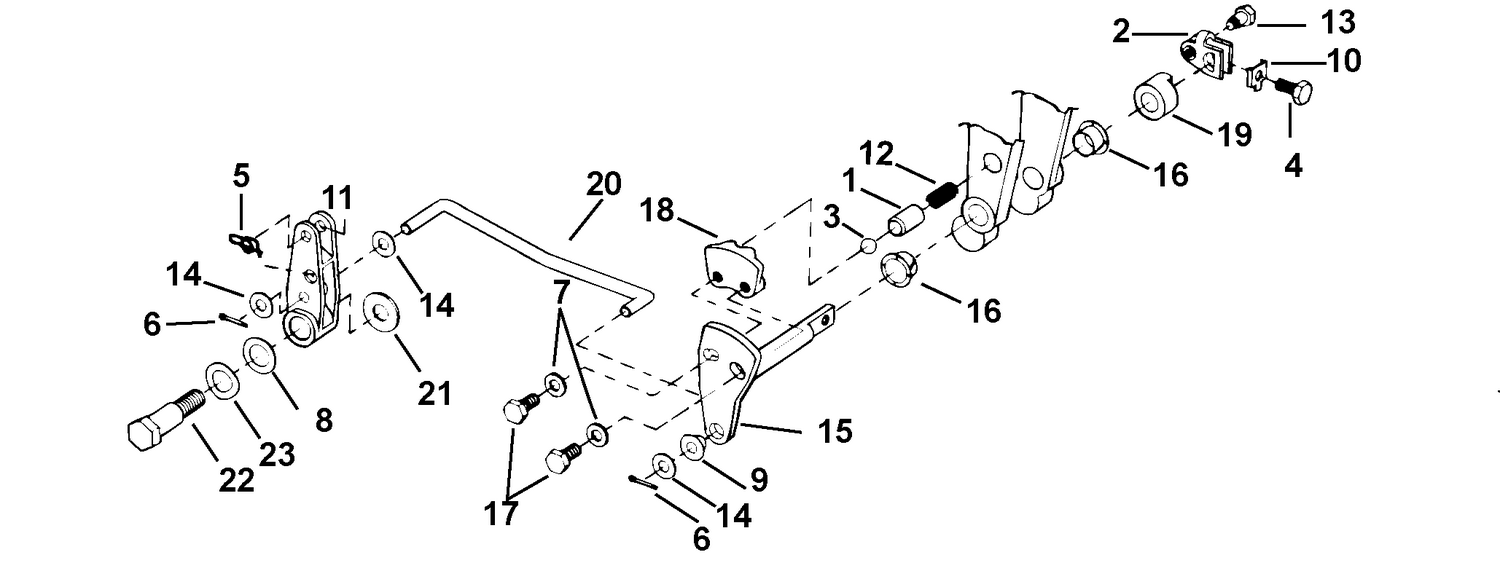

SHIFT LINKAGE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0334241 | GUIDE |
| 2 | 0332482 | LEVER-SHIFT |
| 3 | 0315164 | BALL, Shift detent |
| 4 | 0321532 | SCREW |
| 7 | 0329241 | RONDELLE |
| 8 | 0127386 | RONDELLE |
| 9 | 0334135 | BUSHING |
| 10 | 0319537 | CLIP |
| 11 | 0334058 | LEVER, Shift |
| 12 | 0334338 | SCREW, Lever to shift rod |
| 13 | 0332486 | SCREW |
| 15 | 0432014 | SHAFT Assy, Shift |
| 16 | 0312708 | BUSHING |
| 17 | 0304027 | VIS, arbre de commande de sens de marche |
| 18 | 0334248 | DETENT |
| 19 | 0334246 | SPACER |
| 20 | 0334057 | LINK |
| 21 | 0908398 | WASHER |
| 22 | 0331109 | SCREW, Lever |
